How to make a GPS tracker for monitoring your child

Author
Savva
Tashkent, UZ
1 day
--
1
Cover
Friends, today I will tell you about how to make a GPS tracker to monitor your children while they walk outside alone. My son often travels to karate competitions, and also walks alone with friends on the street, and now I can know exactly where he is within ten meters. The solution is based on the Russian development of the free open-source GPS server Traccar. Traccar supports more than 170 GPS protocols and more than 1500 models of GPS trackers.

What you'll need

Materials

Steps

1

Installing a server on Linux

To avoid repetition, I will provide a link to the server installation on CentOS, which was discussed in the previous guide:
Creating a TV server at home on Linux
The installation implies using a home server as hosting for the Traccar server.
2

Traccar server installation

Server installation is extremely simple.
In the terminal, go to the home folder:
1
cd ~
Download the Traccar distribution:
1
wget https://github.com/traccar/traccar/releases/download/v4.8/traccar-linux-64-4.8.zip
Extract the ZIP archive:
1
unzip traccar-linux-64-4.8.zip
Run the traccar.run file:
1
sudo ./traccar.run
The script will install all necessary files.
Next, let's create the traccar user:
1
sudo useradd -s /sbin/nologin -r -M -d /bin/false traccar
Then, open the file:
1
sudo nano /opt/traccar/conf/traccar.xml
Add the following lines to this file before the tag (this is needed to receive email notifications when a certain event occurs, for example, when your child leaves the so-called 'geo-fence'). This configuration is specified for my mail server; in your case, the data will be different.
1
<entry key = 'web.url'>https://trac.domain.ru/</entry> # Subdomain name for Tracrcar
2
<entry key='mail.smtp.host'>mail.domain.ru</entry> # Mail server host
3
<entry key='mail.smtp.port'>587</entry> # SMTP port
4
<entry key='mail.smtp.starttls.enable'>true</entry> # Specify STARTTLS encryption
5
<entry key='mail.smtp.from'>trac@domain.ru</entry> # Return email address
6
<entry key='mail.smtp.auth'>true</entry> # Specify that SMTP requires authentication
7
<entry key='mail.smtp.username'>trac@domain.ru</entry> # Email address
8
<entry key='mail.smtp.password'>Password</entry> # Email password
Also, from the file /opt/traccar/conf/default.xml:
1
sudo nano /opt/traccar/conf/default.xml
Remove this line:
1
<entry key='server.statistics'>https://www.traccar.org/analytics/</entry>
Start Traccar and set it to autostart when the Linux server boots:
1
sudo systemctl start traccar
2
sudo systemctl enable traccar
Next, open a browser and enter the address:
http://server-ip-address:8082/?locale=ru
Where server-ip-address is the server's local IP address
Log in to the system, default email: admin and password: admin
After logging into the system, immediately change the login and password.
Next, let's create the traccar.service.d folder:
1
sudo mkdir -m 755 /etc/systemd/system/traccar.service.d
In it, create the run-as-user.conf file:
1
sudo nano /etc/systemd/system/traccar.service.d/run-as-user.conf
And insert the following lines into it:
1
[Service]
2
User=traccar
3
Group=traccar
This is needed so that Traccar runs as the traccar user, not as root (superuser).
Save the file.
Restart the systemd manager configuration:
1
sudo systemctl daemon-reload
Restart Traccar:
1
sudo systemctl restart traccar
3

Installing Nginx server and configuring Proxy Pass for Traccar

The Nginx server is needed to proxy connections from port 80 of your server's subdomain to port 8082 of the Traccar server.
Let's install Nginx:
1
sudo yum install nginx
Create a configuration file on the Nginx server:
1
sudo nano /etc/nginx/conf.d/trac.domain.conf
And insert the following into it:
1
server {
2
listen 80;
3
server_name trac.domain.ru;
4
return 301 https://trac.domain.ru$request_uri;
5
}
6


7
server {
8
listen 443 ssl;
9
ssl_certificate /etc/letsencrypt/live/trac.domain.ru/fullchain.pem;
10
ssl_certificate_key /etc/letsencrypt/live/trac.domain.ru/privkey.pem;
11


12
server_name trac.domain.ru;
13


14
client_max_body_size 10M;
15
client_body_buffer_size 128k;
16


17
location / {
18
proxy_set_header Host $host;
19
proxy_set_header X-Forwarded-Host $host;
20
proxy_set_header X-Forwarded-Server $host;
21
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
22
proxy_http_version 1.1;
23
proxy_set_header Upgrade $http_upgrade;
24
proxy_set_header Connection "upgrade";
25


26
proxy_redirect http://127.0.0.1:8082/ /;
27
proxy_redirect ws://127.0.0.1:8082/api/socket /api/socket;
28
proxy_pass http://127.0.0.1:8082/;
29
proxy_read_timeout 86400s;
30
proxy_send_timeout 86400s;
31
allow all;
32
}
33


34
}
Next, add the subdomain to the hosts file:
1
sudo nano /etc/hosts
And add on a new line:
1
127.0.0.1 trac.domain.ru
Save the file and restart Nginx:
1
sudo systemctl restart nginx
Let's install Certbot from Letsencrypt:
1
sudo yum install epel-release
2
sudo yum install certbot python2-certbot-apache mod_ssl
Next, obtain an encryption certificate from Letsencrypt:
1
sudo cerbot --nginx
Follow the installer's instructions.
After the certificate installation is complete, restart Nginx:
1
sudo systemctl restart nginx
Now you will be able to access Traccar at the address:
https://trac.domain.ru?locale=ru
4

Installing Traccar Client on a child's smartphone

Installing Traccar Client on a child's smartphone
Installing Traccar Client on a child's smartphone

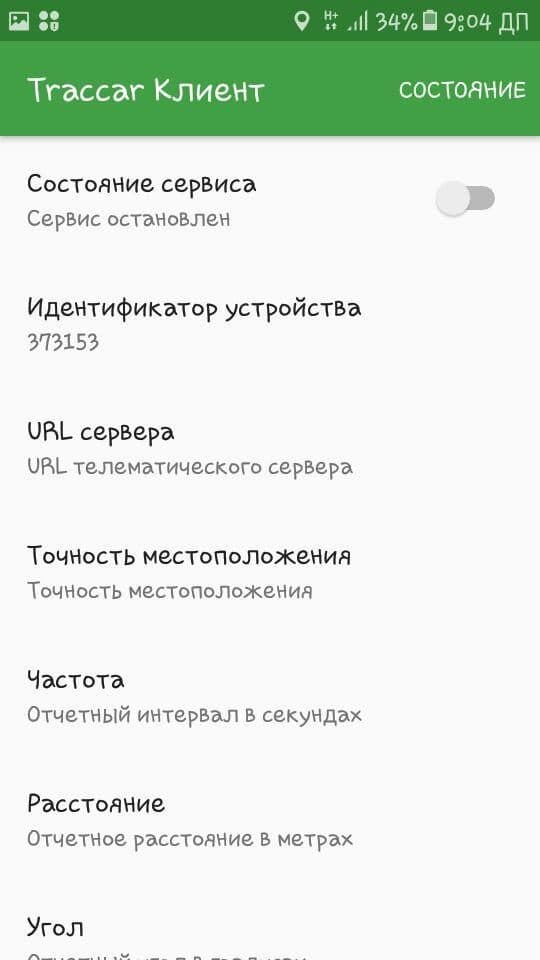

Install the Traccar Client application on your child's smartphone.
Enable geolocation and grant Traccar Client permission to use geolocation data.
Open the application and in the 'Server URL' field, enter the Traccar server address:
https://trac.domain.ru
In the 'Frequency' field, set the data update frequency in seconds.
Next, in the 'Service Status' field, enable the client and remember the 'Device Identifier' in the field below.
Go to our server in a browser
https://trac.domain.ru?locale=ru

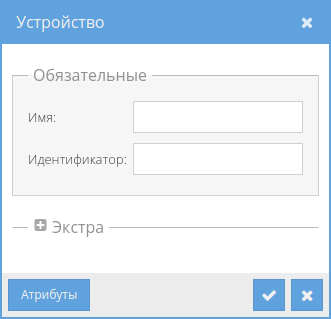

Log into the system, click the plus icon in the upper left corner, and the following window will appear:
Enter your child's name and the device identifier from the Android application into it.
Click the confirmation checkmark, and from this moment, you will see all your child's movements outdoors.

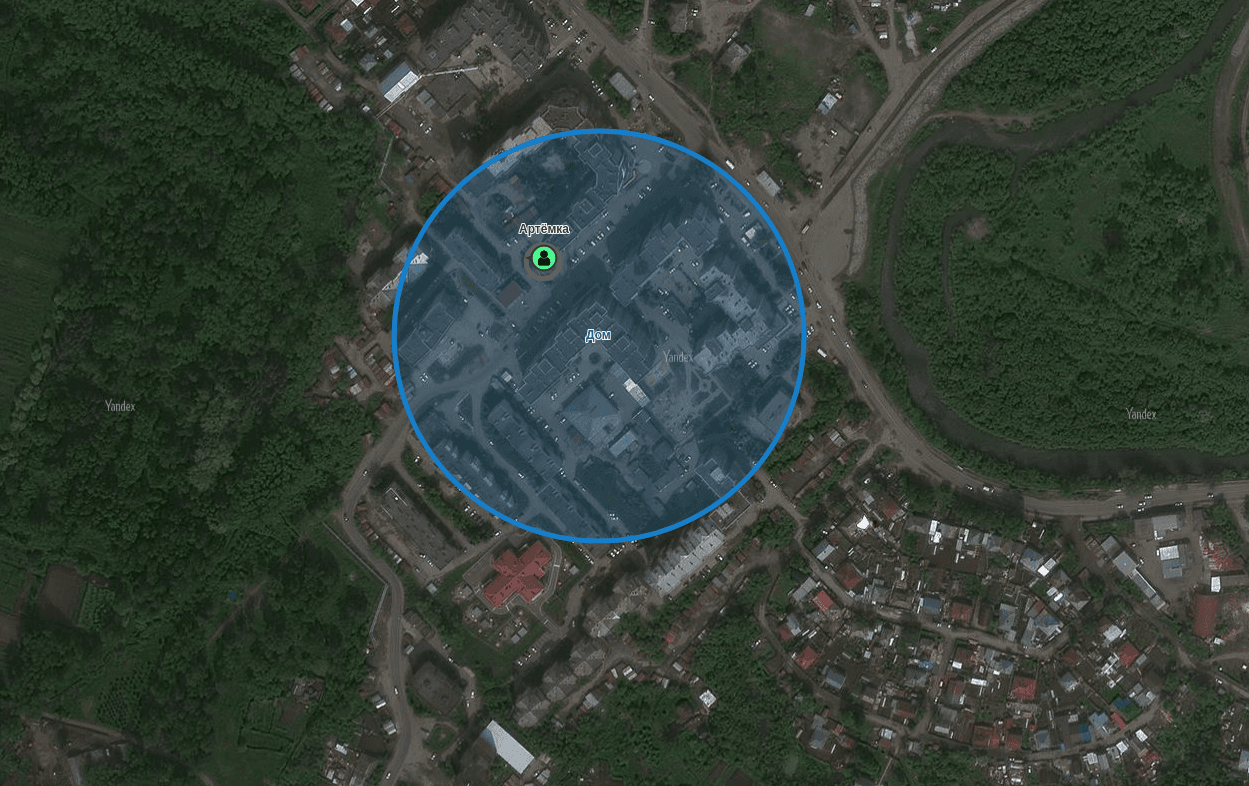

The system also offers options to set up a so-called 'geo-fence' so that you receive email notifications if your child goes too far from home.
To monitor your child using a smartphone, download the application Traccar Manager and log into your account with your username and password.
May your children always be under supervision!
