Wall Mount for Makita DC18RC Charger

<h3>Wall Mount for Makita DC18RC Charger</h3>

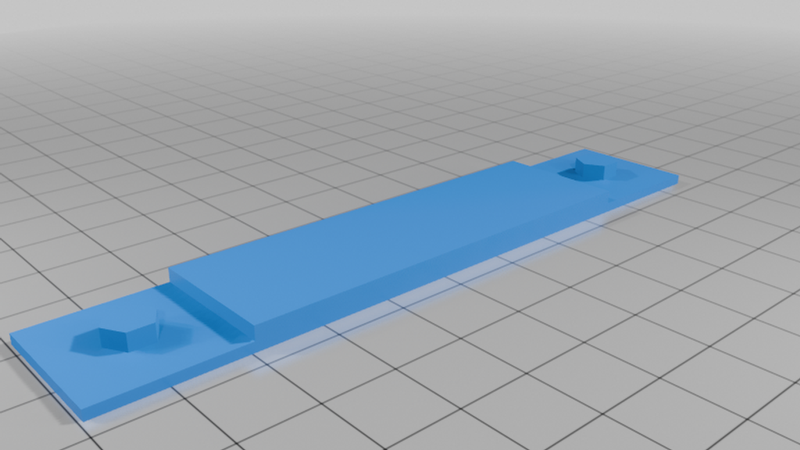

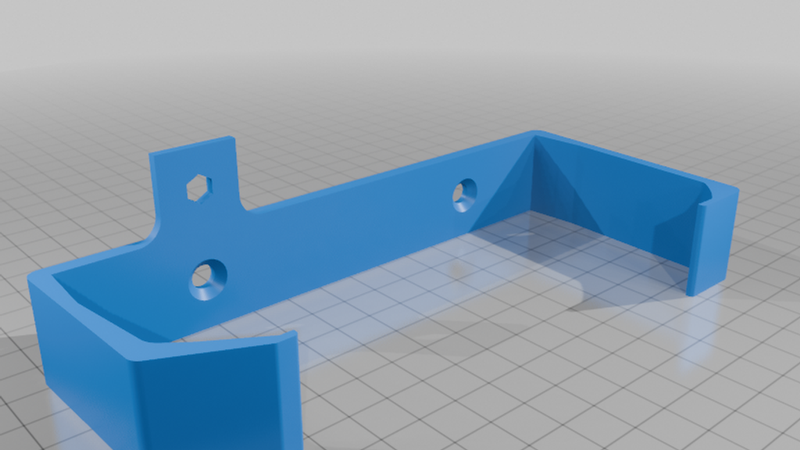

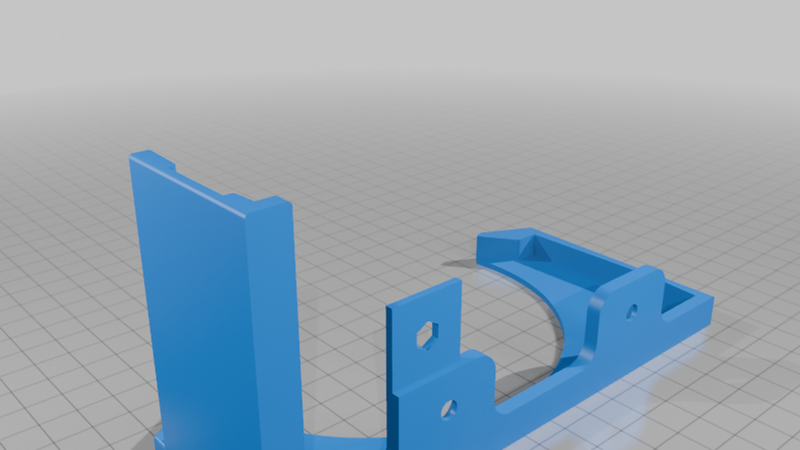

A three-part wall mount for the Makita DC18RC charger.

<h4>Printing</h4>

• Print the parts in the orientation provided in the STL files.
• Supports are recommended for the holes.

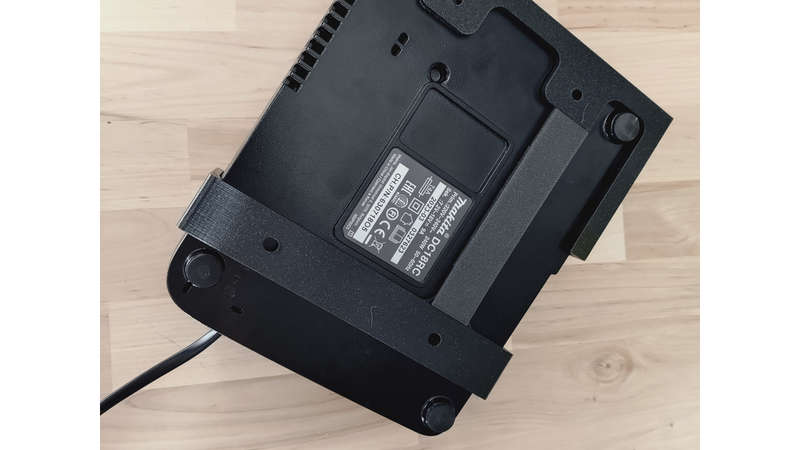

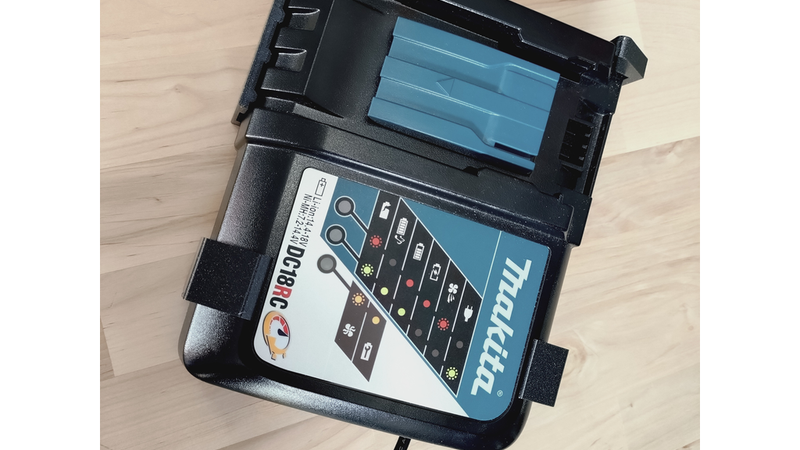

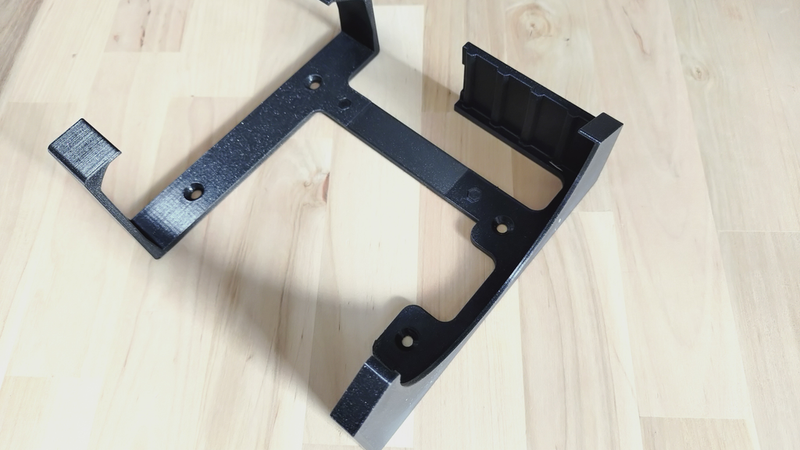

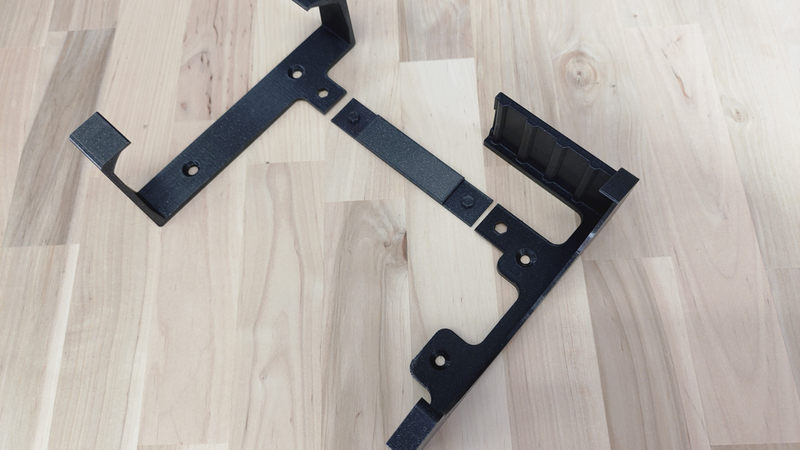

• The parts in the photos were printed in PETG with 25% infill.
• If you regularly remove and replace the charger, PC or ABS is recommended.

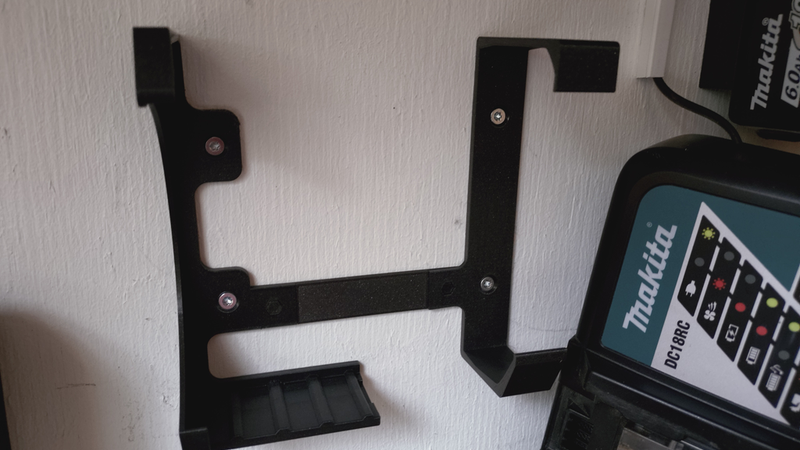

<h4>Installation</h4>

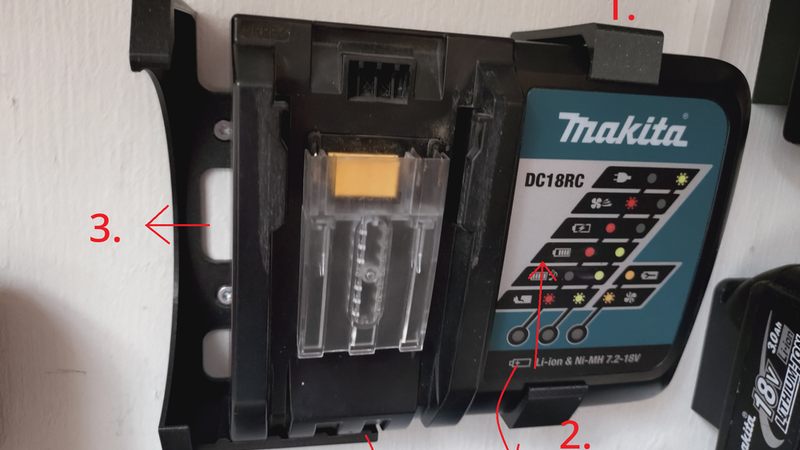

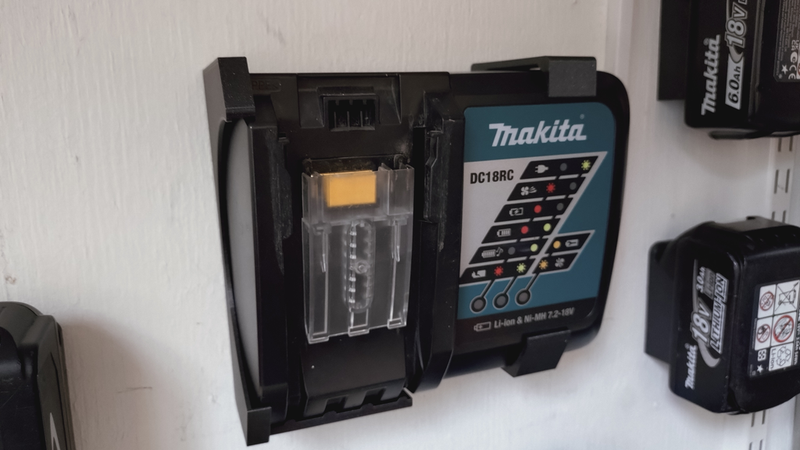

• Follow the numbers and arrows in the photo.
• Push the charger into support (1) while gently turning support (2). Move slowly to avoid breaking the printed part.
• Once the charger rests on supports (1) and (2), push it into position (3) while gently guiding it into the locking grooves (4).
• The rubber feet may require you to gently pull the charger outward while fitting it into place.


<br>

<h3>Disclaimer</h3>

This is an independent 3D printable accessory and is not affiliated with, endorsed by, or sponsored by Makita.

<br>

<h3>Note</h3>

The same version of this model is also available on Printables. For documentation, printing instructions, updates, and the changelog, visit: https://www.printables.com/model/1860049-wall-mount-for-makita-dc18rc-charger
