PTZ IP camera pole mount

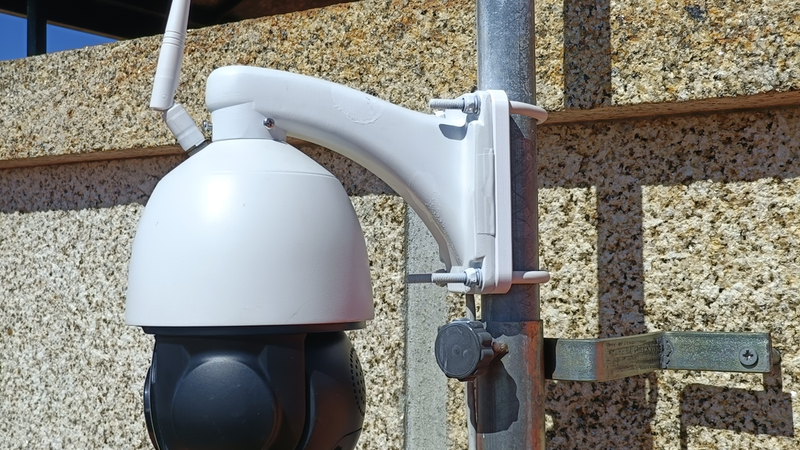

This is a bracket for mounting a PTZ IP camera to a 35 mm diameter pole. I already had a pole for a TV antenna so this was the easiest way I found to mount this camera. It should be compatible with multiple cameras. I know it is compatible with the Anran AR-92F and the Jennov P86HT55.

The holes on the bracket are 8 mm in diameter, which is slightly larger than the holes on the camera mount to provide some wiggle room. The hole spacing, measured center-to-center, is 62 × 96 mm.

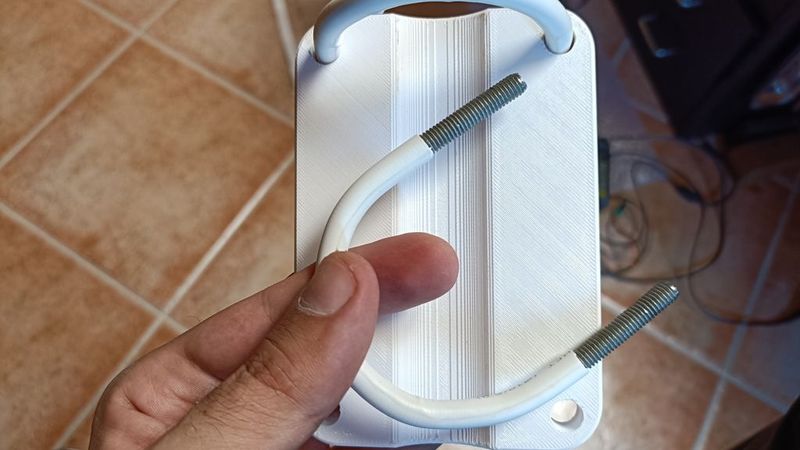

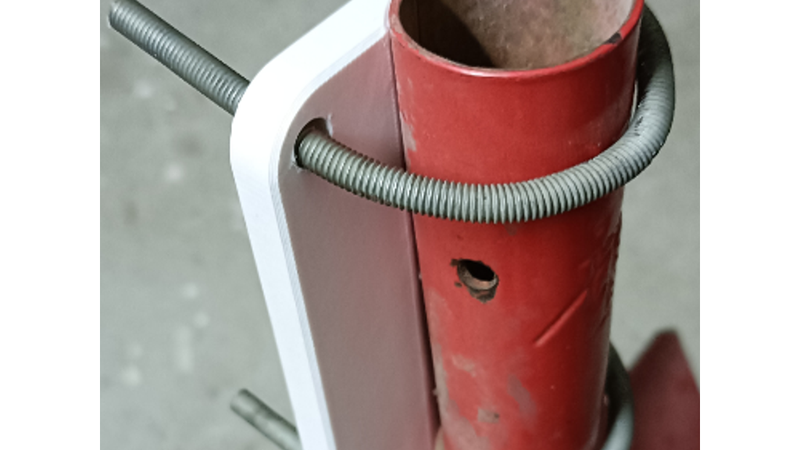

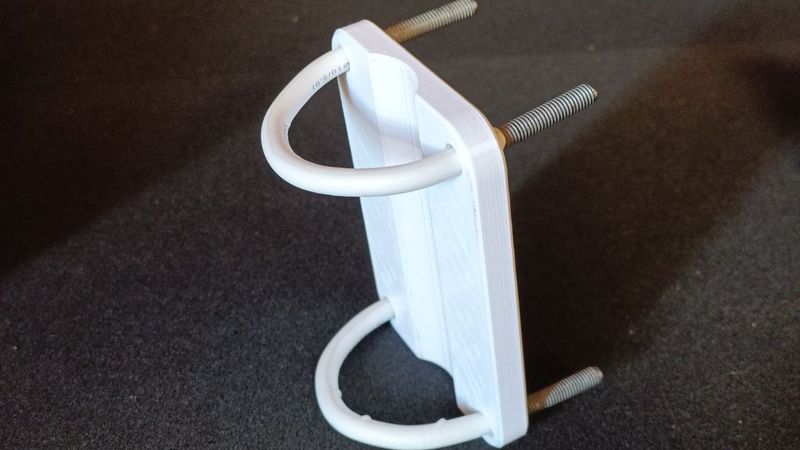

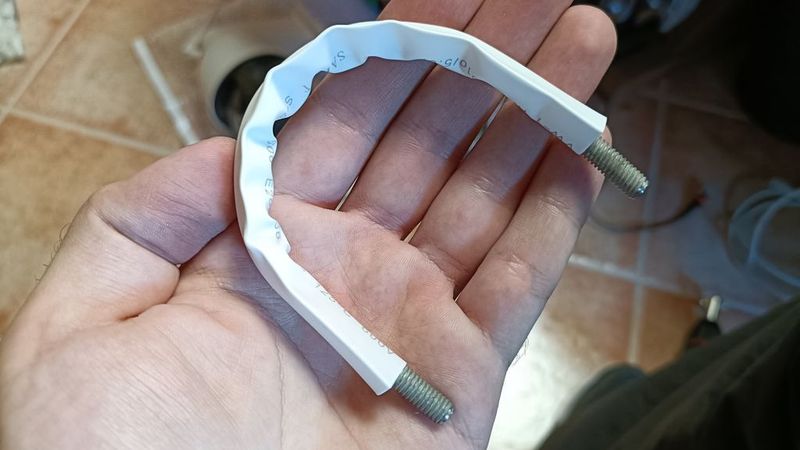

To mount the bracket to the pole, I used two pieces of M6 threaded rod (all-thread) and bent them into a U shape. I then used two pieces of white 10 mm heat-shrink tubing, such as https://s.click.aliexpress.com/e/_c3oq7utF or https://amzn.to/4xK2BBT (affiliate links), to cover the threaded sections around the bends. Besides protecting the pole from the threads, the heat-shrink tubing also provides additional grip and helps keep the bracket securely in place.

Found this 3D file useful?

You can support my work by making a purchase through one of the affiliate links below. You can buy anything you like from the store after opening the link, it doesn't have to be the products linked here. I receive a small commission from eligible purchases, at no extra cost to you. Thank you!

Amazon: https://amzn.to/4ym4rce

AliExpress: https://s.click.aliexpress.com/e/_c4SxCwcl

This 3MF was created with the Elegoo Centauri Carbon 2 profile in Elegoo Slicer (OrcaSlicer). If you're using a different printer or slicer, import the 3MF as a model only to avoid incompatible printer settings.
