Low-Cost AI Navigation Glasses — v0.4 Enclosure Design Meshes (Reference)

Enclosure design meshes for an open-source, low-cost AI navigation glasses research prototype for blind and low-vision users. Bilingual build guide on GitHub. Not a medical device.

What this is

Design meshes for the enclosure of an open-source AI navigation glasses research prototype — a low-cost assistive device that turns machine uncertainty into action signals a low-vision user can act on. Self-made cost: under US$20 in China, under US$35 in the US. So far: build workshops in 3 residential communities in China; 20 assembled units plus parts kits donated so communities can keep building independently.

Full project (bilingual Chinese/English build guide, bill of materials, assembly card, troubleshooting, safety note):

https://github.com/DresdenGman/AIGlasses_for_navigation

Also on OER Commons and MERLOT as a bilingual open build guide for assistive makers.

IMPORTANT — read before downloading

These two STL files are design-concept meshes for reference, NOT production-approved 3D-printing files. From the project repository (design/v0.4/README.md):

• The meshes are exported in the source model's raw coordinates; no unit conversion to millimeters is asserted. Do not assume the STL carries millimeters.
• Geometry checks in the repo do not identify the actual battery, PCB, cables, or connectors, and do not prove parts can be inserted and fastened.
• Before fabrication: calibrate source units from a measured feature, name and measure your components, define wall thickness/clearance/fastening, and validate a physical prototype.

Safety and scope

• Research prototype only. Not a medical device. Not clinically validated.
• Does not replace a white cane, guide dog, orientation-and-mobility training, or personal judgment.
• The device follows a Low-Confidence Behavior Code: it must say "I don't know" instead of inventing navigation instructions when uncertain.

Images

• Cover photo: a real in-person community session photo (China).

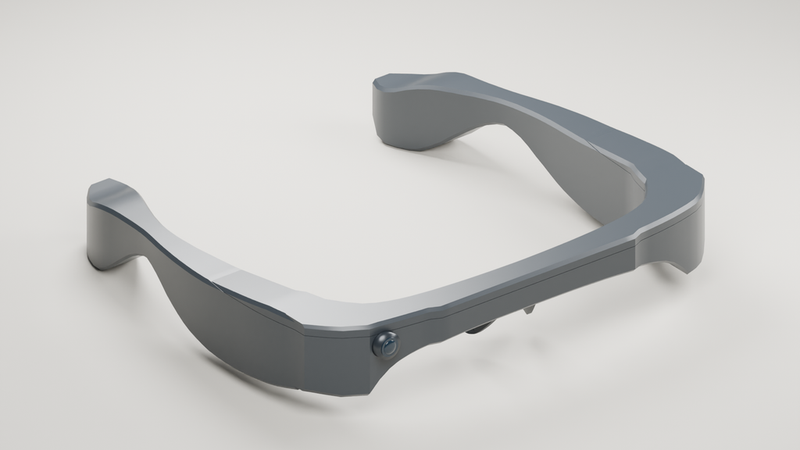

• Second image: a Blender Cycles render of the v0.4 exterior design — a visualization, not a photograph of a printed part.

Files

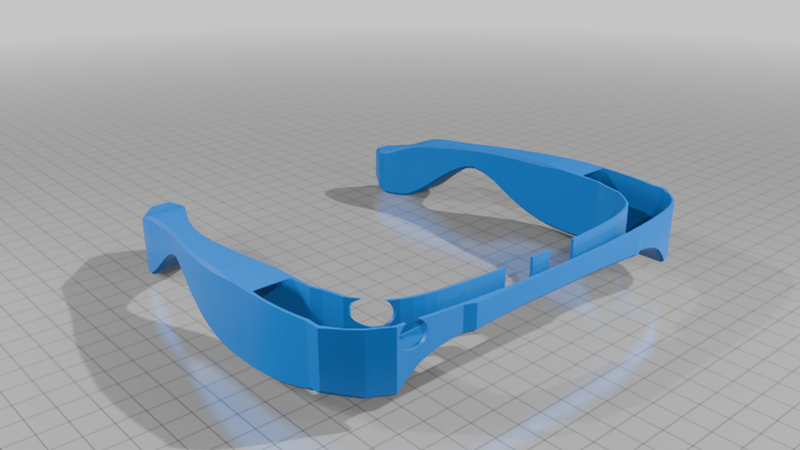

• housing_upper.stl — upper shell concept mesh

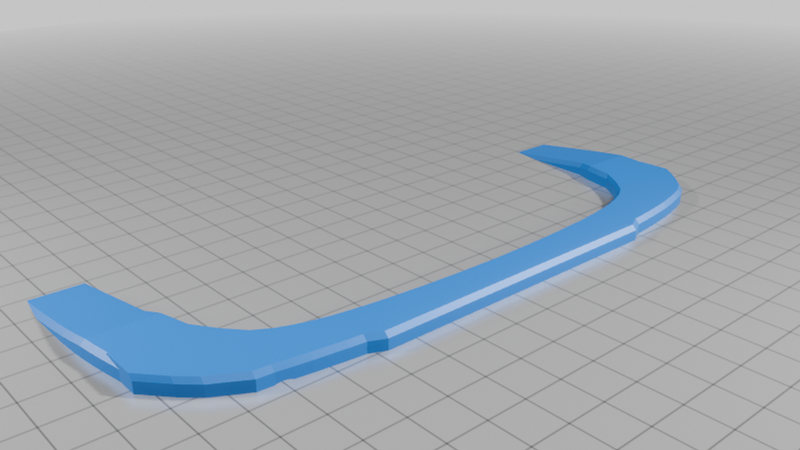

• housing_lower.stl — lower shell concept mesh

License

MIT (same as the project repository).
