Modular Guitar Wall Mount

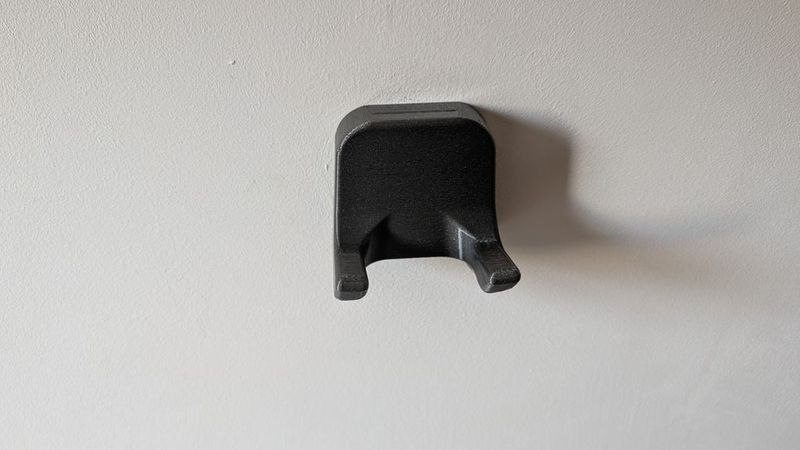

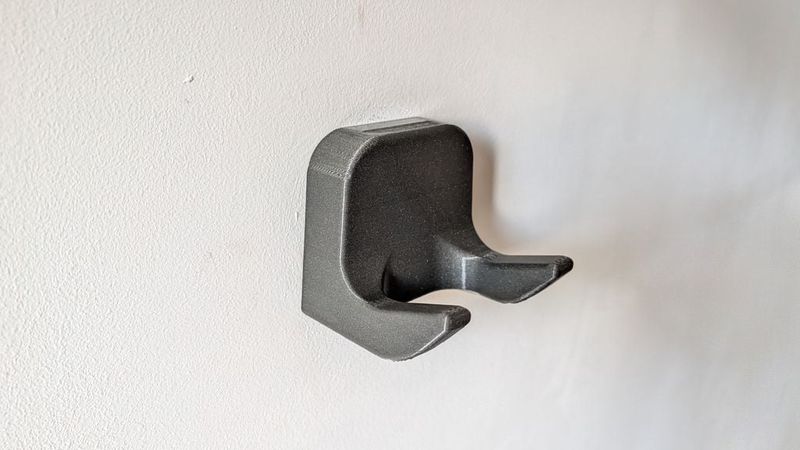

A strong and sleek wall mount for your guitar. The design consists of two parts: a wall mounting plate and the guitar hanger itself. They slide together perfectly using a dovetail joint, which completely hides the mounting screws for a very clean look on your wall.

Two Mounting Plate Variations Included:

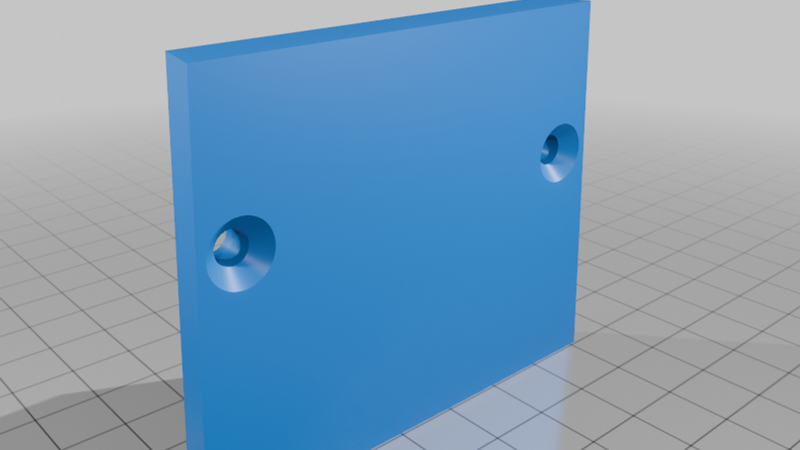

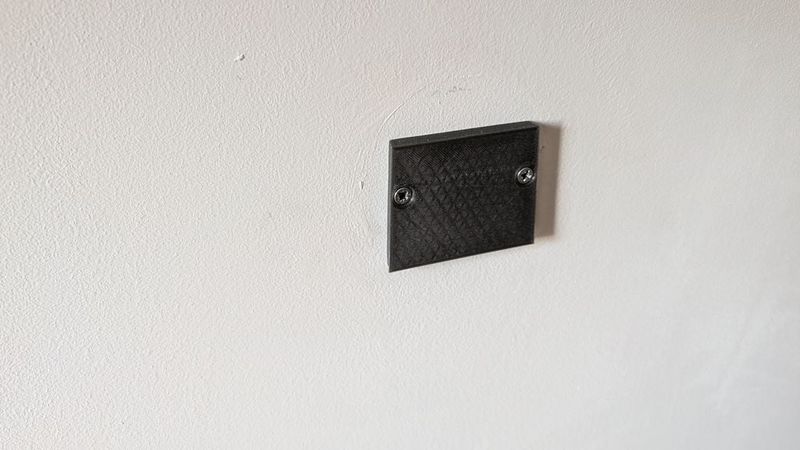

* 2-Hole Plate (Horizontal - 60mm): Features a 60 mm horizontal hole spacing. This is a very common standard size for small wall light fixtures and European junction boxes. It allows you to easily mount the hanger on existing holes without drilling new ones!

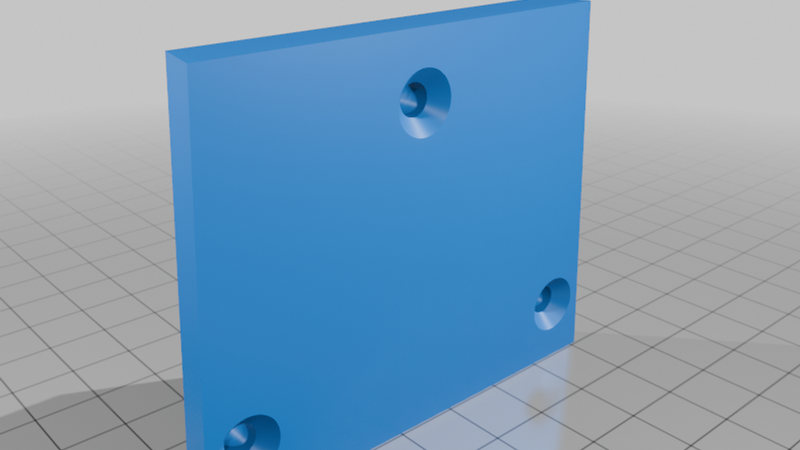

* 3-Hole Plate (Triangle): Features three screw holes in a triangular pattern. Highly recommended if you are drilling fresh holes. The triangle formation is much better at catching the rotational moment/torque of a heavy instrument.

Print Settings & Recommendations

Since this part will hold an expensive instrument, do not skimp on strength!

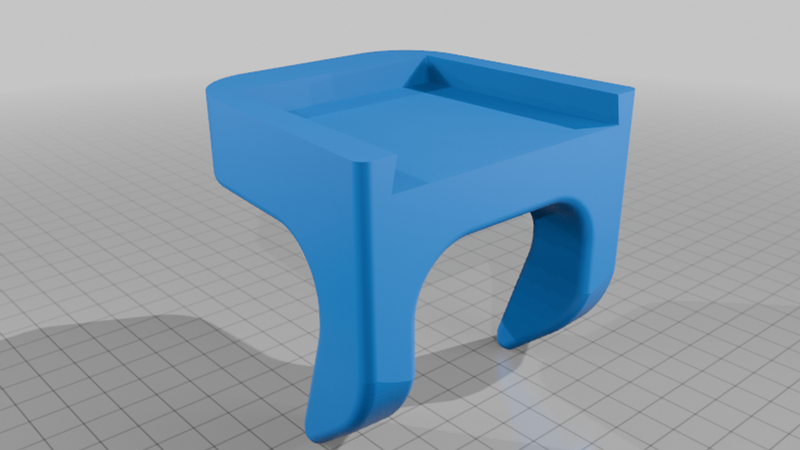

* Orientation: Print the hanger flat on its back so the two prongs point straight up into the air. Print the wall plate flat on its back.

* Walls / Perimeters: 4 to 6 walls (Perimeters are more important for strength than infill).

* Infill: 30% - 50% Gyroid or Cubic.

* Layer Height: 0.12 mm for cleaner finish on the curves.

* Material: PETG and ABS is recommended, but PLA is also an option, mine is printed out of PLA.

* Supports: Yes - Tree

Assembly Instructions

1. Secure the mounting plate to the wall using heavy-duty wall plugs and screws. Make sure it is leveled!

2. Simply slide the guitar hanger from the top down onto the wall plate's dovetail joint. It should click/seat snugly into place.

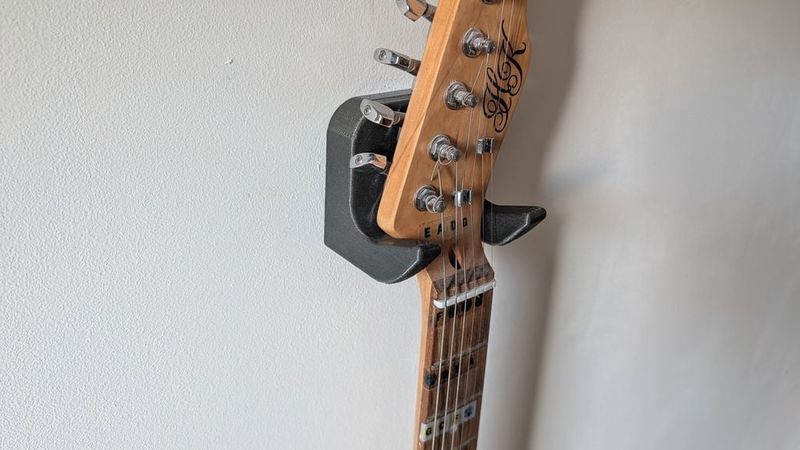

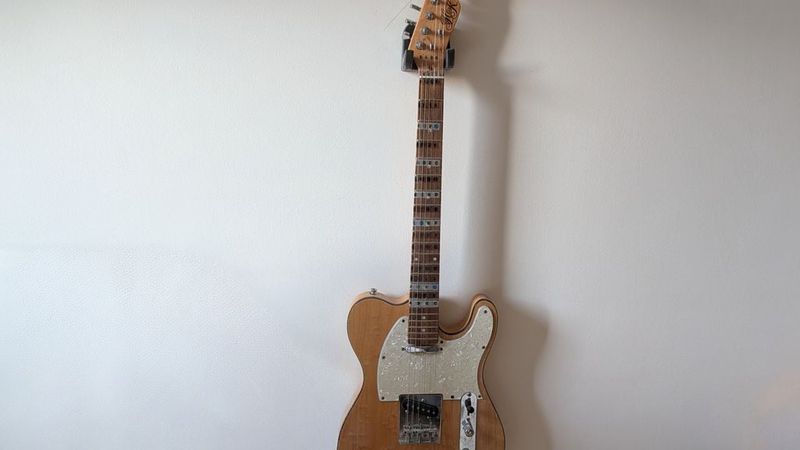

3. Hang your guitar!
