ELRS Antenna mount to under the VTX

pboone424
1 File
stl Format

Description

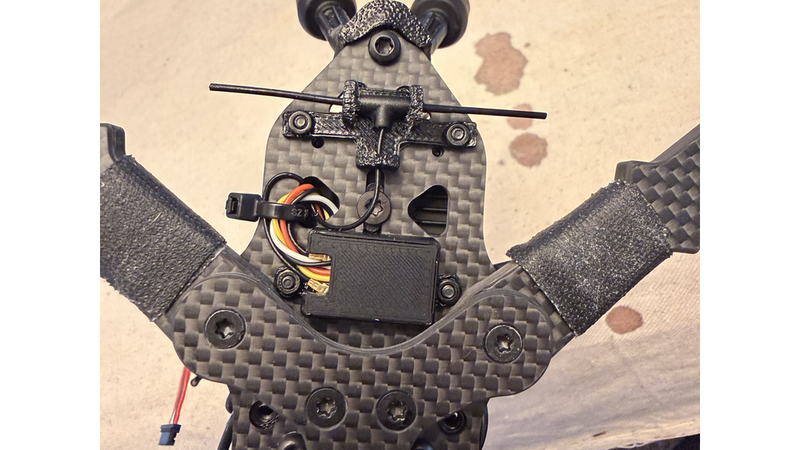

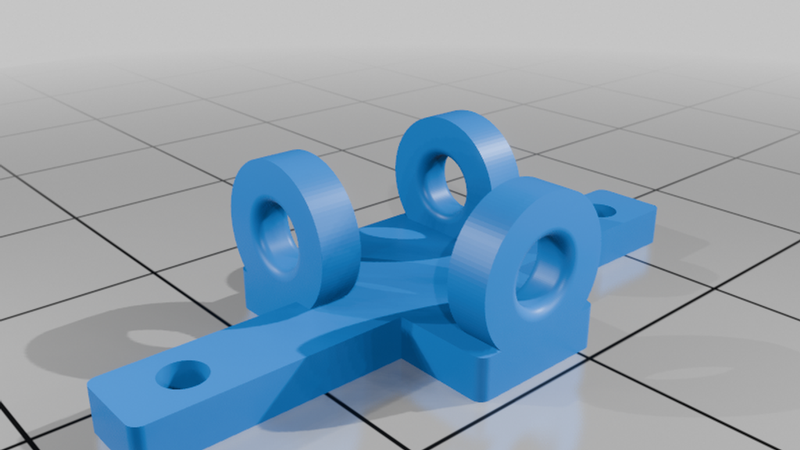

Mount an ELRS antenna underneath the VTX with 25mm spacing between the M2 holes. The holder was designed for a NewBeeDrone Beeceiver antenna where the mounting holes are 3mm in diameter and there's 8mm between the top two mounting holes. I mounted this under a Pirat Punch 5 inch drone frame.

Downloads

ELRSantennaBottom-Body.stl
2.1 MB
