Custom LED Illuminated Tool Wall
Description

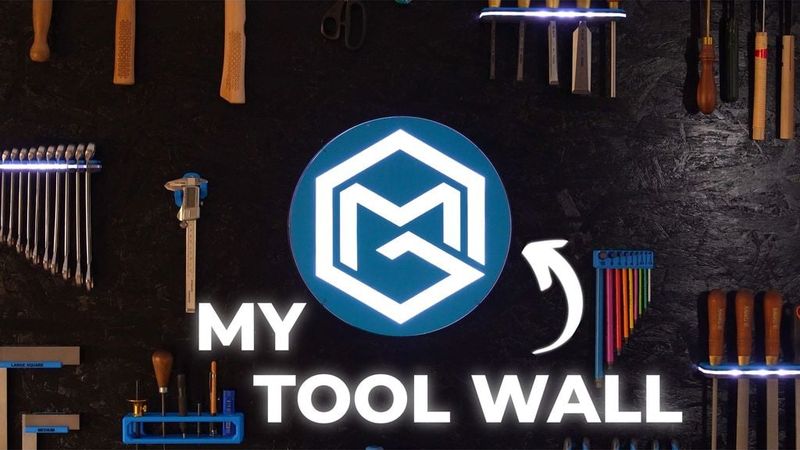

I designed and built this custom tool wall for my workshop as part of a YouTube project. Instead of using a traditional pegboard or standard tool holders, I designed custom mounts for each tool, with integrated RGB LED lighting to give the whole wall a unique look.
You can watch the full build and see how everything was designed, printed and assembled here:
All of the files needed to recreate the project are included. The assembly mounts are designed around a 5 mm acrylic plate, which is sandwiched between the 3D printed sections. RGB LEDs can then be installed behind the acrylic to illuminate each mount.
Included files:
- DXF files for the laser-cut acrylic/diffusers

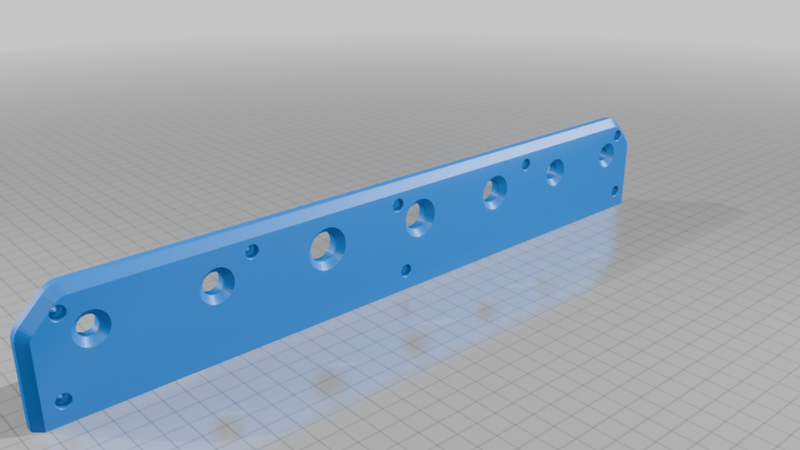

- STEP files for the complete mount assemblies

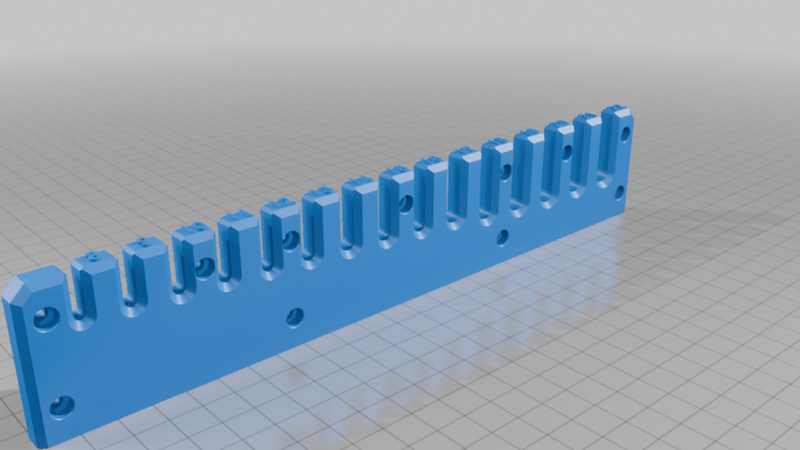

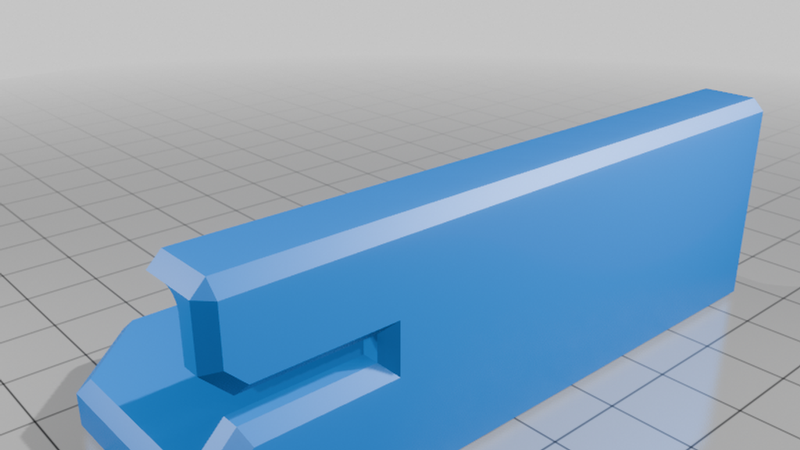

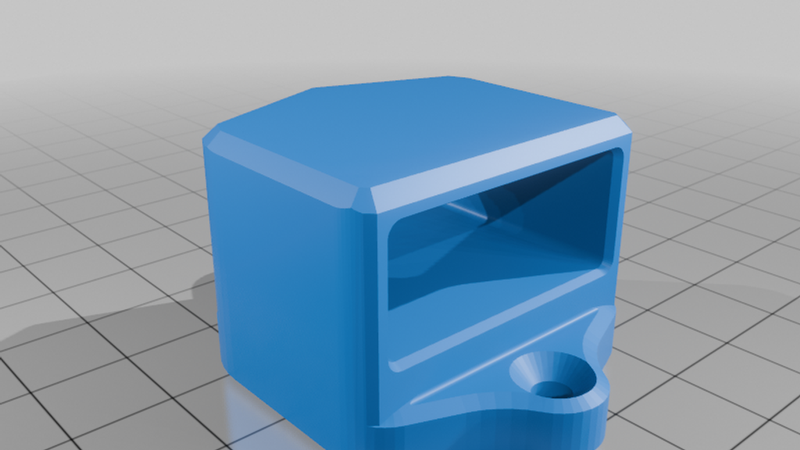

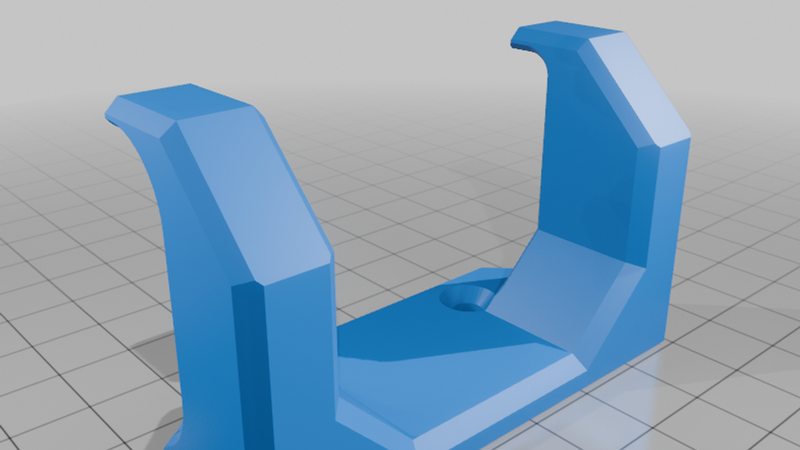

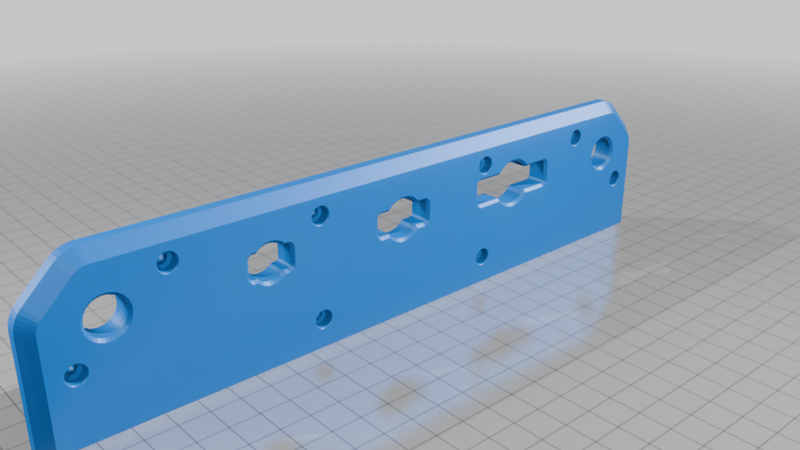

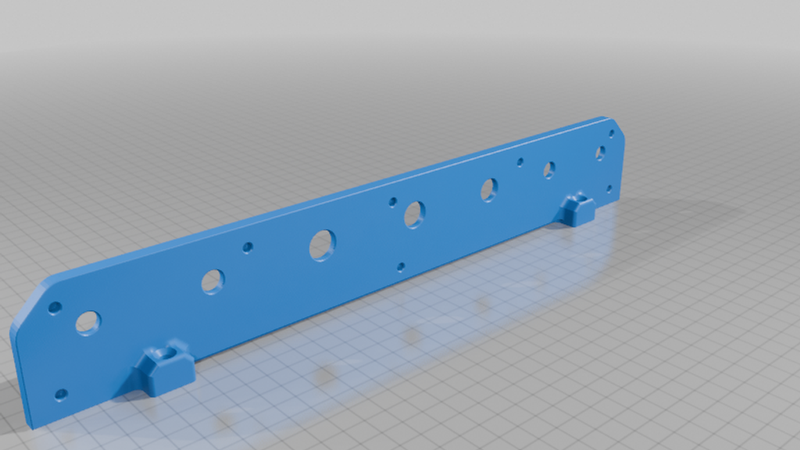

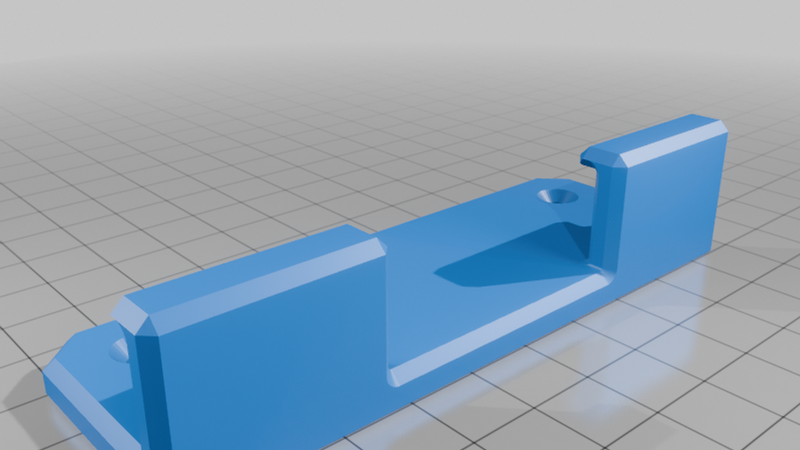

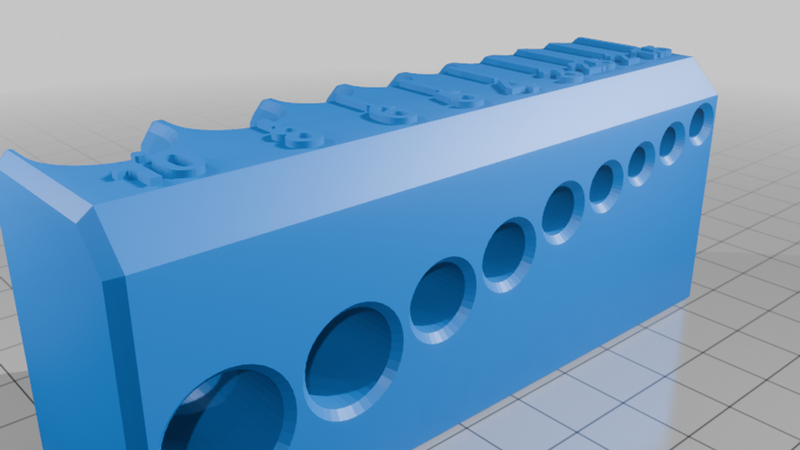

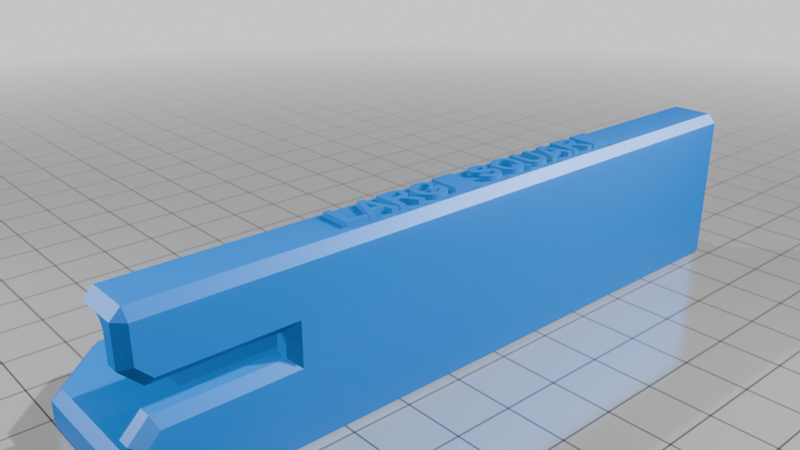

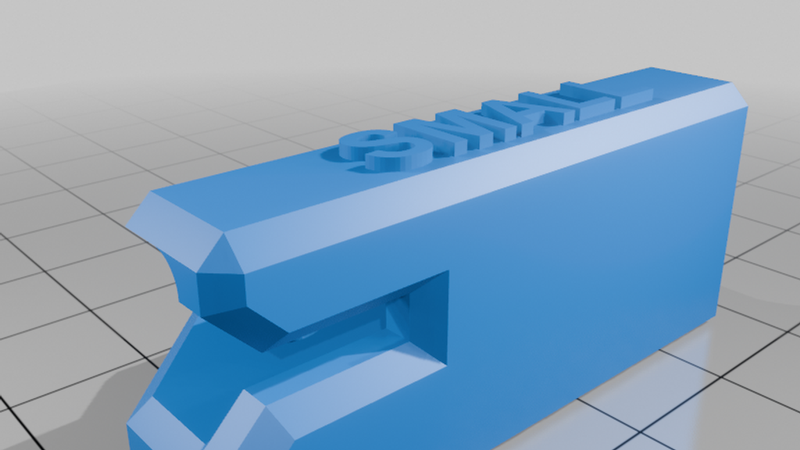

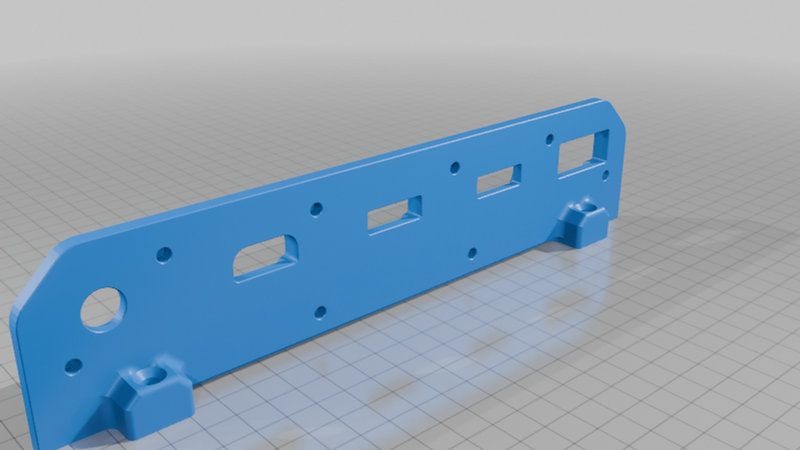

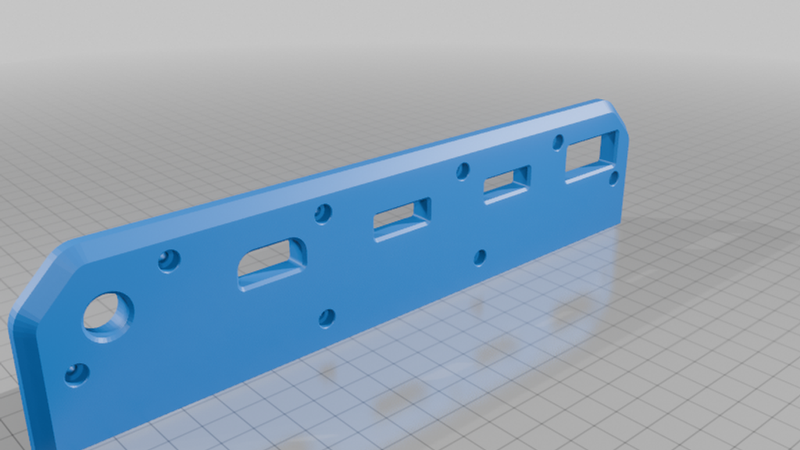

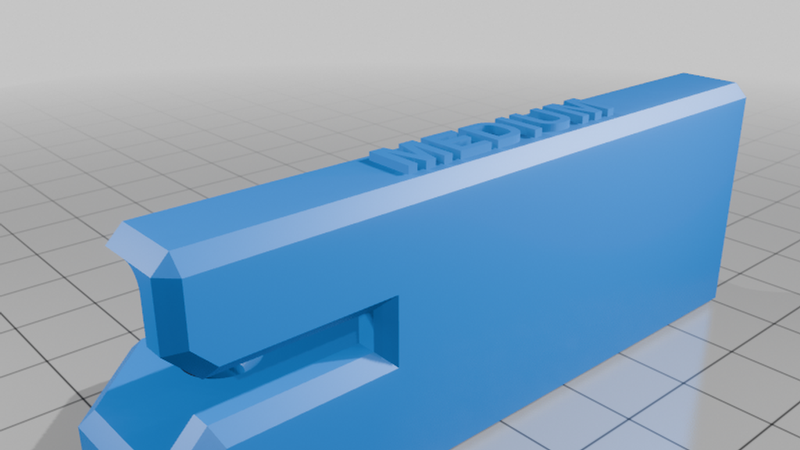

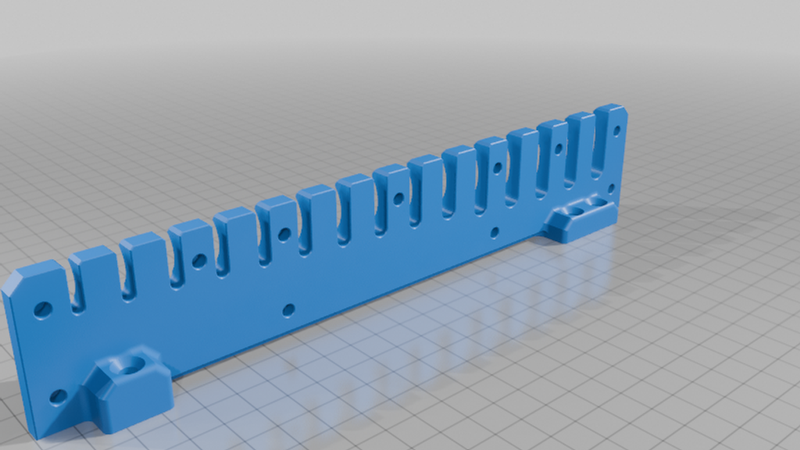

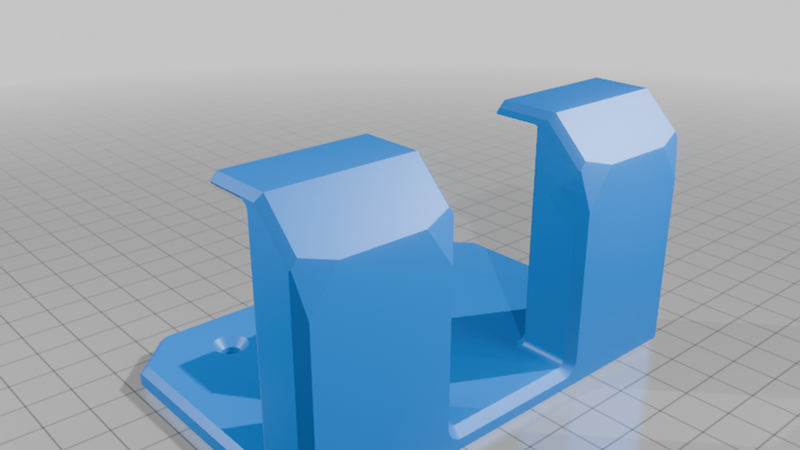

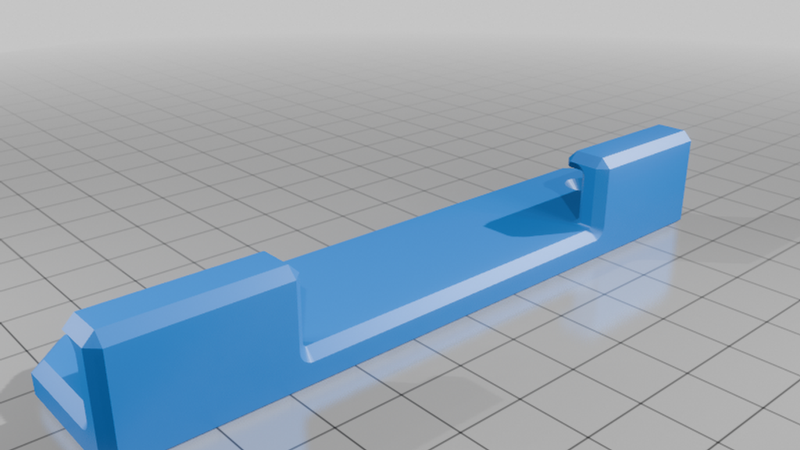

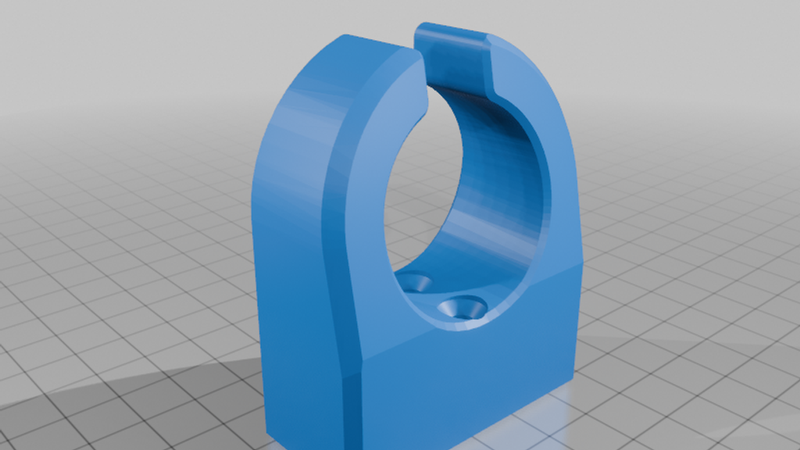

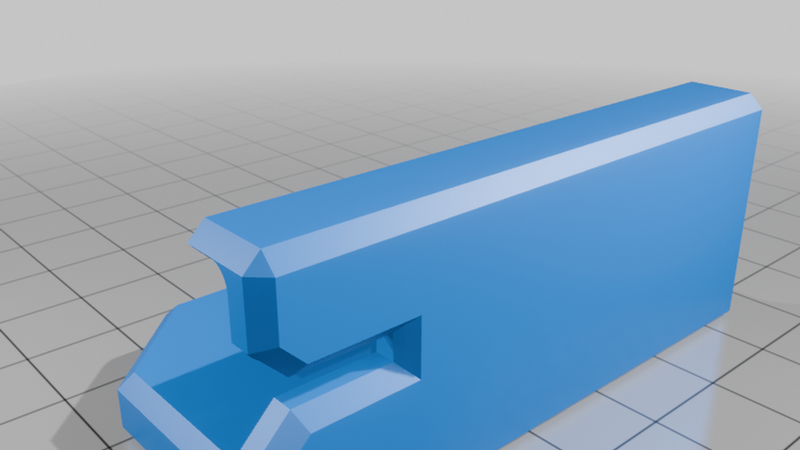

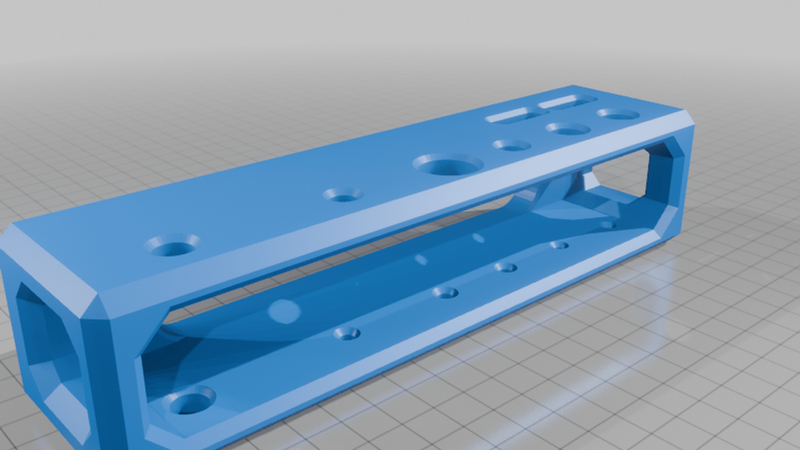

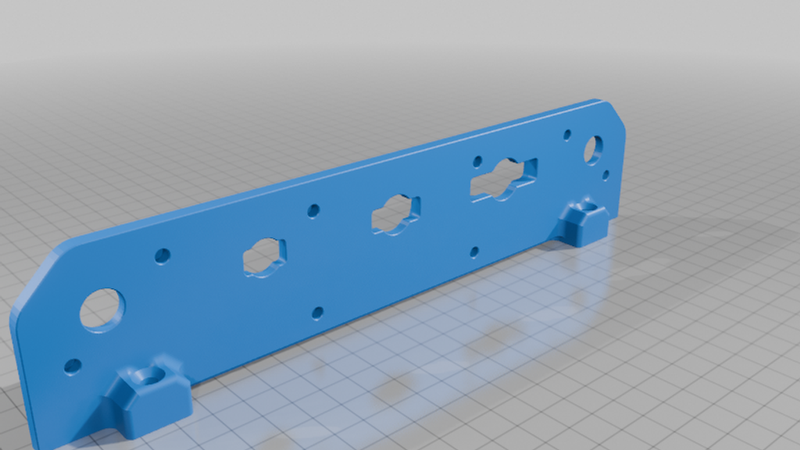

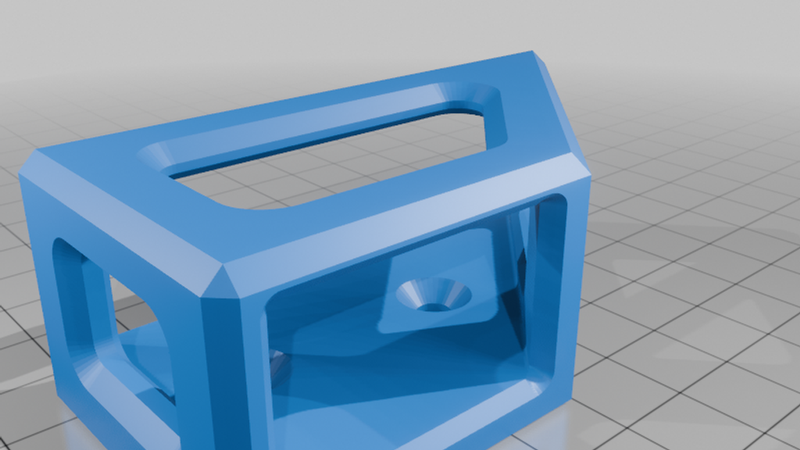

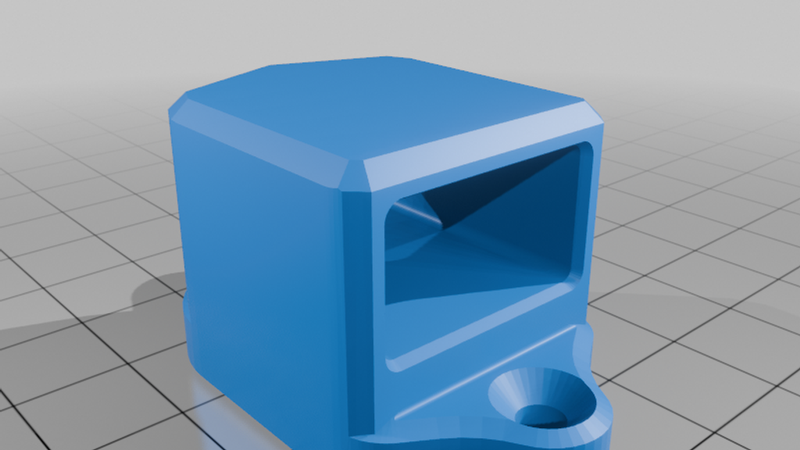

- 3D printable files for all of the printed components
- PDF templates used to mark and drill the holes for the LED holders
You may need to adapt some of the mounts depending on the exact tools you have, but the included files should give you everything needed to recreate the system.
I hope you enjoy the models and find them useful for your own workshop!
If you have any questions or run into any issues with the files or assembly, feel free to leave a comment and let me know.
