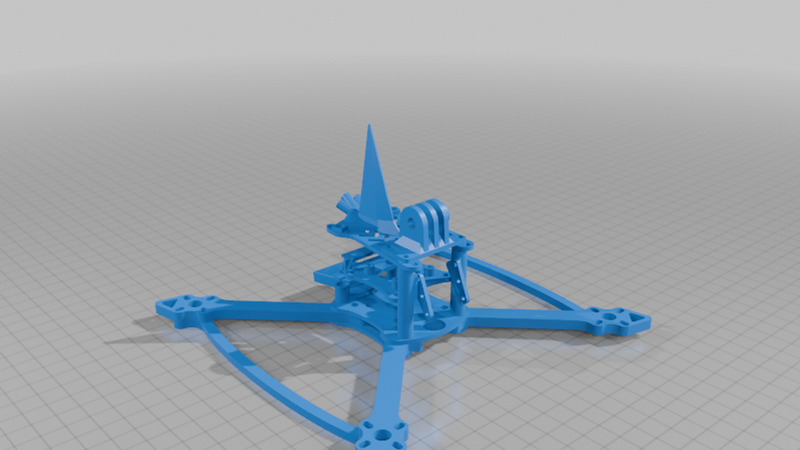

Lexicon 5 MK.1 - 5" Racing Drone Frame

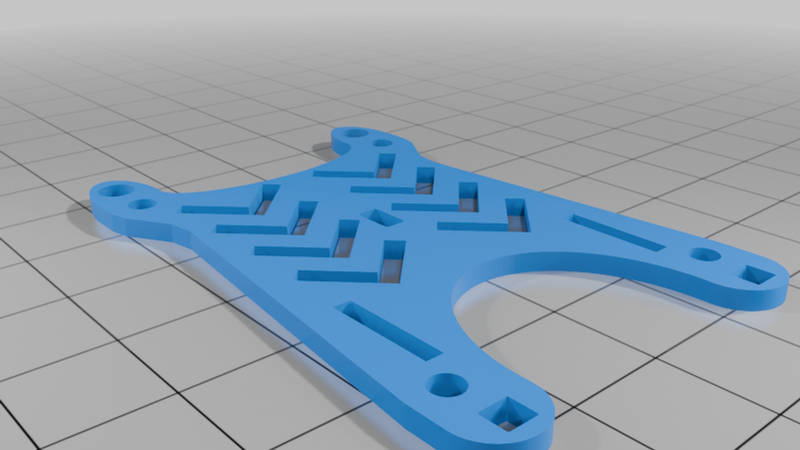

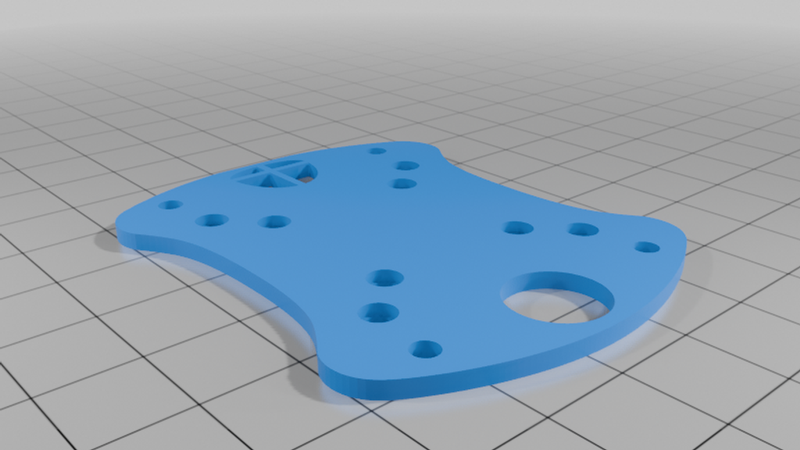

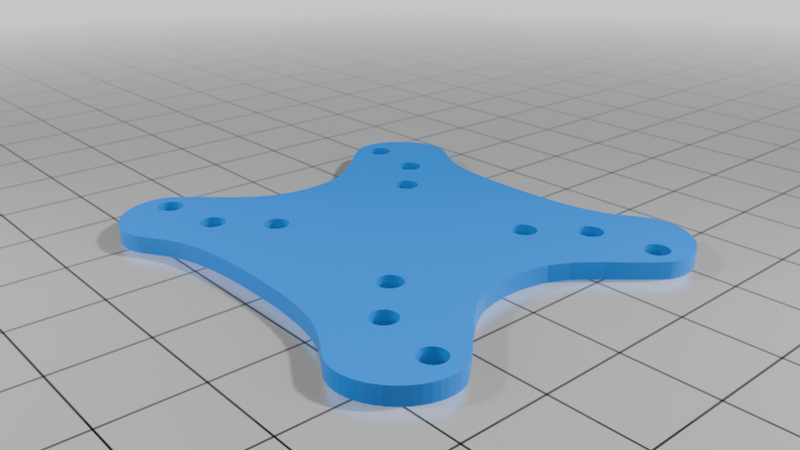

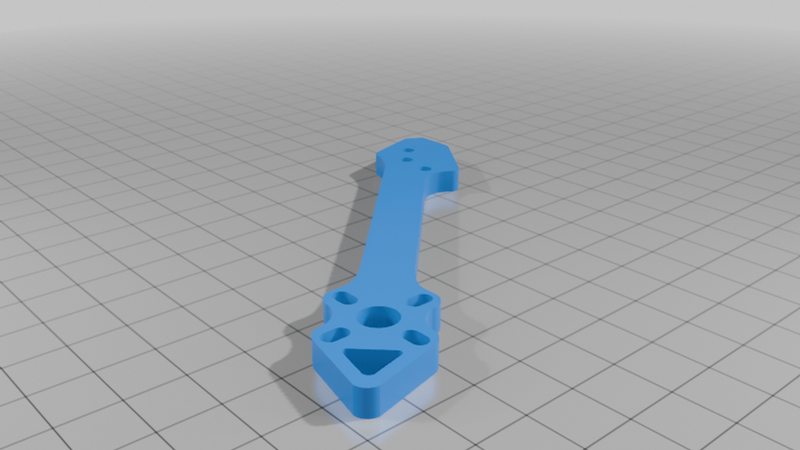

The Lexicon 5 is intended to be what I personally would want out of a simple racing frame. It's not the lightest or most minimal design out there, but is suited for outdoor racing and was intended to take abuse. M3 screws, 35mm standoffs, and press nuts are required. Intended to be mostly cut from carbon fiber.

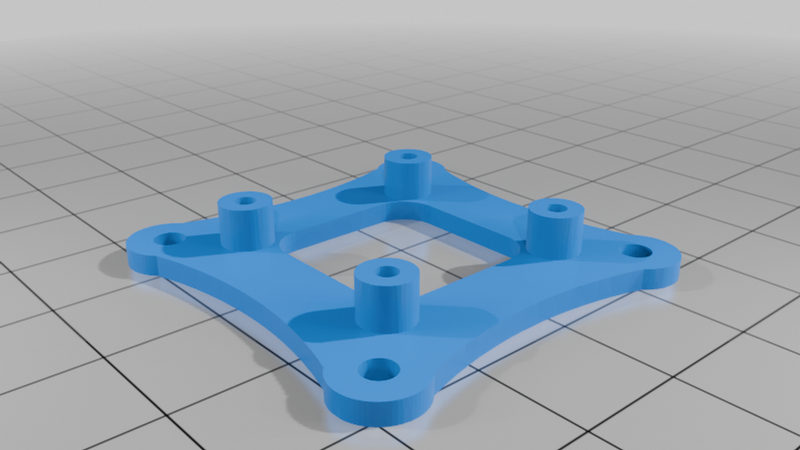

Stack - 20x20 or 30.5x30.5

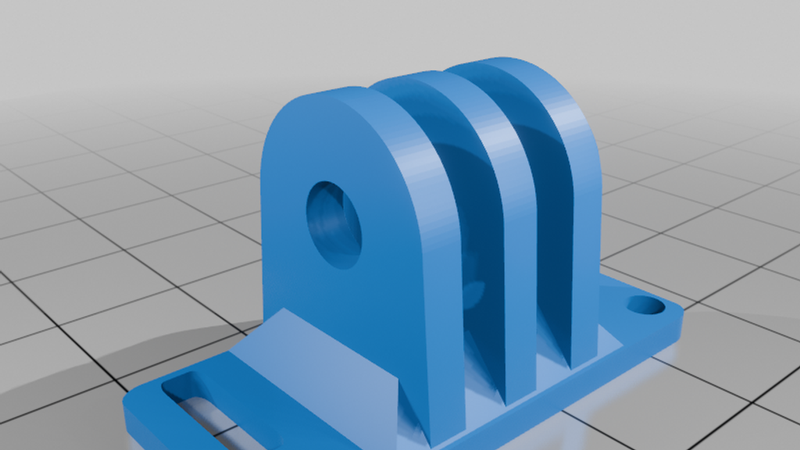

Cam - 20mm

Motors - 2207 or 2306 1700-2100kv on 6s (assuming strong ESC!)

Battery - 6s 1100-1500 LIPO

Props - 4.9-5.1" *5.1 may be tight depending on cam
