Celestron Small Slide Mount

MIB4IBM
1 File
stl Format

Description

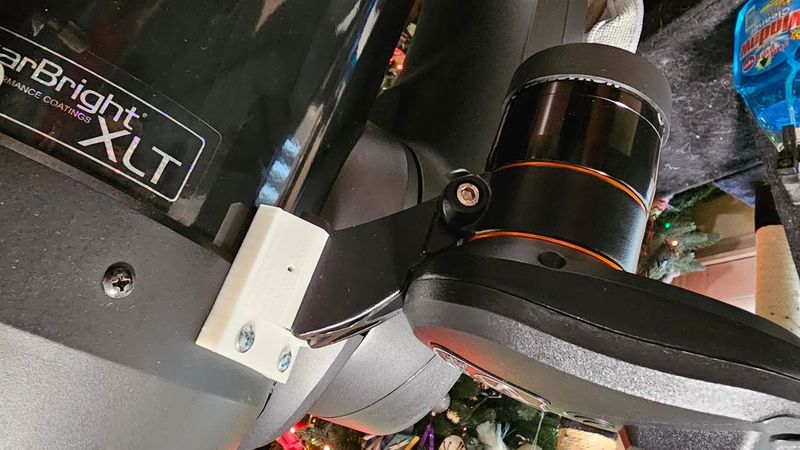

I made this mount for my Starsense Autoalign camera because I couldnt find the correct small one anywhere.

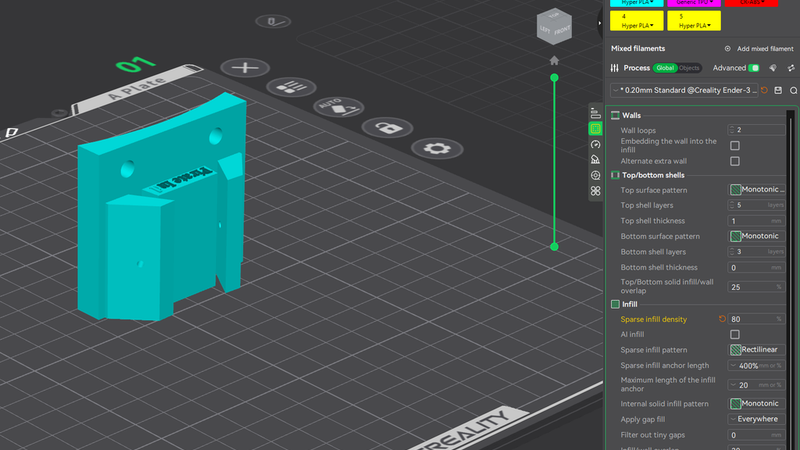

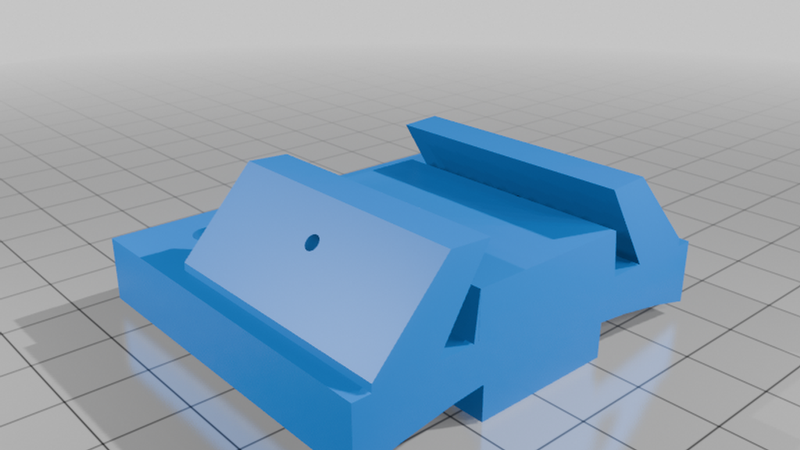

NO support needed if oriented as shown.

I would do 80% infill.

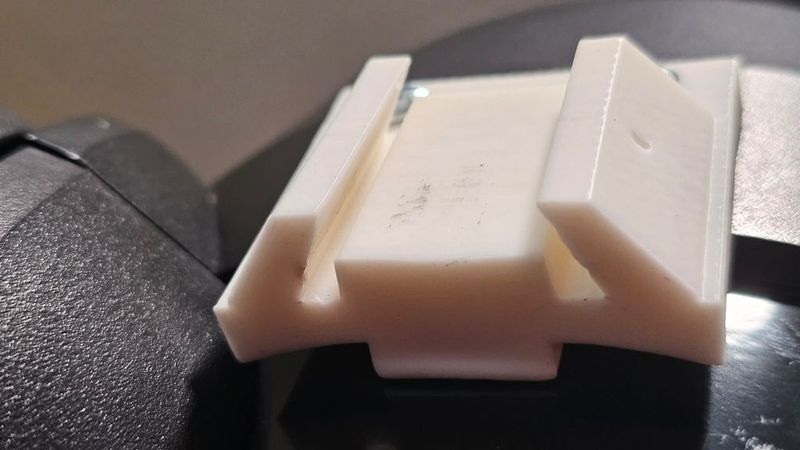

Slide the bracket on as soon as it finishes printing(while still warm) and let it cool on the bracket to form a tight but removable fit.

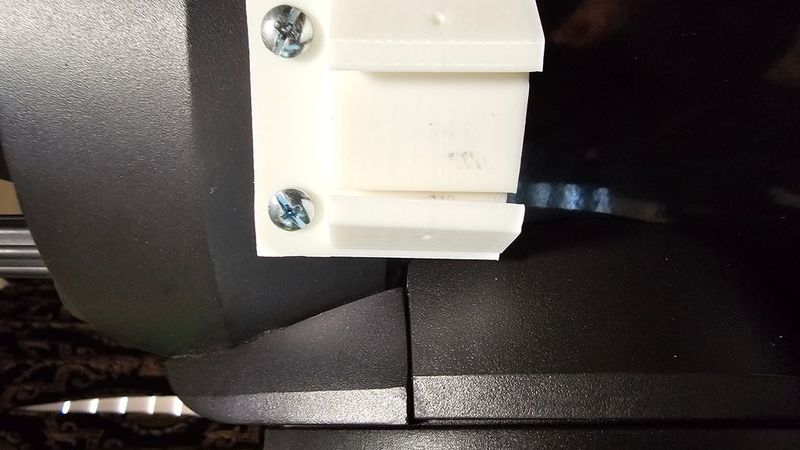

It would mount on the far right set of screw holes with #8-32 x 1/2" to 3/4" long screws.

Downloads

Celestron_Small_Slide_Mount.stl
421.6 KB
