ESP32-cam to DollaTek PD/QC/AFC trigger module adapter
Description
ESP32-cam to DollaTek PD/QC/AFC trigger module adapter
What is this?

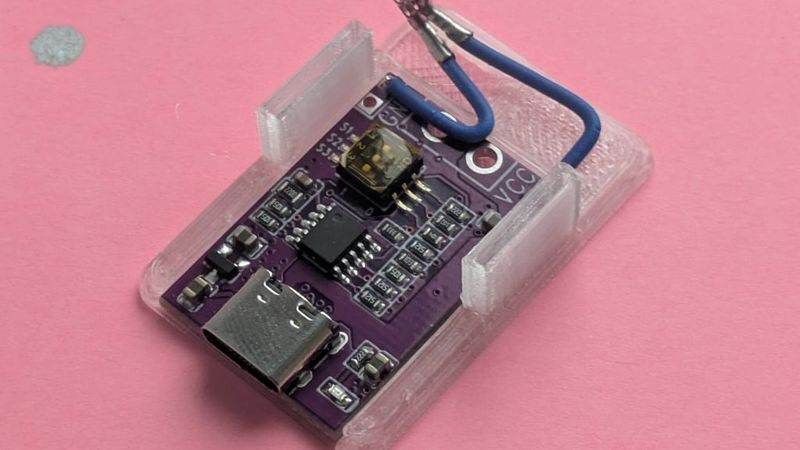

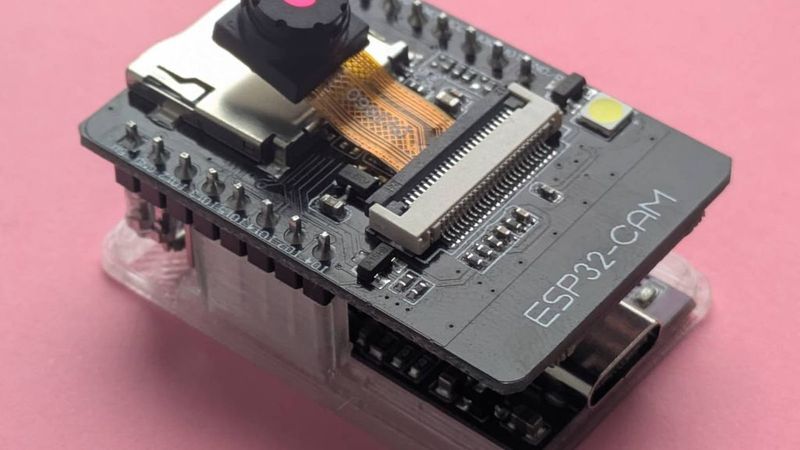

This is an adapter for DollaTek PD/QC/AFC trigger module that replaces the programming interface for esp32-cam.
Why this exists?
Three reasons:
* The programming board should not be used to power on the esp32-cam, it does not deliver enough power to keep esp32-cam operating stable. If your esp32-cam reboots, drops wifi often and does other stuff like this, this is probably the reason.
* Modern smart chargers will often refuse to power on "dummy 5v" devices, so a trigger module is needed. I used this exact one as it's the cheapest and can trigger 5v.

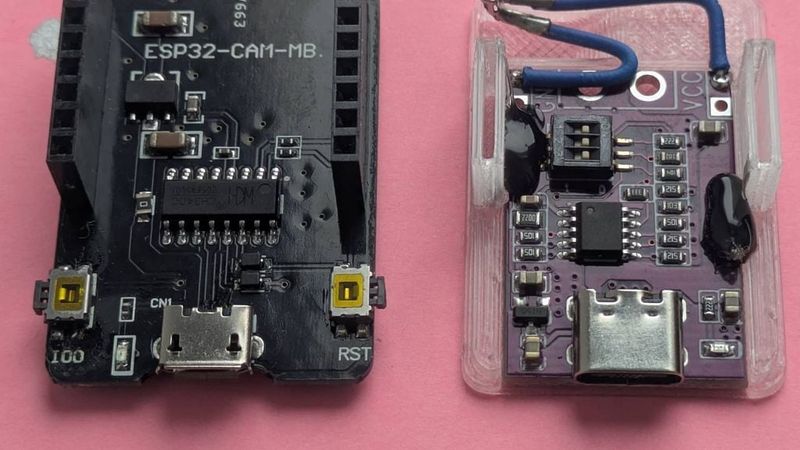

* Since the adapter mimics the original programming board, you can use variety of 3d-printable cases that the community created over the years.

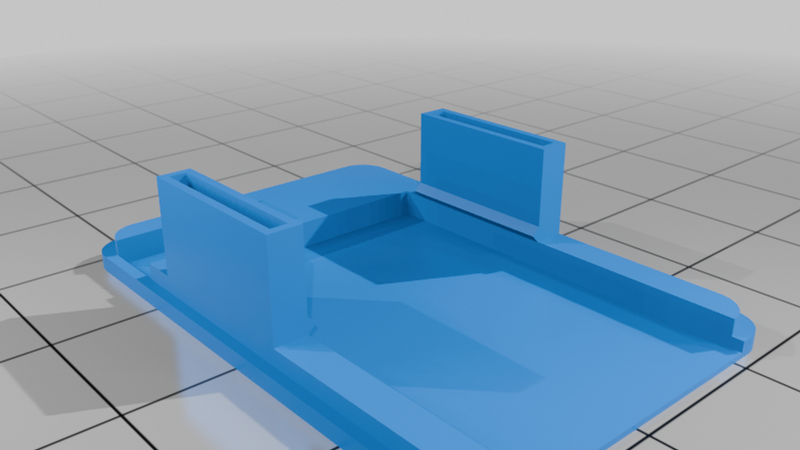

Printer settings
The layer height should be power of `0.1mm`. ...so default `0.4mm` nozzle + `0.2mm` height works great.
Warning!
Remember to set up all three toggles to 0 position, those are labeled on the silkscreen on the PCB itself. Don't be suggested by the "on" label on the switches themselves.
