Parametric Camera Pole Mount – Split Tube Clamp with Slotted Plate

Mount a lightweight camera to a round tube using a bracket configured for your setup.

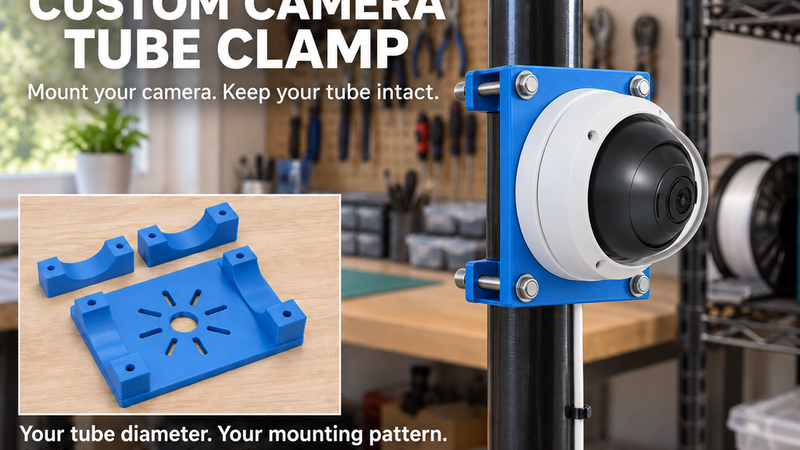

The model consists of one main plate and two separate clamp jaws. Four clearance-fit bolts with washers and lock nuts close the jaws around the tube, avoiding the need to drill the tube itself.

Use it to position a camera on an existing indoor support or round shelving post—for example, to observe a hobby work area.

CONFIGURE THE FIT ONLINE

Adjust the tube diameter, plate dimensions, material thickness and camera mounting pattern directly in your browser.

Choose eight round mounting holes or radial slots, with configurable bolt-circle diameter, hole diameter and slot length. Clamp-bolt options are M4, M5, M6 and M8.

Inspect the result in an interactive 3D preview:

https://www.buildyour3d.com/en/product/custom_camera_tube_clamp_v2

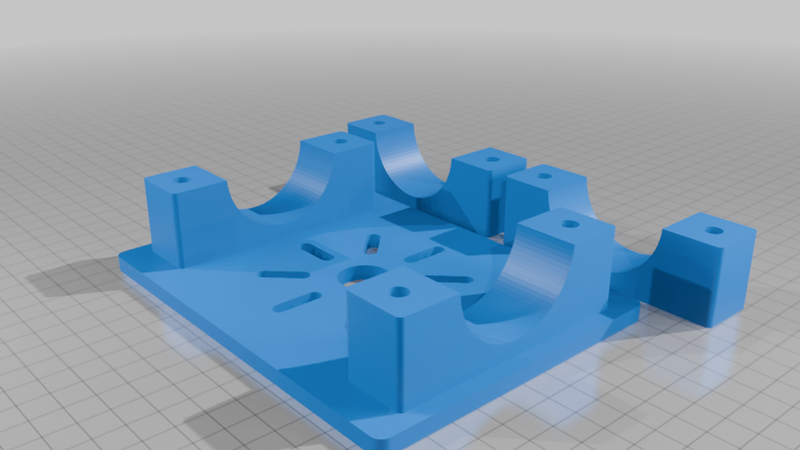

No CAD software installation is needed. Output options include the full three-part print set, assembly preview, main body and one clamp jaw.

BEFORE PRINTING

Check the camera base dimensions and fastener access. The radial pattern is configurable, but it does not guarantee compatibility with every camera.

Allow space for cable routing and test the completed mount for slipping or rotation. Holding performance depends on the print, hardware, tube surface and camera weight.
