Custom Magnetic Mounting Plate – Parametric Disc Magnet Adapter
Description
Add a removable mounting option to a lightweight DIY enclosure or accessory.

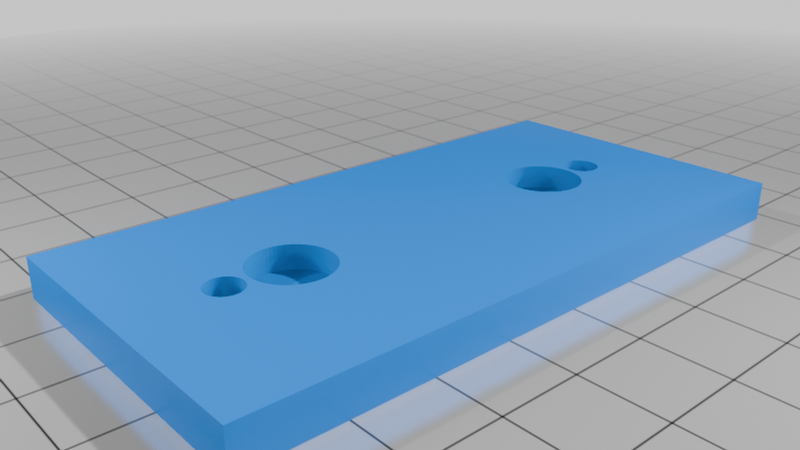

This rectangular adapter plate has two circular magnet pockets and two mounting holes. The holes connect your component to the adapter; the magnet side faces the steel mounting surface.

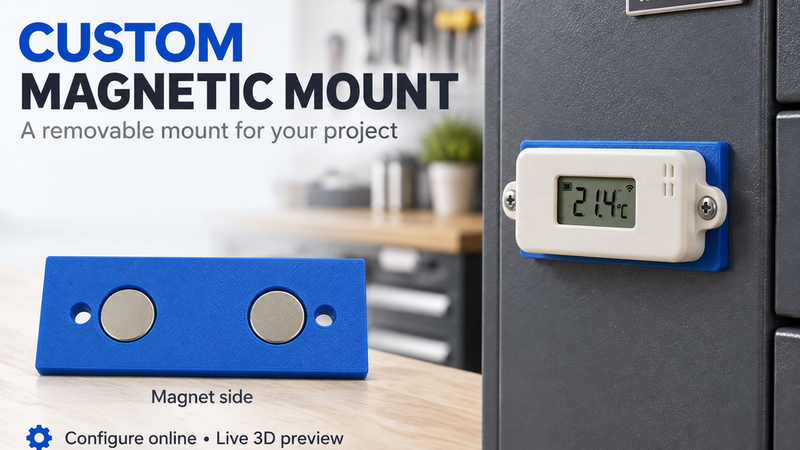

A practical project is a small sensor enclosure attached to the side of a steel storage cabinet. The enclosure can be repositioned or removed without adding mounting holes to the cabinet.
ONLINE PARAMETRIC GENERATOR
Configure the model directly in your browser with an interactive 3D preview:
• Set plate width, height and thickness.
• Adjust the magnet pocket diameter.
• Choose the mounting-hole diameter.
• Inspect the fit and overall geometry before ordering.
Open the configurator:
https://www.buildyour3d.com/en/product/magnetic_mount_adapter
No CAD installation is needed. The website offers paid custom STL downloads and printed-part ordering.
ASSEMBLY NOTES
Use suitable disc magnets and hardware. Verify pocket depth, magnet fit and screw clearance before assembly. Secure the magnets so they remain in the plate when it is removed.
Test resistance to both pulling and sliding on your actual mounting surface before relying on the mount.
