Customizable Object Holder and Offset Mounting Bracket
Description
Generate a custom object holder for your exact dimensions directly in your web browser.
Online configurator with interactive 3D preview:
https://www.buildyour3d.com/en/product/objekthalter

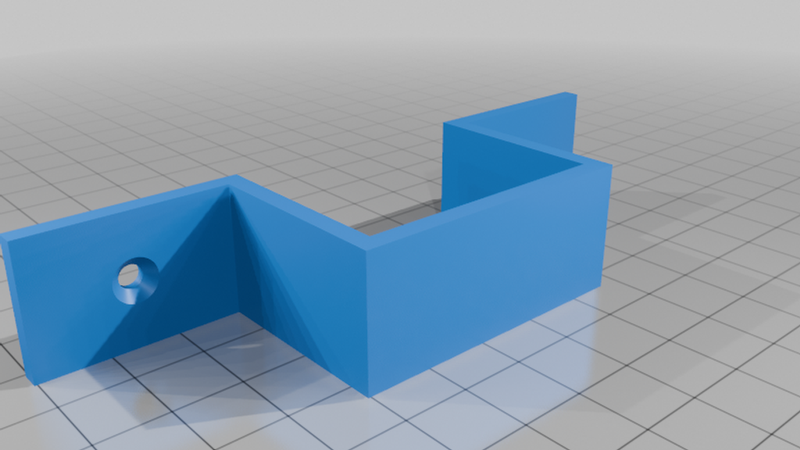

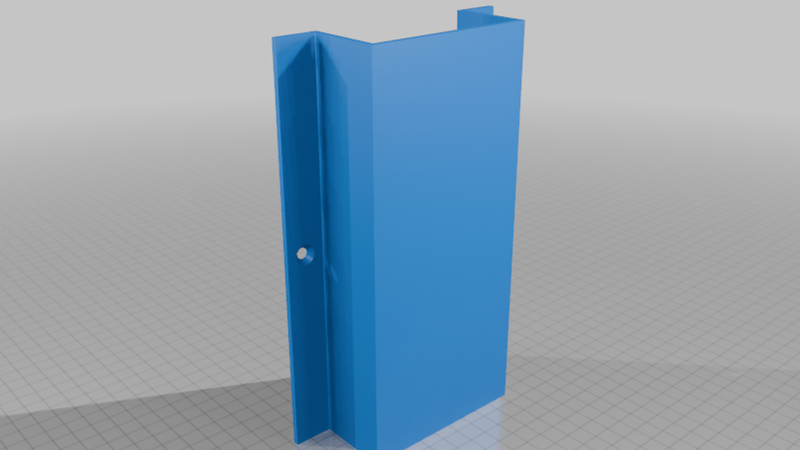

This parametric mounting bracket is designed for applications where a standard off-the-shelf holder does not fit. Its adjustable stepped shape can connect offset mounting surfaces and support projects involving rectangular housings, cable ducts, workshop equipment, profiles and custom fixtures.
WHAT CAN BE ADJUSTED?
• Object width and height
• Width of the mounting section
• Bracket thickness
• Screw-interface length
• Screw-hole diameter
• Clearance for the installed object
Change the parameters online and check every adjustment immediately in the live 3D preview. Once the dimensions are correct, you can obtain the generated STL or order the configured part as a 3D print.
POSSIBLE USES
• Mounting an equipment enclosure beneath a workbench
• Holding a rectangular cable duct or profile
• Creating a replacement for an unavailable bracket
• Building custom workshop fixtures
• Connecting components at different mounting heights
• Testing fit and available installation space
PRINTING NOTES
PLA works well for prototypes and light indoor applications. PETG is better suited to many tougher functional parts, while ASA can be useful for outdoor or warmer environments.
Check the screw-hole size and installation clearance before printing. Mechanical performance depends on print orientation, wall thickness, infill, material and the direction of the applied load.
Use only for non-safety-critical applications. Always inspect the finished holder and verify its load capacity in the actual installation.
Configure it online with no CAD software required:
