Custom Power Strip Wall Mount – Parametric Snap-Fit Holder

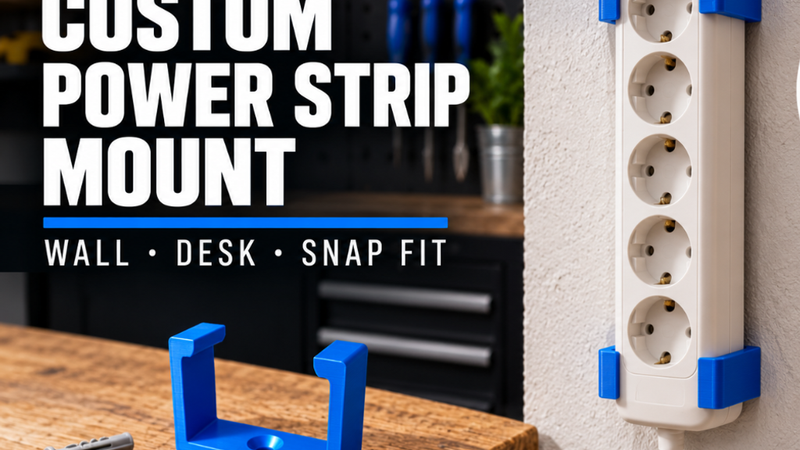

Create a custom snap-fit power strip mount for securely attaching a multi-outlet extension strip to a wall, workbench, shelf, furniture panel or underneath a desk.

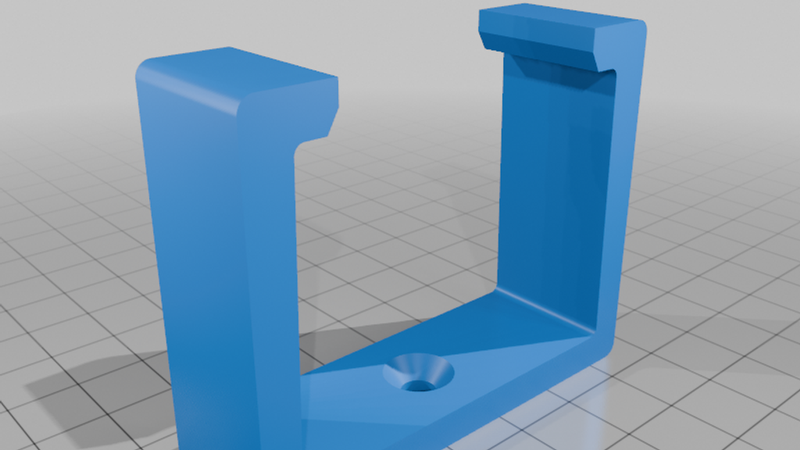

The configurable U-shaped holder uses two flexible side arms with integrated snap hooks. The arms wrap around the power-strip housing and retain it without drilling into or modifying the electrical device. A centered countersunk mounting hole allows the holder to be fastened to a suitable surface.

For a long power strip, use two holders positioned near the opposite ends. This provides stable support while keeping the electrical sockets, switch, cable exit, surge indicator and ventilation openings accessible.

Adjustable dimensions include:

Power-strip housing width

Power-strip housing height

Side clearance

Holder depth

Material thickness

Typical applications:

Power strip wall mount

Under-desk cable management

Workshop extension-lead holder

Office desk organization

Workbench power-strip bracket

Furniture and shelf mounting

Server cabinet organization

Motorhome and camper storage

Technical-room cable management

Measure the maximum width and height of the housing, including rounded edges and raised details. Add enough clearance for printing tolerances while maintaining sufficient snap-fit preload.

Configure the holder and generate your custom STL:

https://www.buildyour3d.com/en/product/parametric_power_strip_wall_mount_snap_fit_v1

Important: Keep sockets, switches, ventilation openings and the cable outlet unobstructed. Attach the holders only to a suitable supporting surface. Do not drill into the power strip or modify its electrical enclosure. Verify the printed holder regularly for deformation, cracking or loss of retention.

The product page confirms that the holder is intended for walls, desks, shelves, workbenches and furniture and uses adjustable snap hooks around the housing: BuildYour3D
