Retractable Watch Charger Mount – Under-Desk Holder (Desktronic) Samsung Galaxy Watch, all-gen

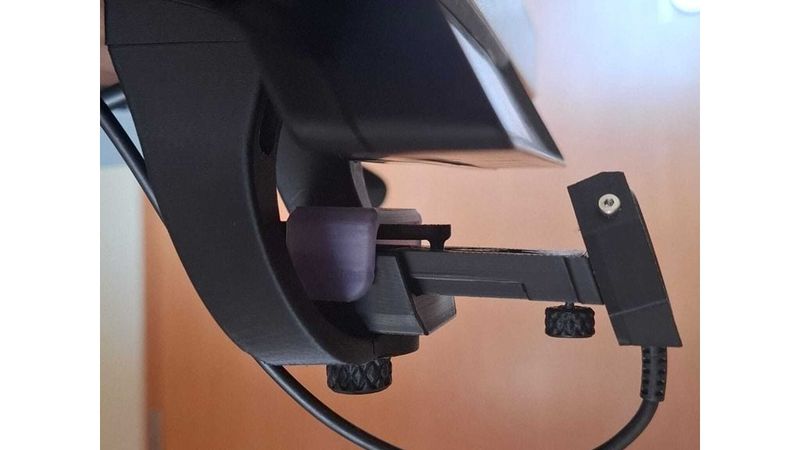

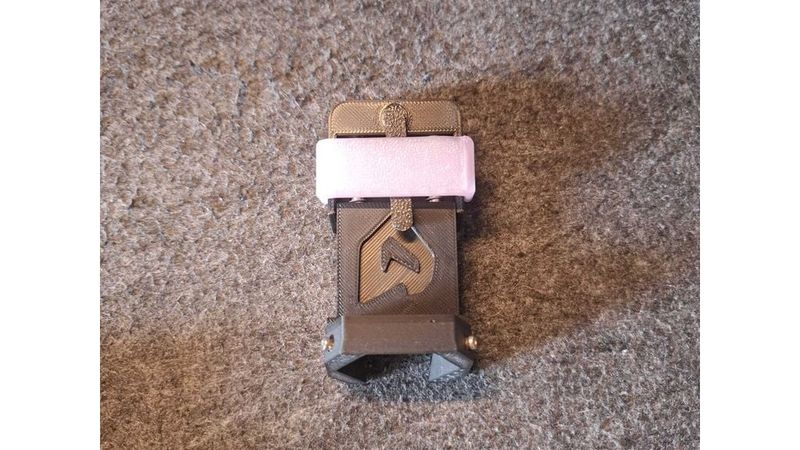

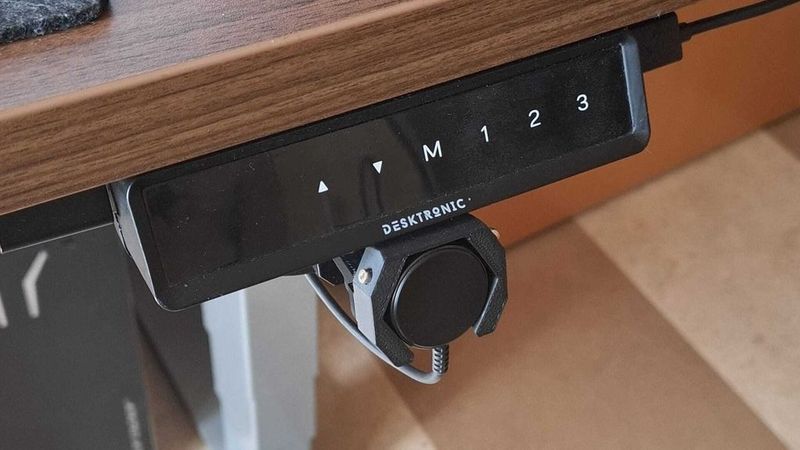

This is a retractable, push-push under-desk mount for your Samsung Galaxy Watch wireless charging puck. Mount it once under your desk, and a simple push extends the charger into position — push again to retract it out of sight when not in use. Since Samsung has kept the same magnetic charging puck design from the Galaxy Watch3 all the way through the Watch9 and Watch Ultra2, this mount works across virtually the entire Galaxy Watch lineup, not just the Watch7.

Assembly instructions:

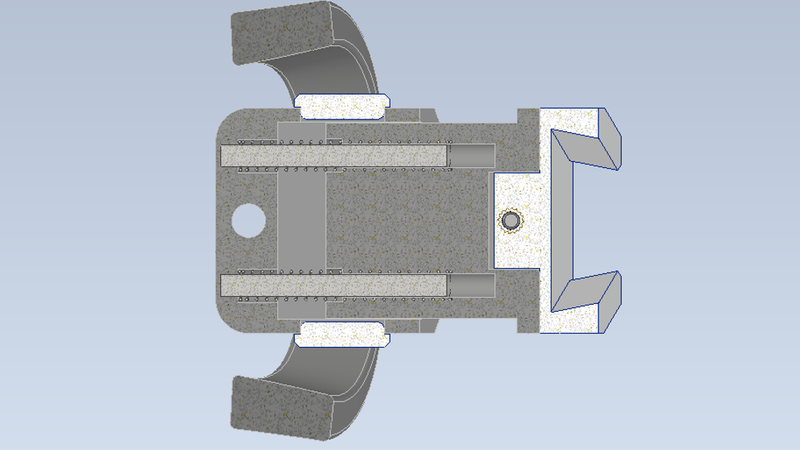

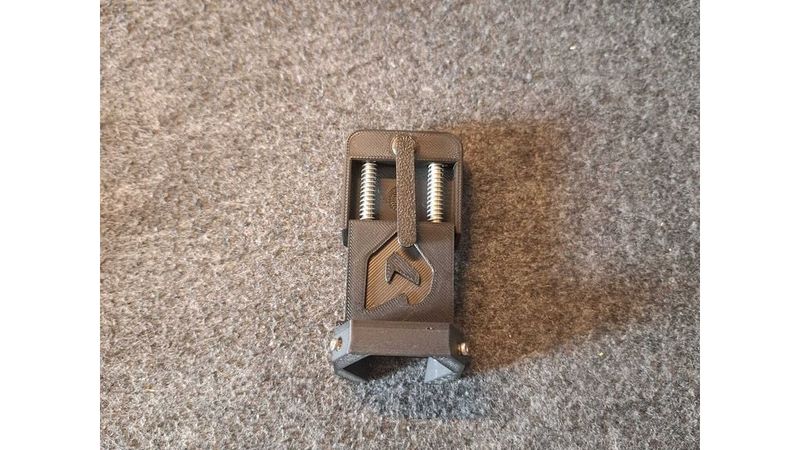

1. Slide the springs onto the metal rods, then press this assembly together with the Bridge into the Housing Flange. A hammer may be needed to seat it fully.

2. Install the heat-set inserts into all parts that require them.

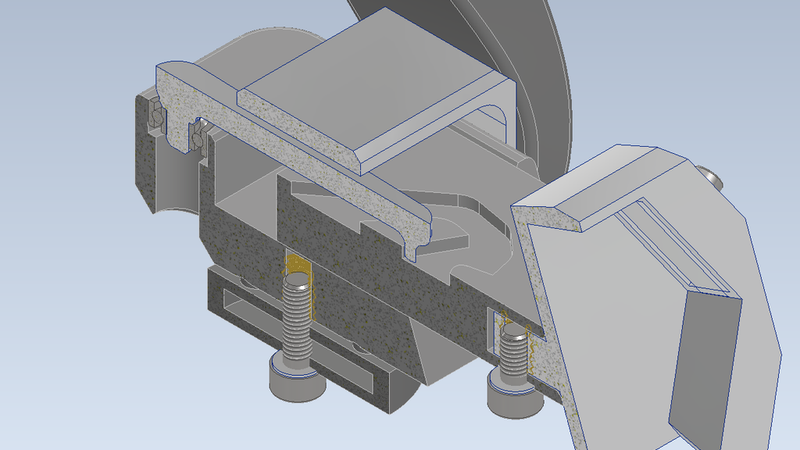

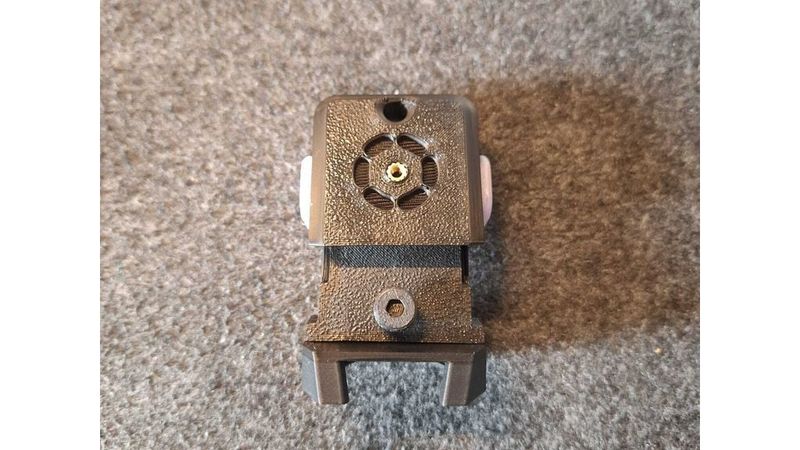

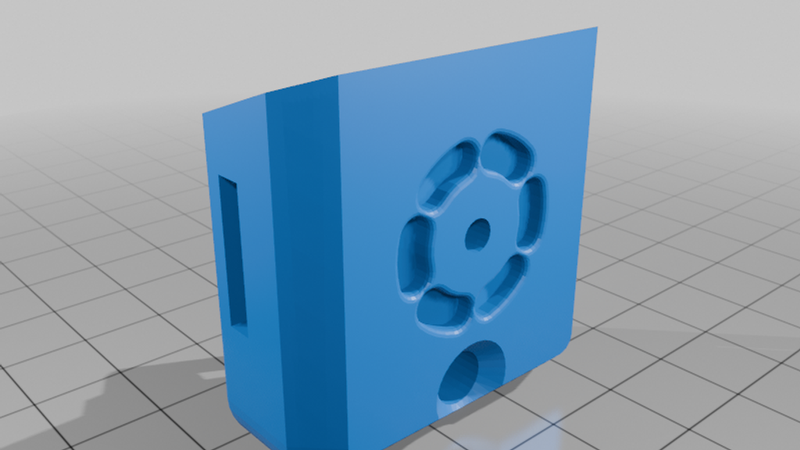

3. Assemble the Main Body together with the mechanism. The M3x10 screw and the magnets help align the parts and make this step easier.

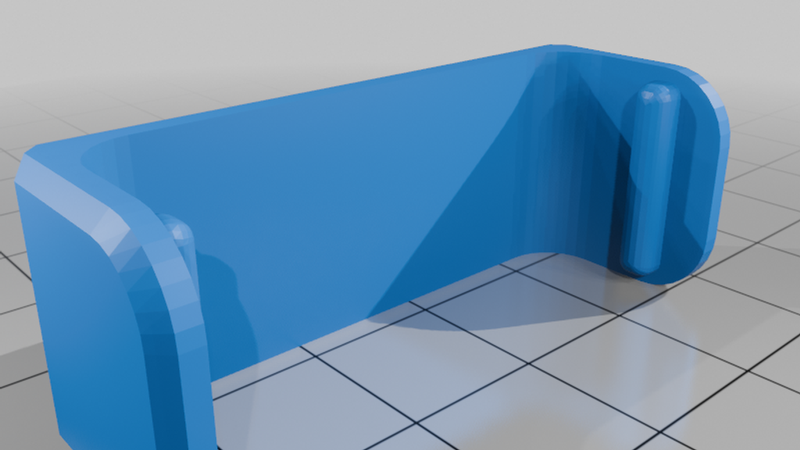

4. Screw the Mounting Bracket to the underside of your desk first.

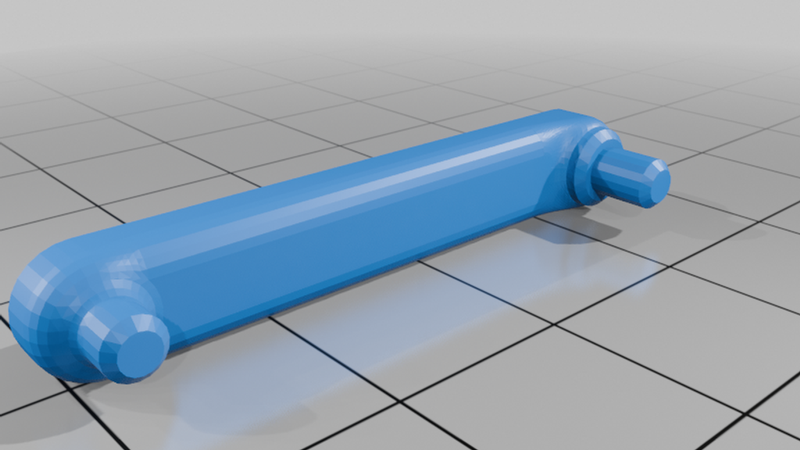

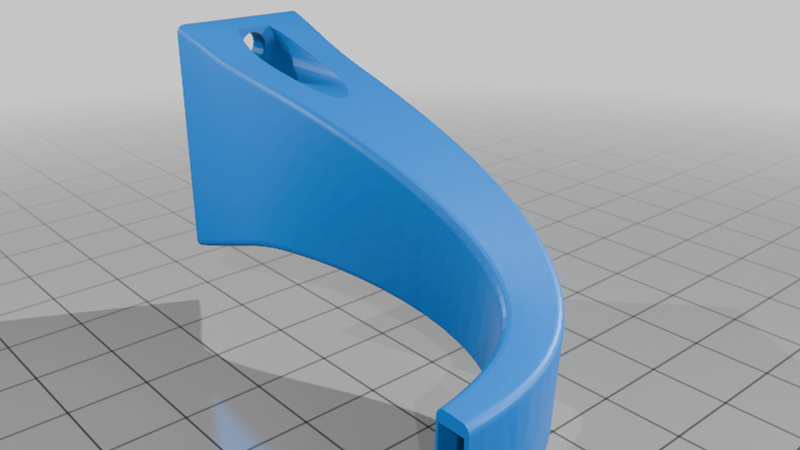

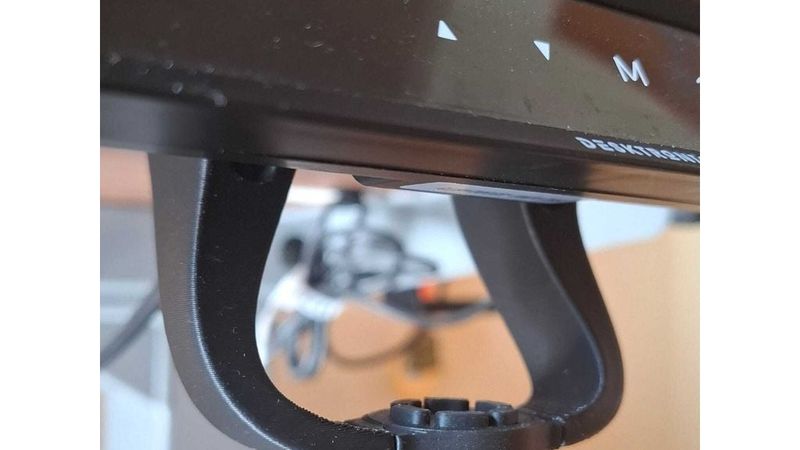

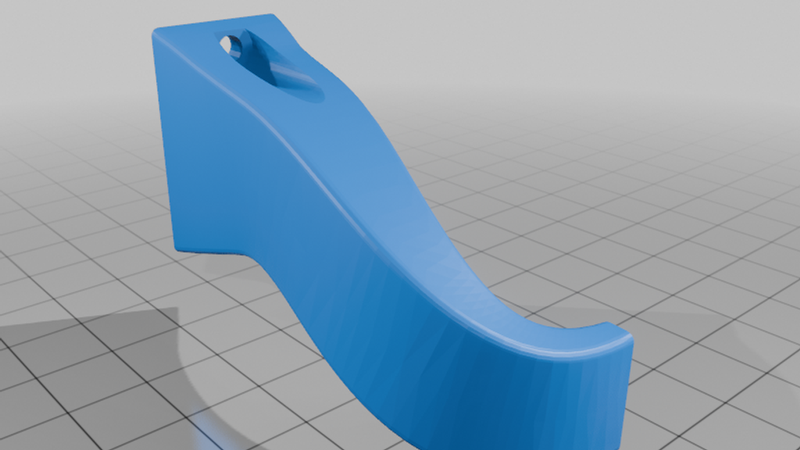

5. Insert the Arms into the Mounting Bracket.

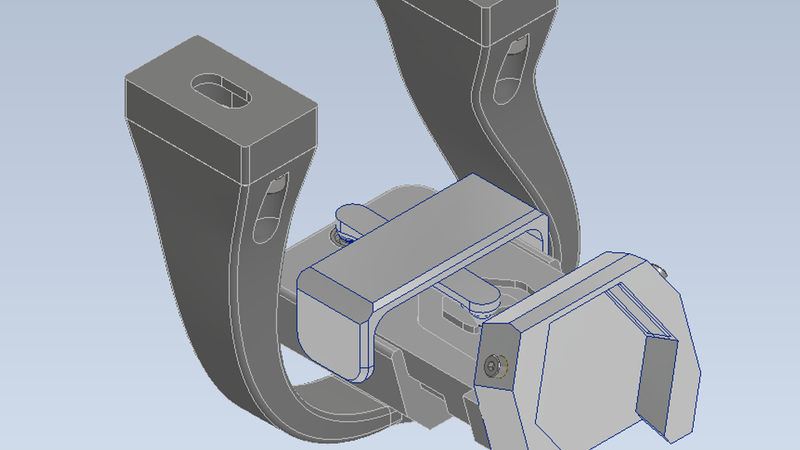

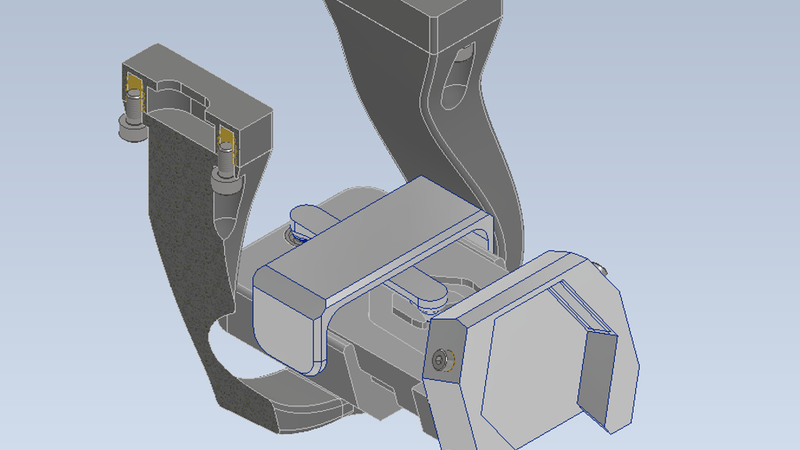

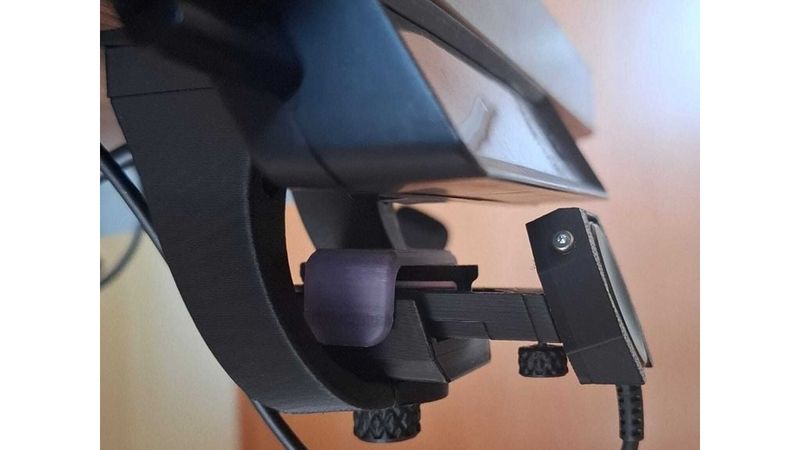

6. Attach the Main Body to the desk/arm assembly, then place the mechanism on top.

7. Assemble all remaining parts using their respective screws — once that's done, you're finished.

Bill of Materials:

2x Metal Rod, 4x40mm

1x Ball Bearing, 3x8x4mm (ID 3mm, OD 8mm, thickness 4mm)

5x Socket Head Cap Screw M3x6

1x Socket Head Cap Screw M3x10

2x Heat-Set Insert M2

2x Socket Head Cap Screw M2x6

2x Compression Spring, OD 5.5mm, length 38mm

6x Heat-Set Insert M3

1x Washer, OD 5mm, ID for M2, thickness 2mm

8x Magnet, 7x2mm (diameter 7mm, thickness 2mm)
