Raspberry Pi, IMU, Ultrasonic Distance Sensor, Raspberry Pi Camera holder bracket: full SLAM package

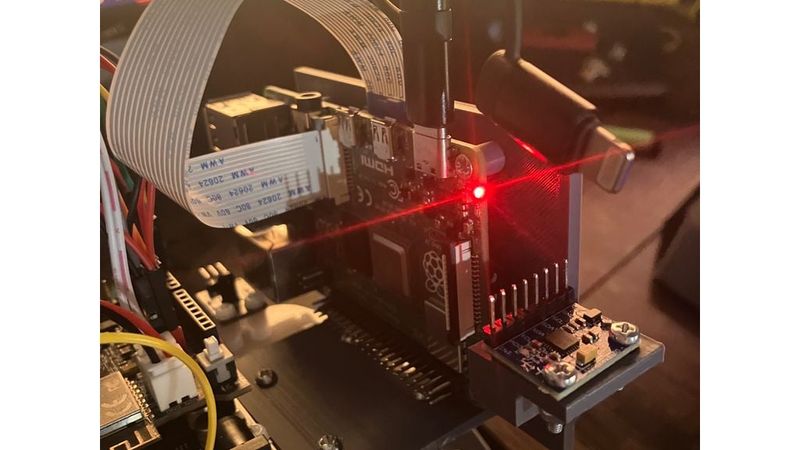

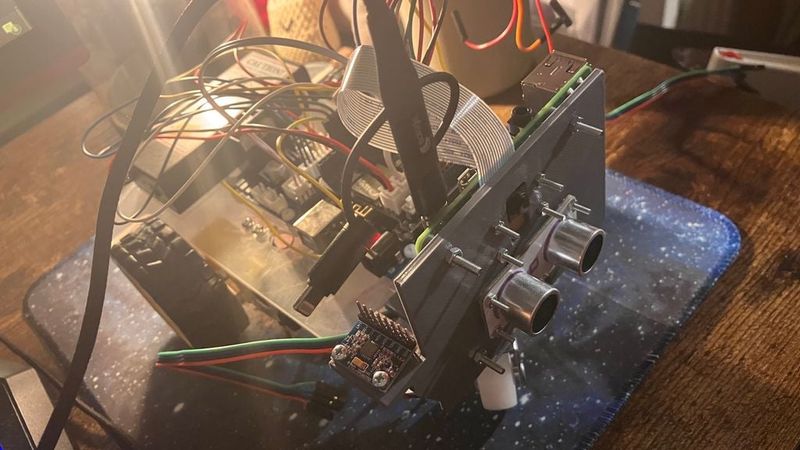

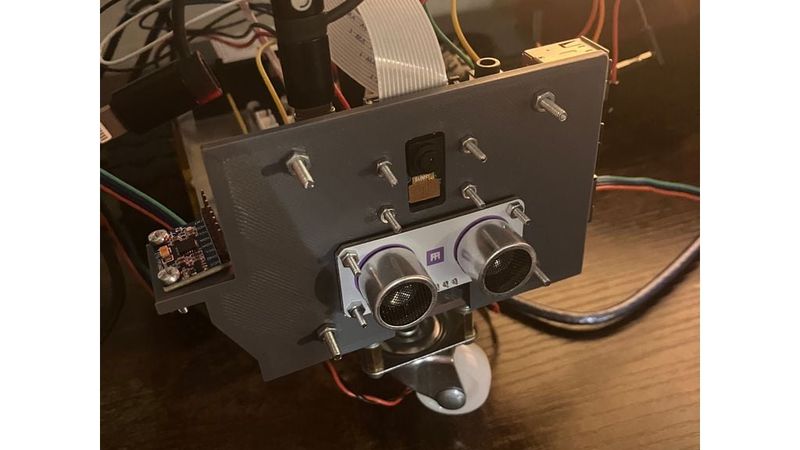

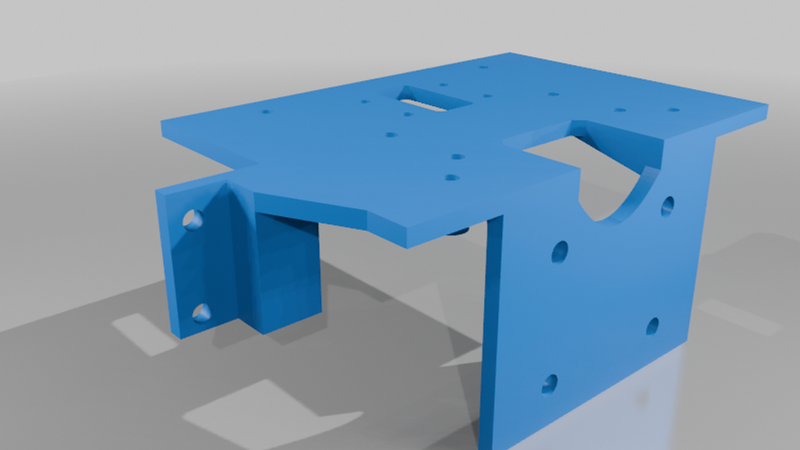

A bracket that mounts a Raspberry Pi 4B, an IMU (MPU6050 GY-521), Ultrasonic Distance Sensor (HC-SR05), and Raspberry Pi Camera (Rev1.3) using only nuts and bolts. If your mobile system has rotary encoders on the motors, this setup provides everything you need for a solid SLAM set. Also useful just for holding these components together, and makes a system considerably more intelligent. Designed to be mounted horizontally using 4x M3 Bolts + nuts, center-to-center separated 29.5mm side-to-side and 24mm front-to-back.

If you're building a smart robot and you already have the power + wheels/locomotion sorted, this will hold everything else you need. All you need on your system is the 4 M3 bolt holes to mount this bracket.

Designed to be mounted on OSOYOO 2WD car to supercharge its intelligence.
