5mm LED mount/holder

This is a holder for 5mm LEDs to mount them on top of a box or a panel. The design has no screws so it's basically a one-time use solution.

You will also need a 8mm drill hole on your panel/box to fit the holder in.

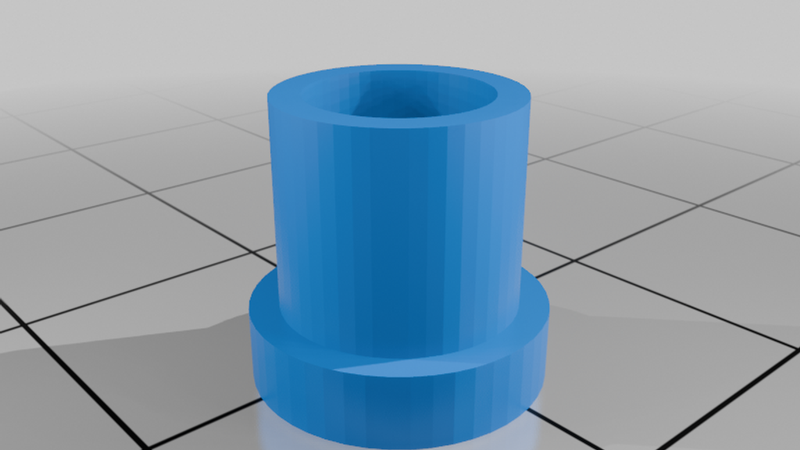

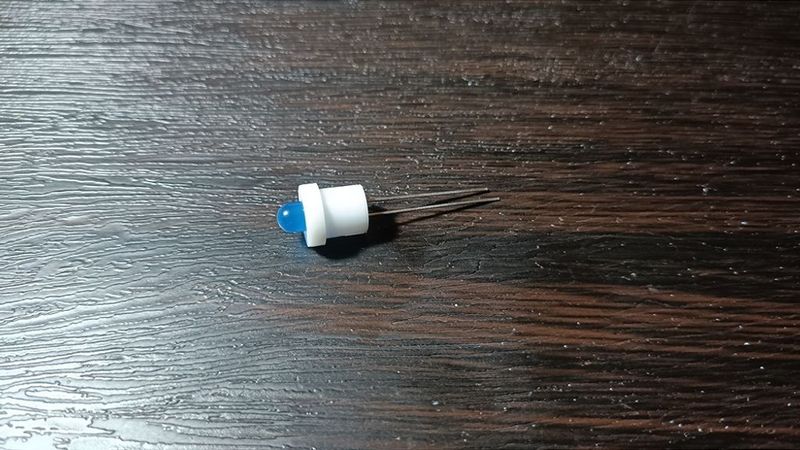

> The LED goes into the part "main.stl"

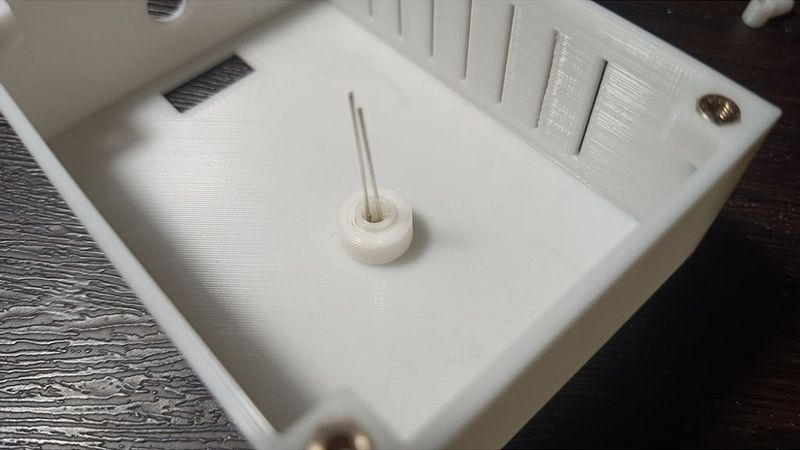

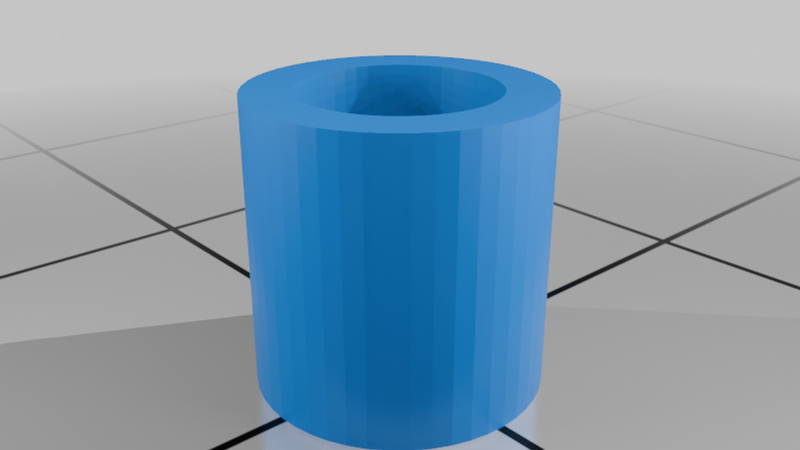

> Then "inside.stl" goes after it to fix it inside

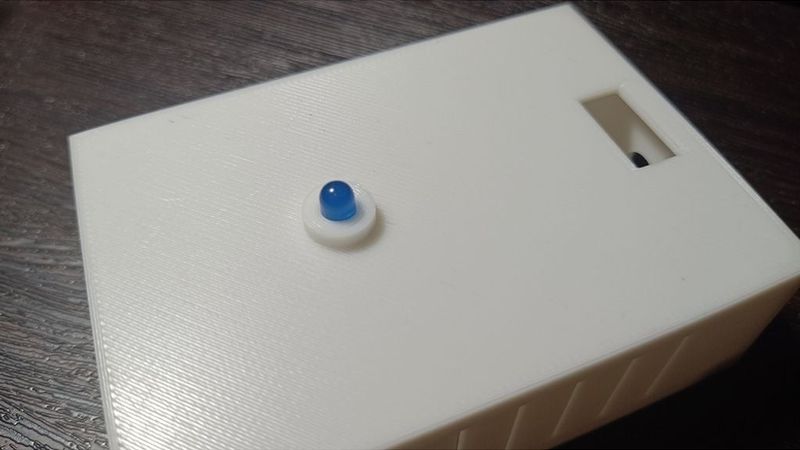

> Then you mount it on your box with a 8mm drill hole

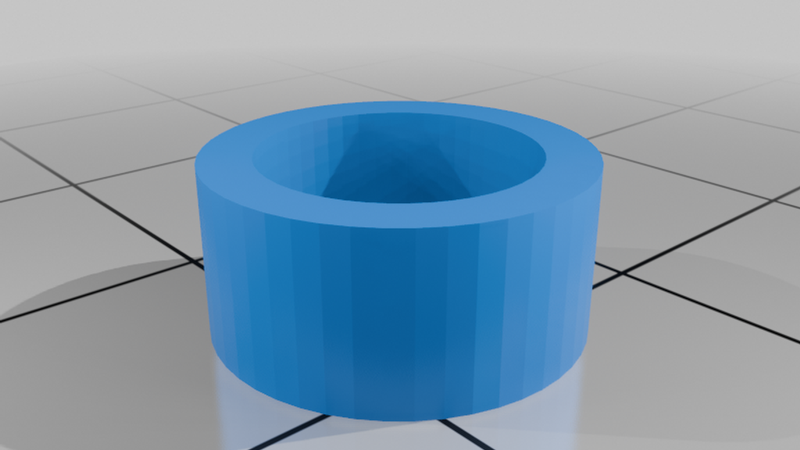

> Then you put the "outside.stl" to fix it in place.

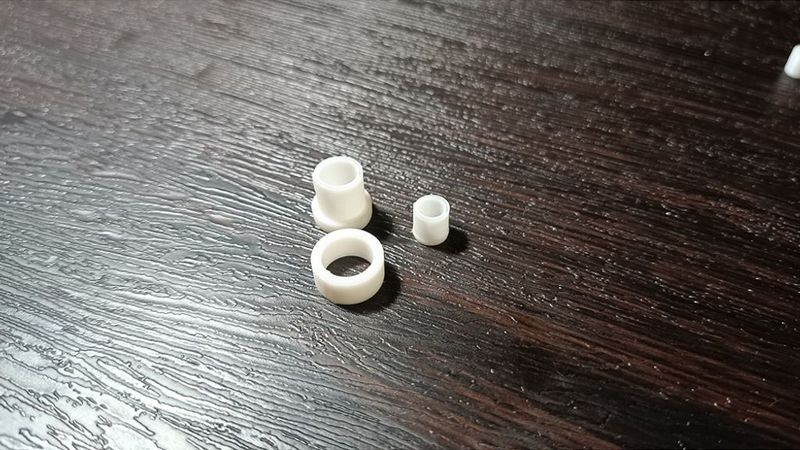

Refer to the pictures in case instructions are unclear.

Print settings:

Since the wall is 1mm thick it is recommended to use 0.5mm Line Width settings

Also it is recommended to print this in 0.20mm Layer Height or more so that the layer lines will protrude and create a grip between the parts that are supposed to fit inside each other.
