**BETA VERSION** The Beehive - Case for SKR Mini E3 & Mosfet Board

BETA VERSION MODEL - This is still in process of initial testing although it's nearly done. It's up for early or adopters, the brave, and tinkerers

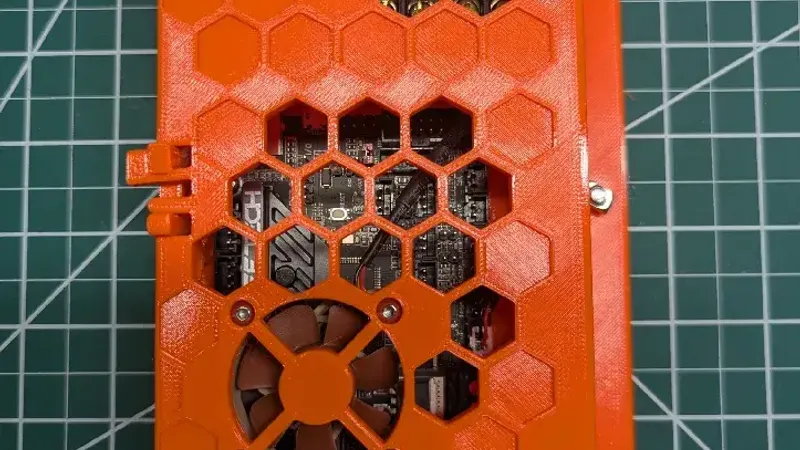

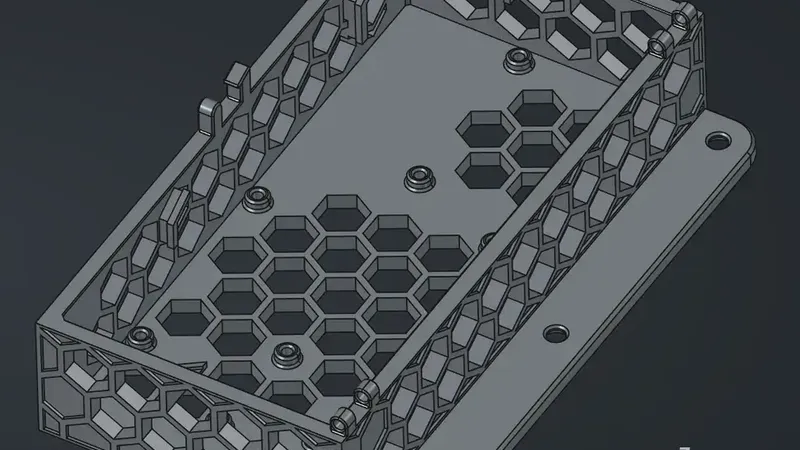

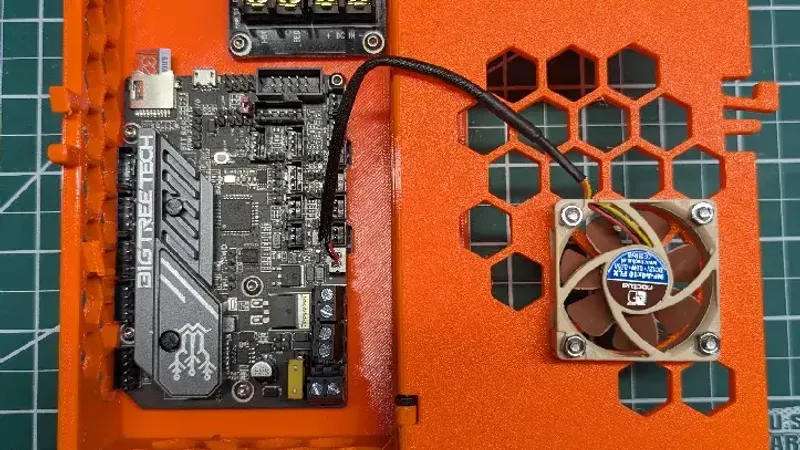

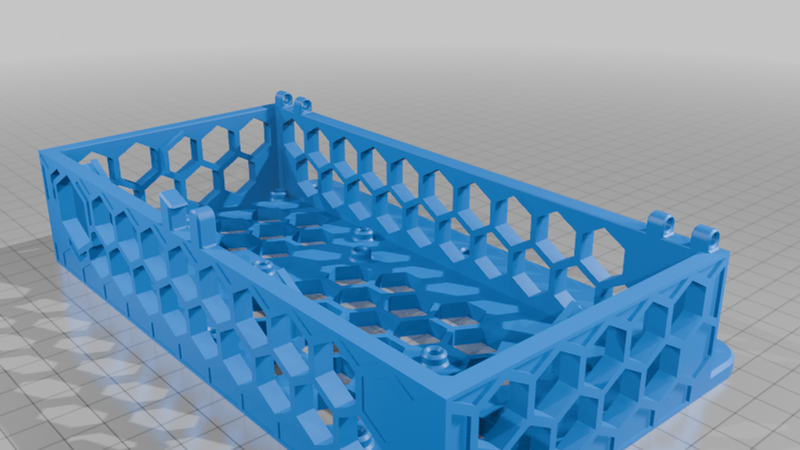

This is a case for the BTT SKR Mini E3 & a MOSFET PCB board to drive a hotbed. It has been used with the E3 v3 although I believe the V1 & v2 have the same mounting hole pattern. It has a hinged door with a mounting spot for a 40x10mm fan. It mounts to 2040 aluminum extrusion rail. It was designed for my modified AM8 printer but can be used on any other printer.

Features:

Mounts for a 40x10mm Fan

Enclosure for BTT SKR Mini E3

Enclosure for a Mosfet Board

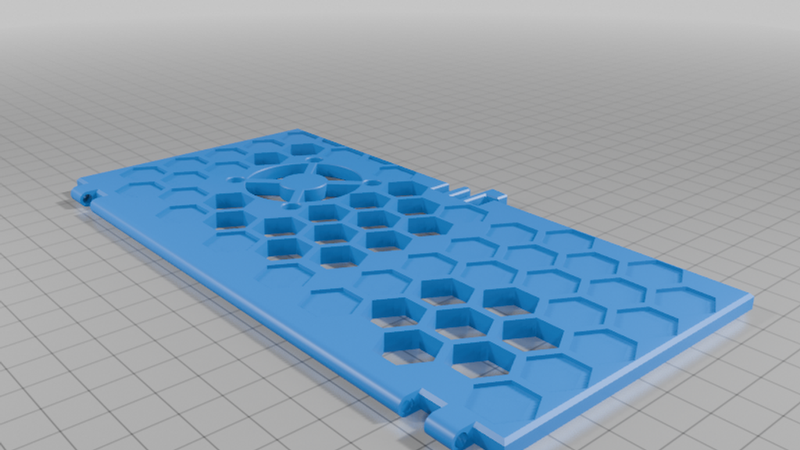

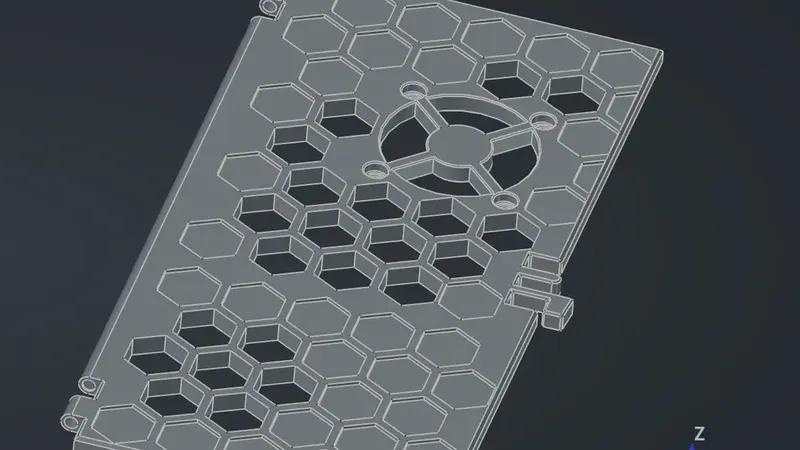

Hinged door with snap fit latch

Hexagon cooling holes

Wiring Pass through holes with ledges for zip ties

Hardware:

Qty x3 M5x8 Bolts for mounting to the 2040 extrusion

Qty x3 Post Assembly M5 T Slot nuts

Qty x2 M3x20 Cap Head bolts for the hinges

Qty x4 M3x16 Cap or Button head bolts to mount the fan

Qty x9 M3x10 Cap or Button head bolts to mount the PCBs

Qty x13 M3 Nuts for mounting the boards and fan
