Wiijoy Nunchuck to Classic Console/Computer Interface Enclosure

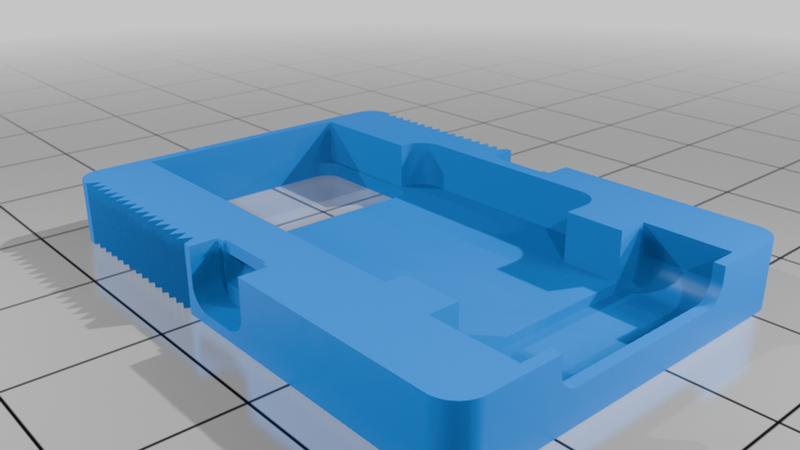

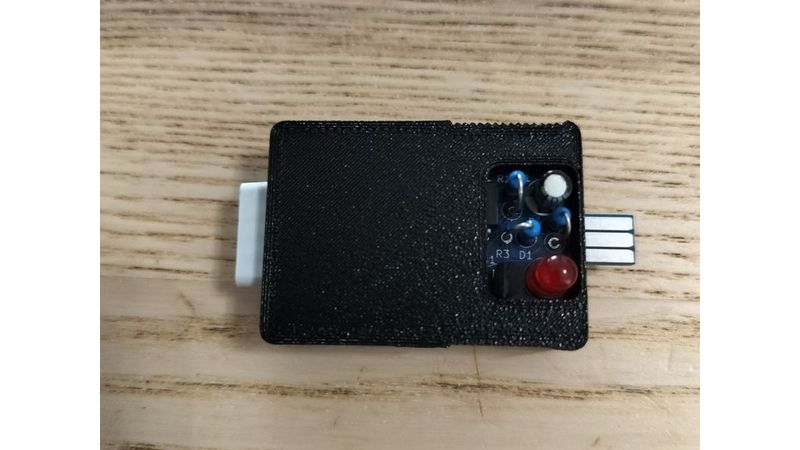

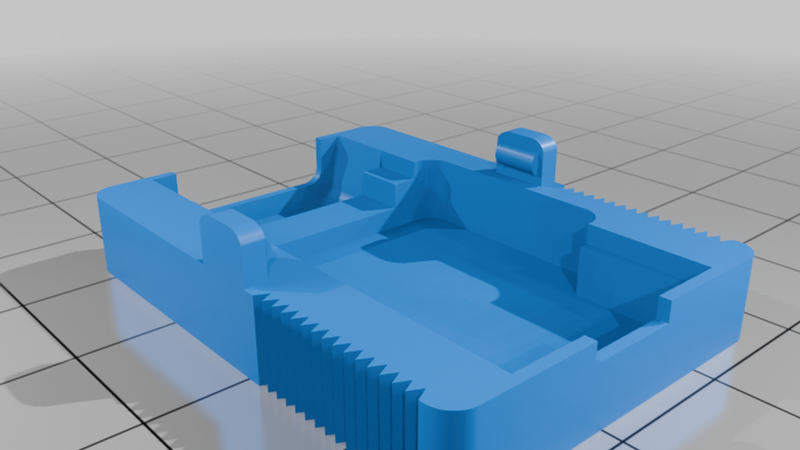

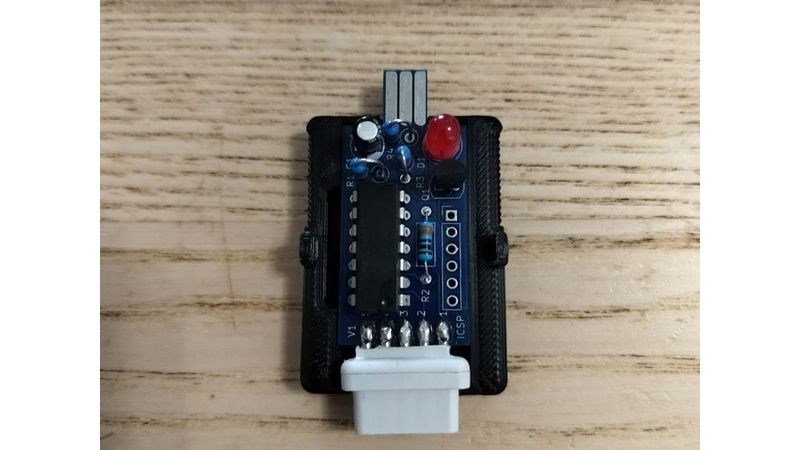

This is a case I designed for a Wiijoy interface. It requires removing the shroud from the DE9 connector for use as I modeled it to ensure compatibility with the Atari 7800. I left as much room as I could on the top and bottom of the board along with a wiring chase to accommodate rapid fire and paddle modifications. The boards and programmed PICs are out of production at this time but the source files are available at https://github.com/qoq/wiijoy. I am not the creator of the Wiijoy project or associated in any way, I just wanted a quick and easy enclosure for my board. My DE9 is flush against the PCB and I modeled around that as a default. You can likely scale the models to accommodate your board if you left a gap.
