Rear Dash Camera Mount
Description
This is a mount that should fit most generic rear dash cams. Dimensions of the existing camera bracket should be verified before printing.

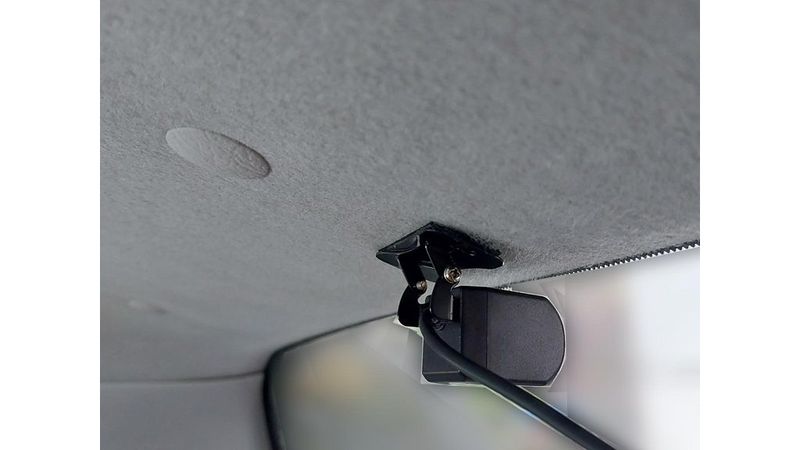

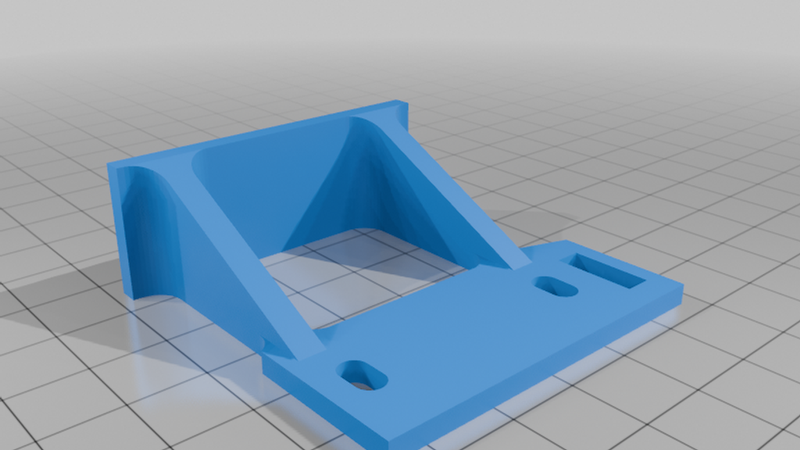

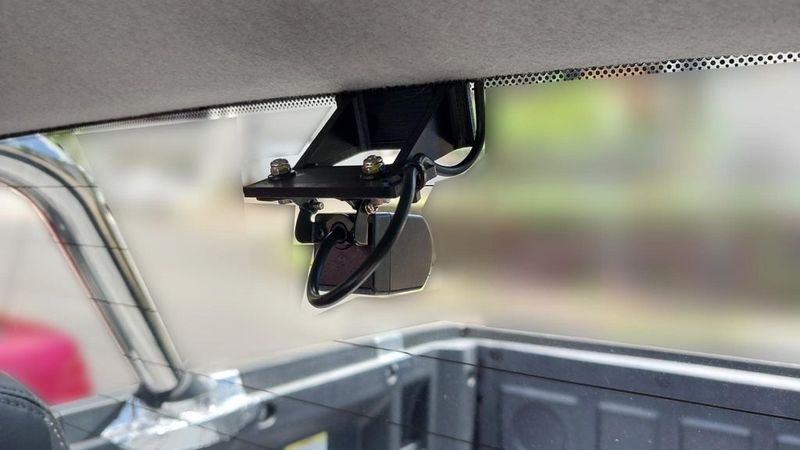

The previous owner had Best Buy install a budget dash camera and unfortunately all they did was just dangle it from the headliner with a cheap off-brand velcro strip. This caused the camera to move around quite a lot and I was concerned that it may at some point come swinging down and potentially smack the glass. I opted to make a rigid mount which adhered to the rear window that the existing camera bracket could then attach to. This mount also includes a spot to add a zip-tie on the the right side for strain relief.
If you found this model helpful, please consider heading over to my Ko-Fi page to support my Save The Baja project! Even if you don't tip, there will be plenty to see and read as work continues. :)
This was printed in Elegoo Rapid PETG and so far it's worked well for this application.
Hardware Used:
> 3M VHB Heavy Duty Mounting Tape -- Cut to length of ~50mm.
(Tape Roll Dimensions: Width 0.75in [19.1mm], Thickness 0.045in [1.1mm])
> 2x - M3*10 Stainless Hex Head Screws
> 2x - M3 Stainless Nyloc Nuts
> 4x - M3 Nylon Washer (Doesn't have to be nylon, it's just what I had on hand.)
> Small Zip-Tie
> Existing Camera & Bracket
