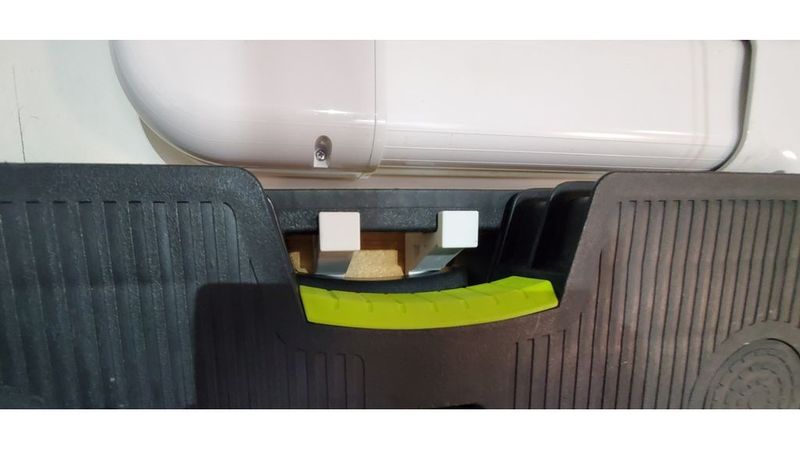

Mounting hook for Keter Pro Series folding work table 5016477

Mounting hook for Keter Pro Series folding worktable 5016477

====================================================

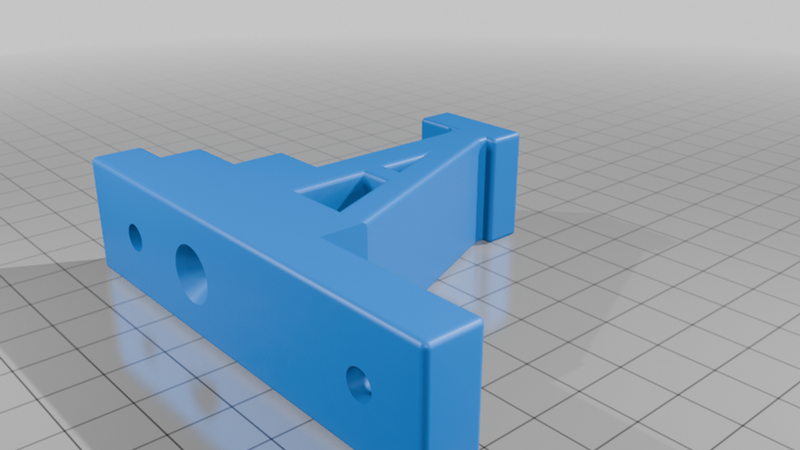

The depth off the wall is a bit much. I wanted to add some rigidity and peace-of-mind. 2-1/2 inch screws were the longest had, I made a pocket on the back side to take a #10 2 1/2 wood screw. The other two use 1-inch long #10 wood screws on the face side, into a strap board. These were sized to fit the height of "1x4" common board here in the US. Print two and space 72mm a part or less. You should use longer screws if you have blocking to allow mounting directly to the wall.

I printed using white PLA as I didn't have PETG loaded in my printer. The temperature doesn't get that hot in my garage.

Total print time is roughly 3 hours on my AnyCubic Kobra S

TL;DR

1. Print 2

2. install #10 x 2-1/2 screw in back

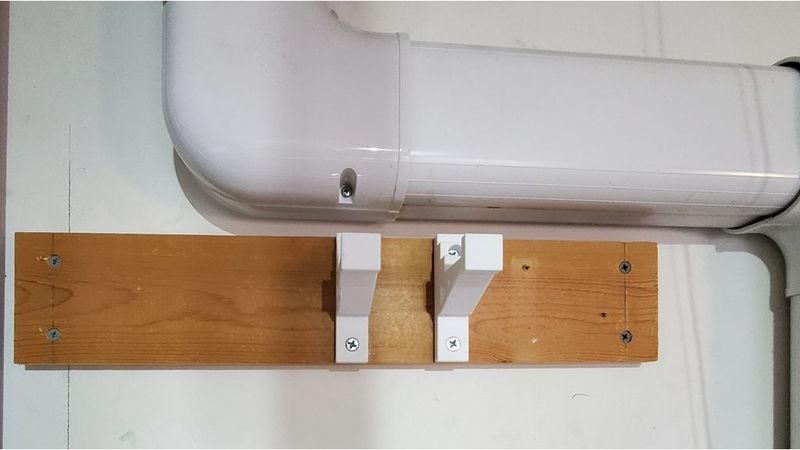

3. mount to strap board with #10 x 1 crews, separated by 72mm or 2-13/16 inches.
