Case and mounting option for ESP32 dedicated camera module (26,5 x 10,5 mm)

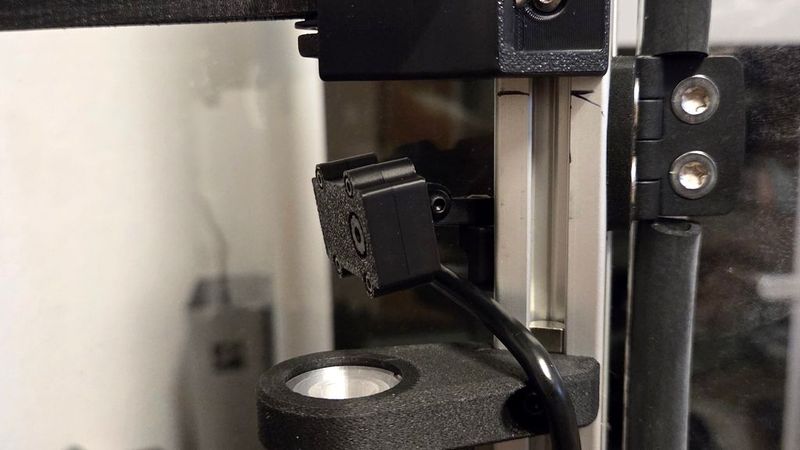

I bought some ESP32 dedicated camera modules (USB-C and those 4 pin ones) from AliExpress for my 3D printers and needed an appropriate case and mount for those.

A couple hours later this model was born and printed.

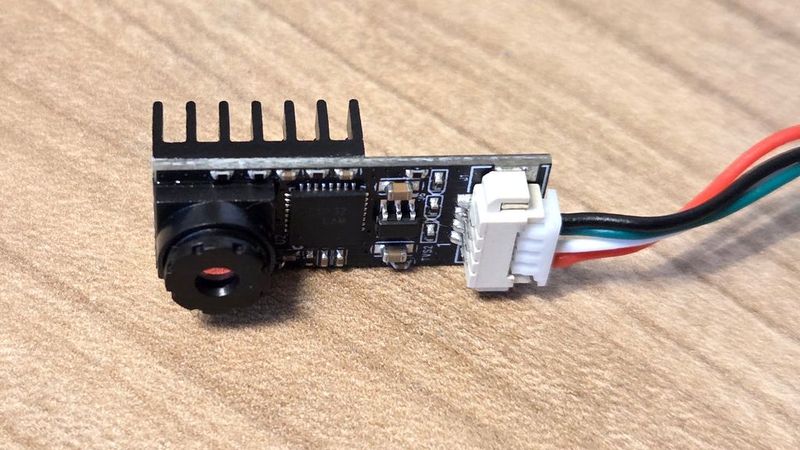

The camera module is 26,5 x 10,5 mm and originally without the heatsink on the back. The heatsinks are 10 x 14 x 6 mm and properly fit onto the back of the camera that becomes quite warm. The camera works well with Windows and Klipper.

<h5>BOM</h5>

• heatsink 10x14x5 mm - optional but recommended
• douple sided adhesive tape
• 4x socket head screws M2x8
• 3x M3 threaded heat inserts with 5 mm height
• 2x button head screws M3x8
• 1x button head screw M3x10

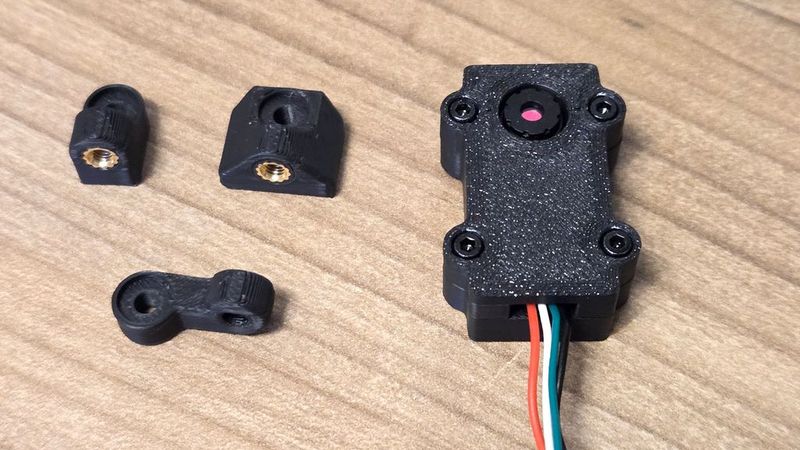

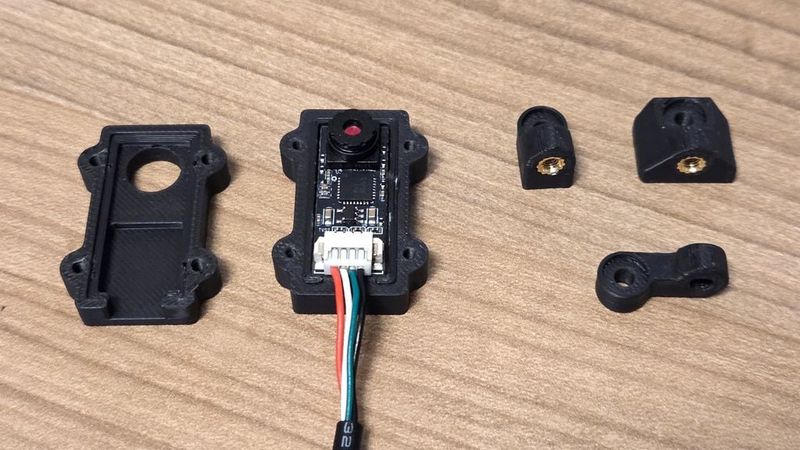

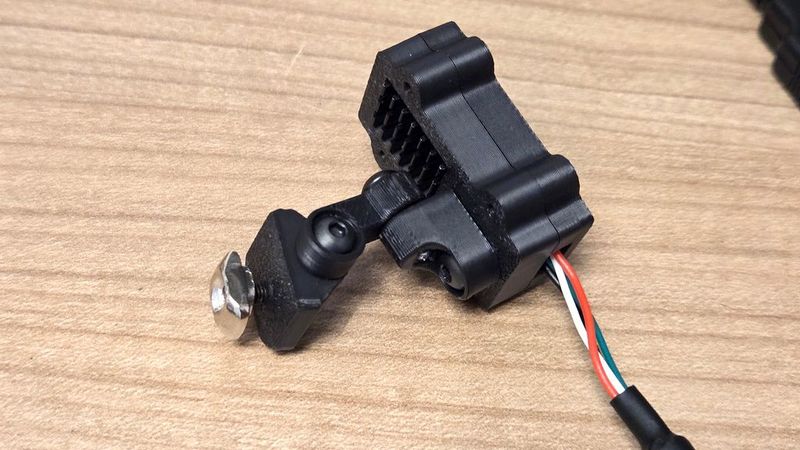

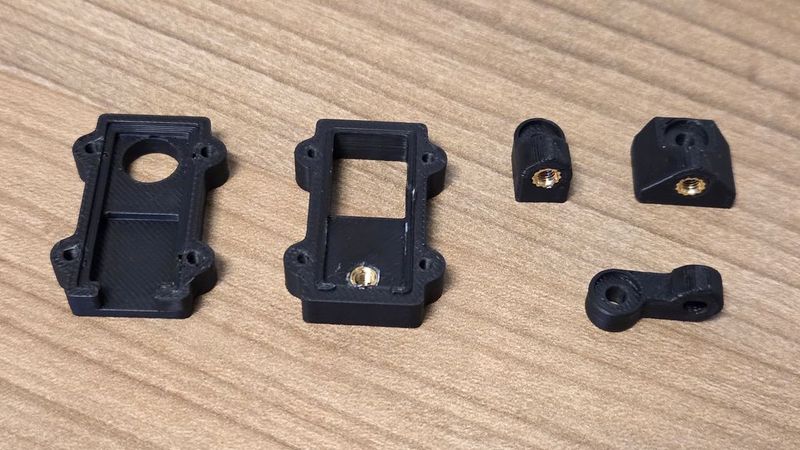

Please check the photos for assembly. The camera module is fixed with the double sided adhesive tape on its back to the case bottom part.
