Skadis-Mount Neptune Max Controller

The "Off the Bench, Onto the Pegboard" Neptune 4 Max Controller Mount 🎯

The Elegoo Neptune 4 Max's touchscreen controller detaches from the printer — which is great, until it's just sitting loose on the bench eating up space. I wanted it relocated somewhere accessible without cluttering the work area. So I designed this.

🟩 𝗪𝗛𝗔𝗧 𝗠𝗔𝗞𝗘𝗦 𝗜𝗧 𝗪𝗢𝗥𝗞

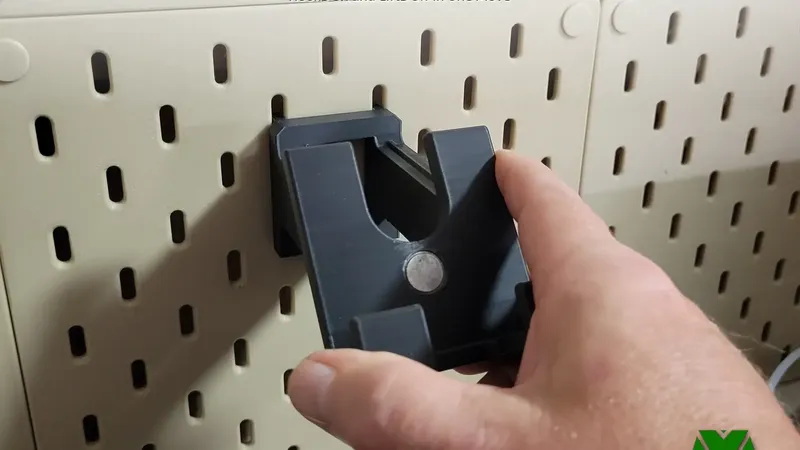

▸ 𝗛𝗼𝗼𝗸𝘀 𝗥𝗶𝗴𝗵𝘁 𝗢𝗻𝘁𝗼 𝗦𝗞𝗔𝗗𝗜𝗦 — Designed to hook directly onto the IKEA SKADIS pegboard system. No adhesive, no extra hardware.

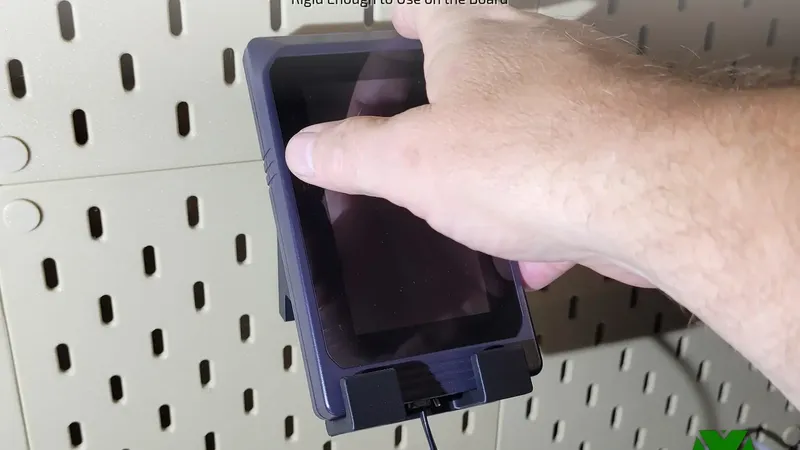

▸ 𝗖𝗼𝗻𝘁𝗿𝗼𝗹𝗹𝗲𝗿 𝗢𝗻𝗹𝘆, 𝗡𝗼𝘁 𝘁𝗵𝗲 𝗣𝗿𝗶𝗻𝘁𝗲𝗿 — Built specifically for the detachable touchscreen control unit, not the printer body itself.

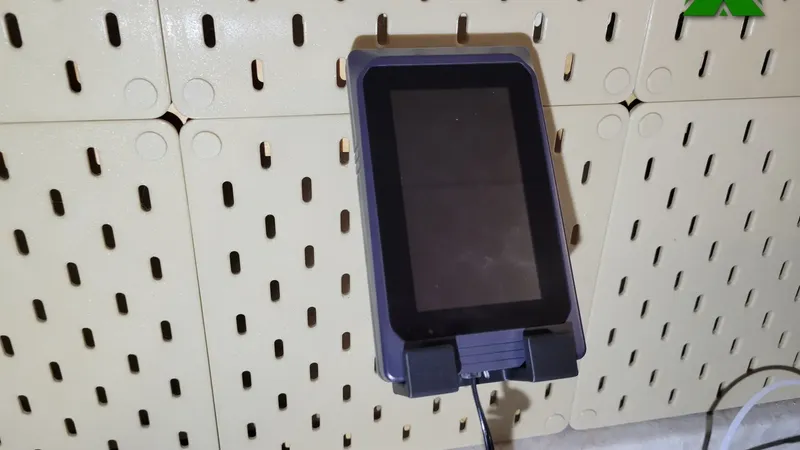

▸ 𝗢𝗳𝗳 𝘁𝗵𝗲 𝗕𝗲𝗻𝗰𝗵, 𝗦𝘁𝗶𝗹𝗹 𝗪𝗶𝘁𝗵𝗶𝗻 𝗥𝗲𝗮𝗰𝗵 — Relocates the controller to the pegboard, keeping it fully accessible without eating up bench space.

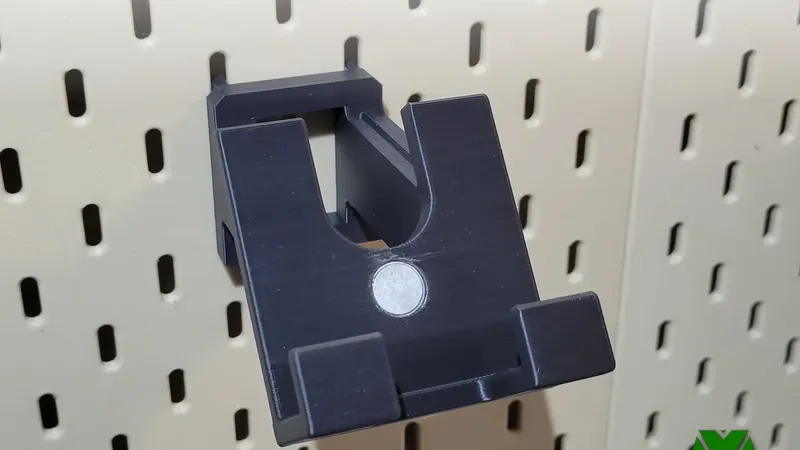

▸ 𝗢𝗽𝘁𝗶𝗼𝗻𝗮𝗹 𝗠𝗮𝗴𝗻𝗲𝘁 𝗣𝗼𝗰𝗸𝗲𝘁 — A 13.0 x 3.2mm recess in the cradle face takes a 1/2 in x 1/8 in disc magnet. Add one with a drop of superglue, or leave it empty. The mount works either way.

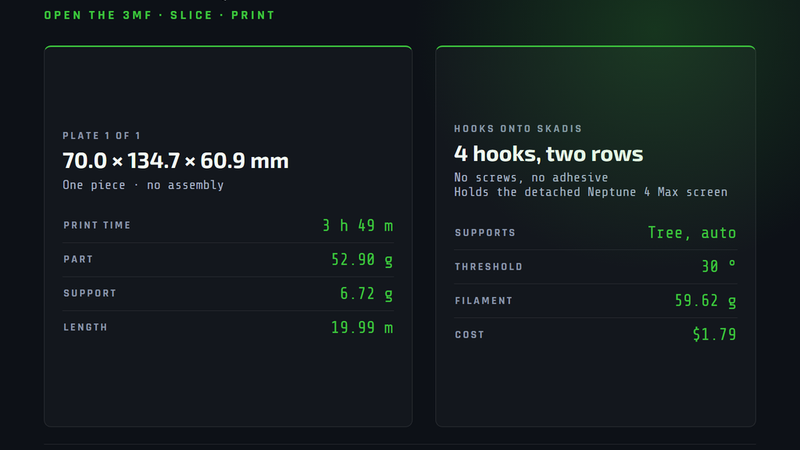

🟩 𝗣𝗥𝗜𝗡𝗧 𝗦𝗘𝗧𝗧𝗜𝗡𝗚𝗦

Tree supports required · 0.12mm layer height · PLA

Happy organizing! 🎯
