Janthina FPV Lightweight Drone 3.5 Inch Frame
Description

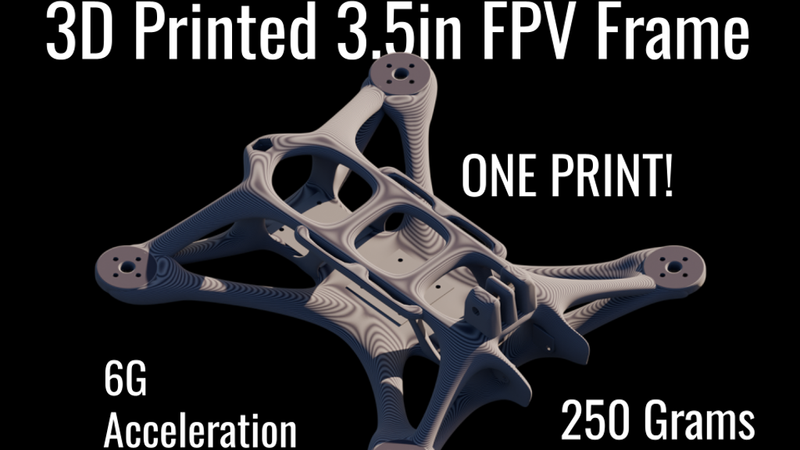

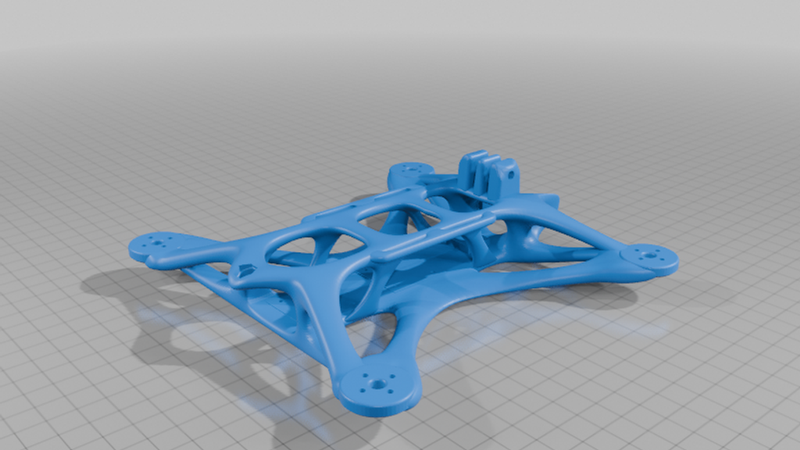

This drone features a custom FDM 3d printed design that optimizes impact resistance. Through thorough testing through real world crashes and iterative design I settled on this design made with an impact resistant polycarbonate filament. The drone features a 4S lithium-polymer battery and high-kv motors allowing it to accelerate with over 6Gs of force.

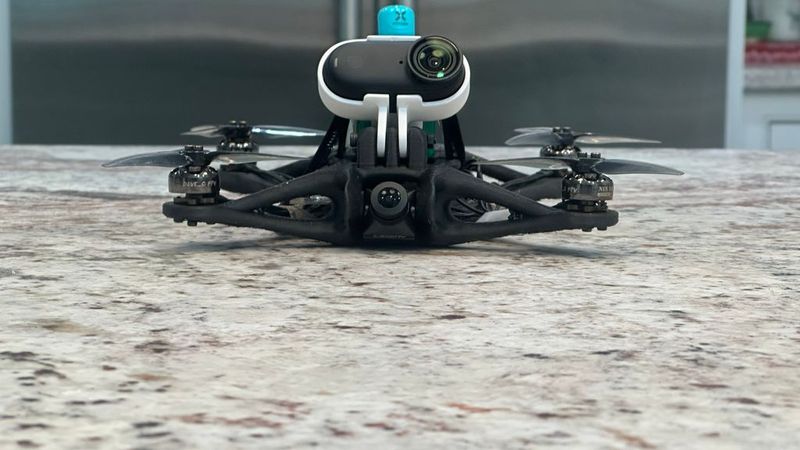

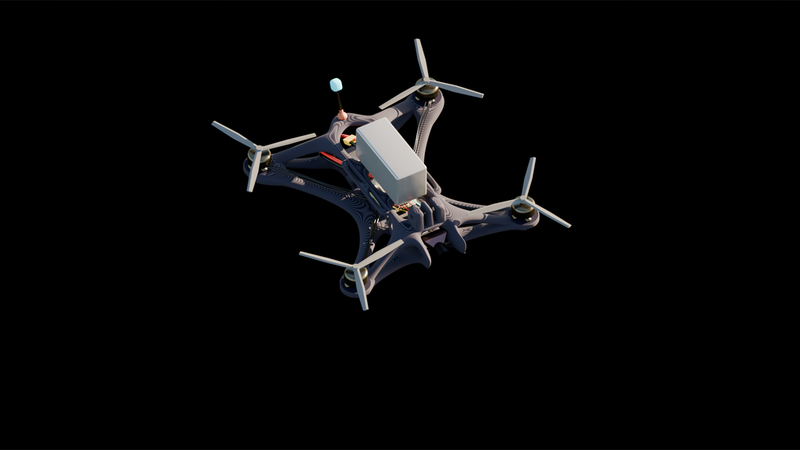

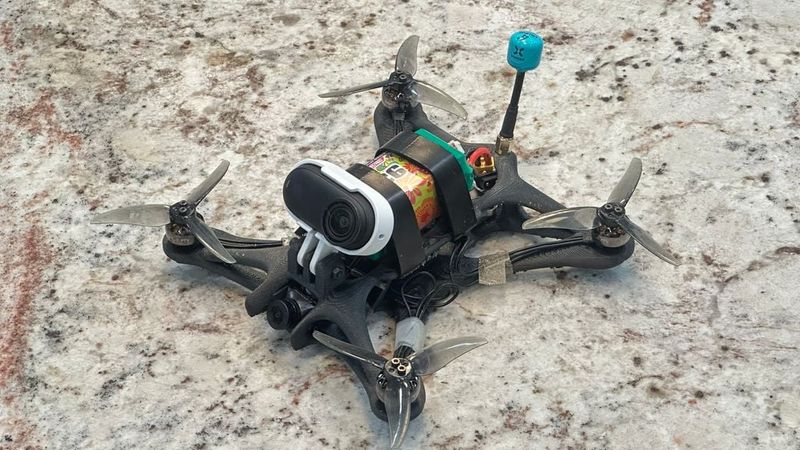

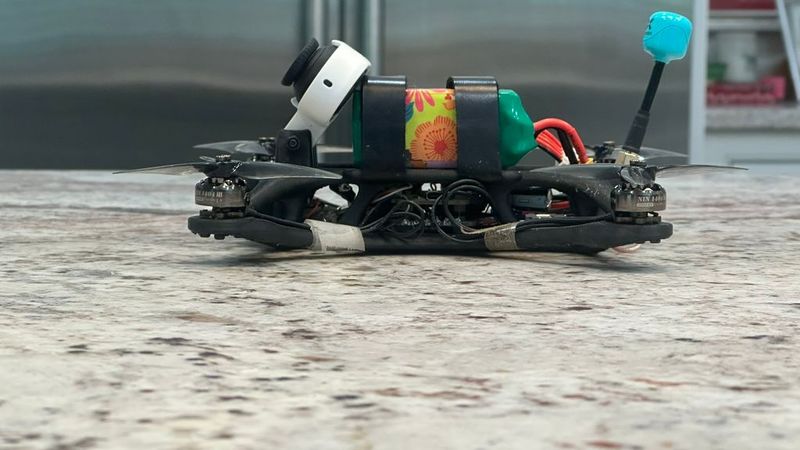

The design features attachments for a 20x20mm VTX and FC/ESC stack, a mount for an insta360 or Gopro, 12mmx12mm motor mounts, and an impact resistant body. With an 850mAh battery, the drone weighs less than 250 grams (meaning it exempt from FAA rules such as drone registration and remote ID).
Print settings: 5 wall loops, 25% gyroid infill, tree supports. Use a small screwdriver to remove the supports that fill the screw insets on the bottom.
Parts list:
Motors: NIN 1404 V2 ULTRALIGHT
ESC: GOKU G45M 32BIT ESC
FC: GOKU F722 Pro Mini V2
VTX: SpeedyBee TX ULTRA
Camera: CaddxFPV Ratel2
Radio Reciever: Flywoo TCXO 2.4G ELRS
Battery: GAONENG GNB LiHV 4S 15.2V 850mAh 120C
