Compact Single ESC Mount

Compact Single ESC Mount

Secure one compact ESC and its wiring in a small two-screw holder for cleaner RC, robotics and electronics builds.

Check out my app: link

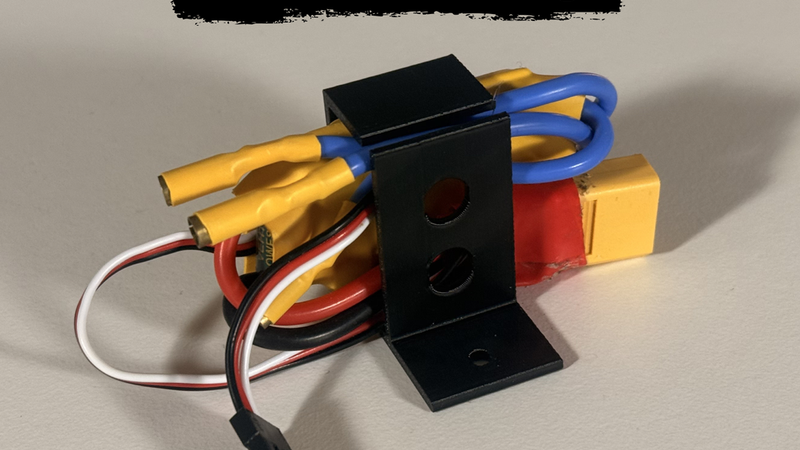

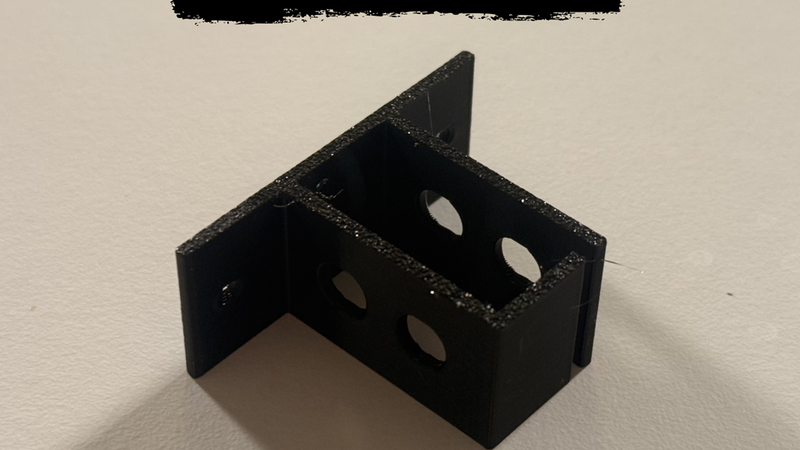

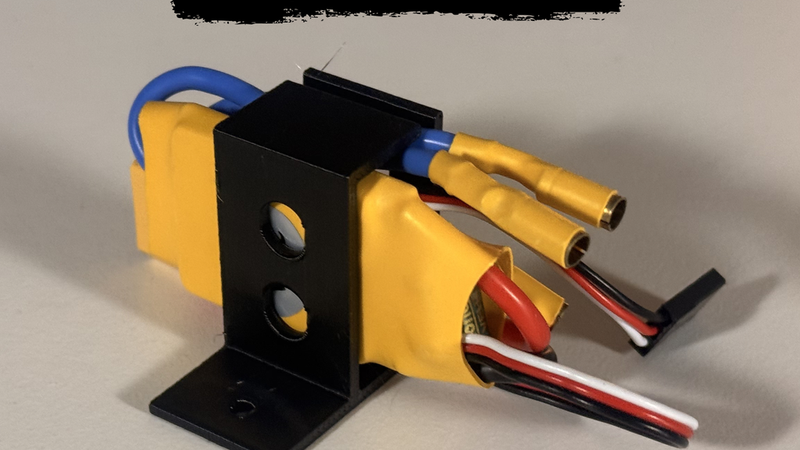

A loose speed controller can move around the build, pull on its wiring and make servicing the electronics awkward. I designed this compact holder to capture one ESC, keep the connected leads together and provide a simple mounting flange with two screw holes.

Key details

• Capacity: one compact ESC module
• Overall size: 49 x 20 x 34 mm
• Two mounting holes: 3 mm diameter
• Open sides keep the wiring accessible
• Compact flange for mounting to a panel or frame

Files included

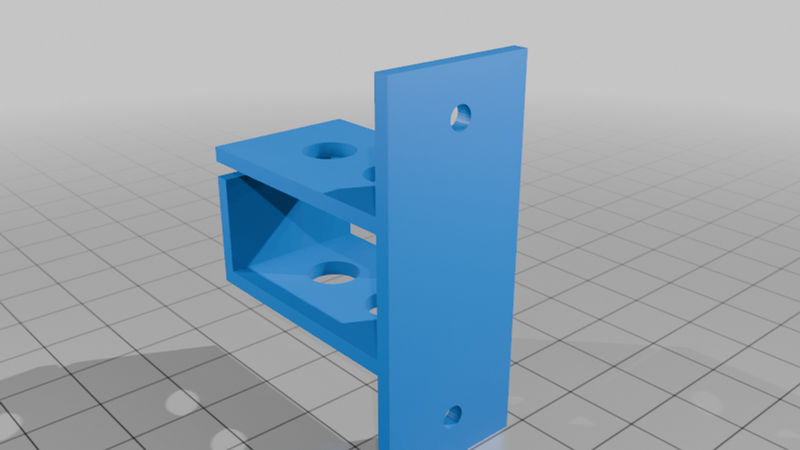

• m93_esc_single_holder.stl - standalone single ESC holder

Important

This is the single version for one ESC. The dual ESC holder is the separate M45 model. ESC dimensions and cooling requirements vary. Measure the module before printing, keep heat-sensitive components ventilated and choose suitable mounting hardware.
