USB-C IR Sensor Bar for Wii controller

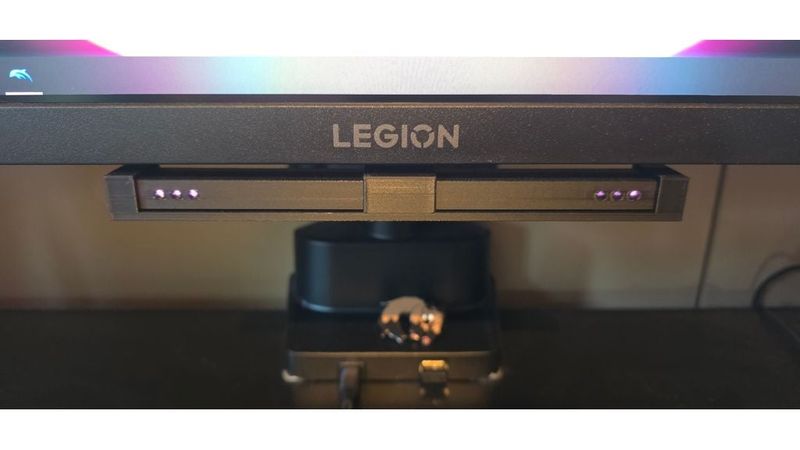

Designed mainly for emulator use on PC. LEDs spaced closer together than in the official sensor bar to make it work optimally at around 1 - 1,5 meter distance.

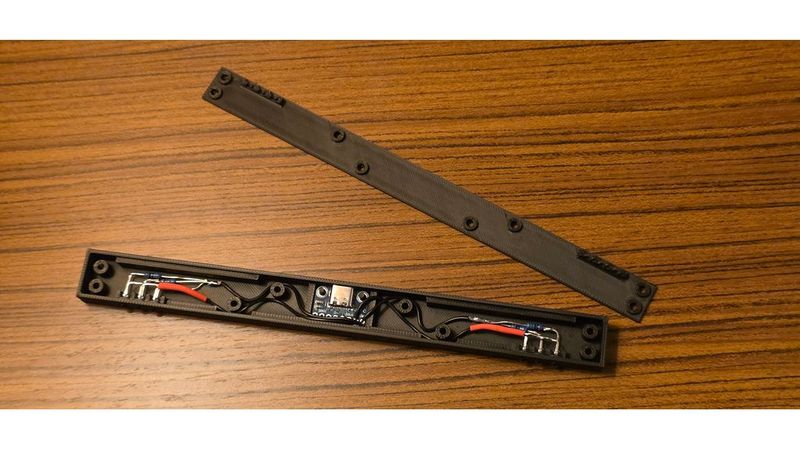

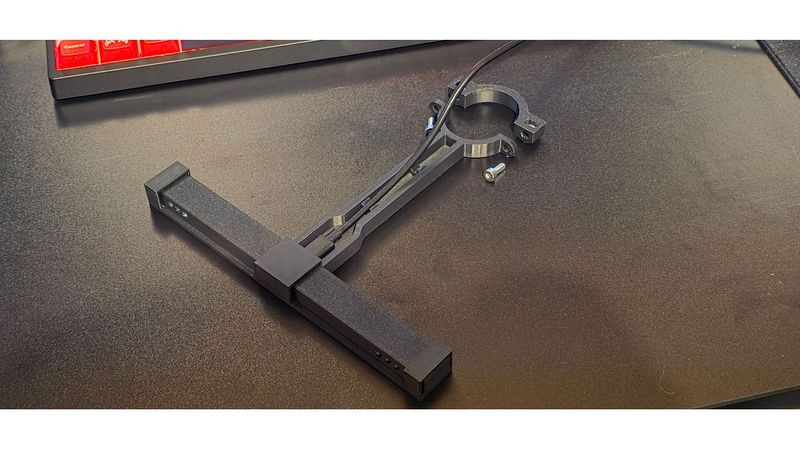

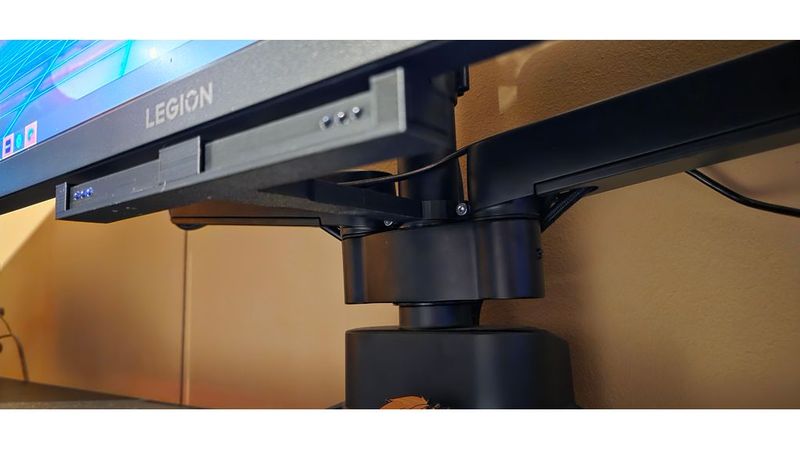

Included in the files are a jig to help with soldering the LEDs with correct spacing outside of the case, and a very basic mount for a monitor stand with a 35mm pole.

Materials required:

• Adafruit USB Type-C Breakout board, or a clone with the same dimensions.
• 6x 3mm 940nm IR transmitter LEDs
• 6x 150ohm resistors
• 8x 2,5x8mm countersunk screws
• Some wire

Additionally for the mount:

• 2x M4 bolts
• 2x M4 nuts

Wire all of the LEDs in parallel with a resistor for each individual LED.
