Droidlink DS650 Controller Mount

JakeRStock
1 File
stl Format

Description

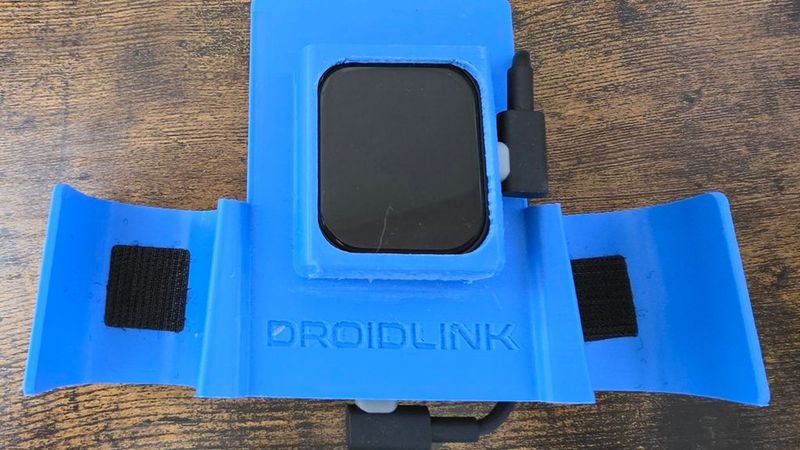

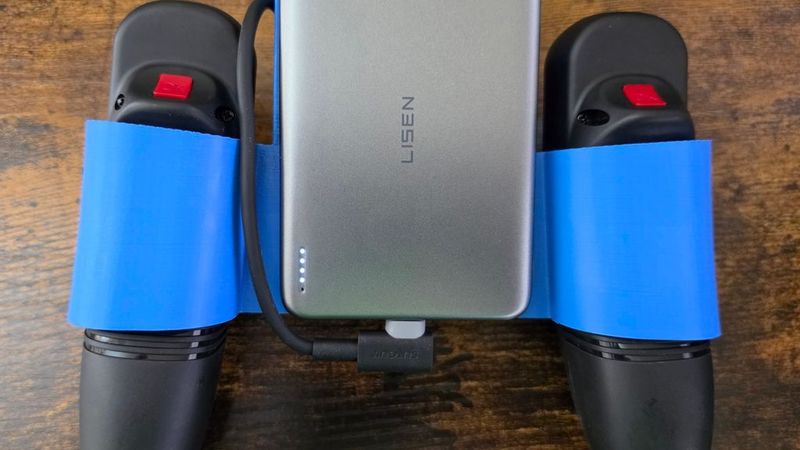

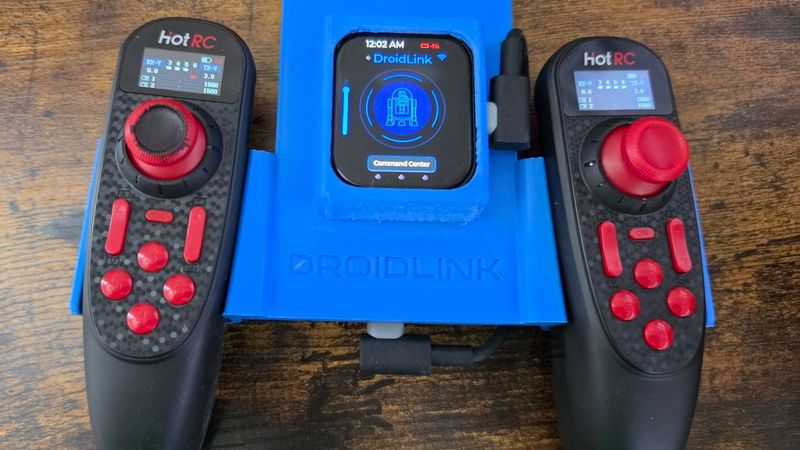

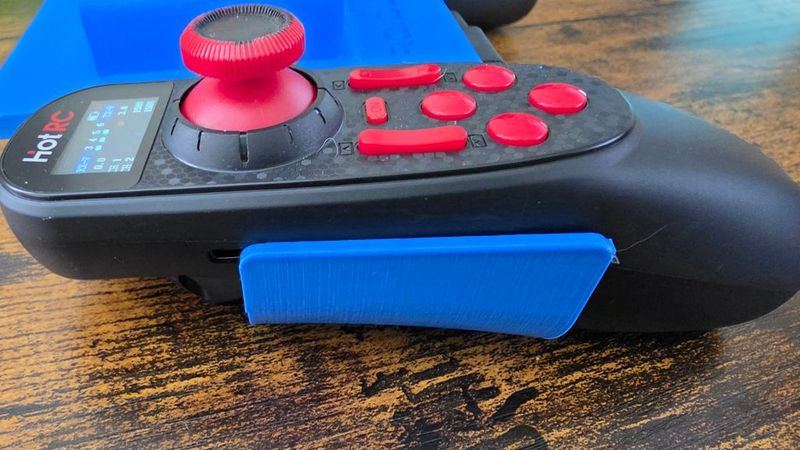

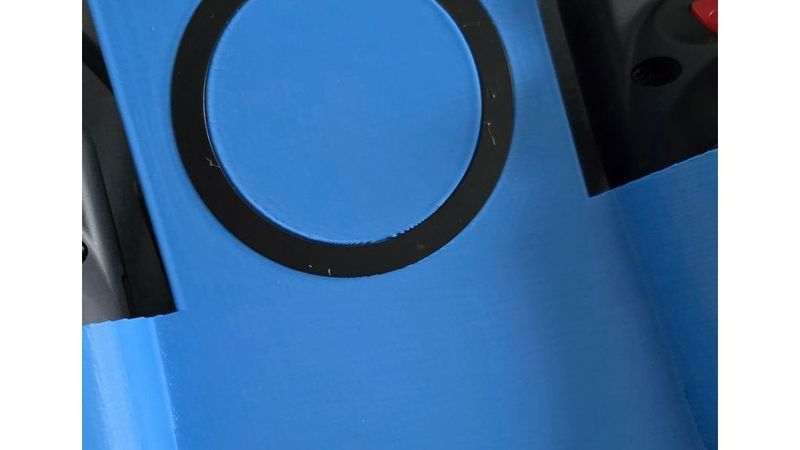

I made a controller mount for the Droidlink system for an R2D2 astromech droid. It uses 2 HotRC DS650 controllers and the Waveshare ESP32-S3 2.06 inch Watch. The stock watch case slides in the mount and hold in well with friction. You can purchase the watch with an internal battery or without. For my purposes I was only able to get the model without the battery and decided to power it with a Magsafe power bank. The back features a slot for a Magsafe ring that is 55mm OD x 45mm ID. I removed the adhesive off the back of the ring and used two part epoxy to glue in place to ensure it will hold. I used the power bank listed below but I believe any Magsafe powerbank 4 inches or under should fit well. I used some of the pre-cut Velcro squares on the back of each DS650 controller to hold in place.

Waveshare ESP32- S3 Watch:

https://www.amazon.com/dp/B0FJFNXGNX?ref=ppx_yo2ov_dt_b_fed_asin_title

Right Angle USB-C:

0.5 Ft

https://www.amazon.com/dp/B0FX2PL9XF?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Magsafe Ring:

55mm OD x 45mm ID

https://www.amazon.com/dp/B0CY1ZB8YB?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Magsafe Battery Power Bank:

https://www.amazon.com/dp/B0G241ZP3B?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Downloads

Droidlink_S3_2in_Screen_Controller.stl
3.0 MB
