EBB36 Toolhead Mount Bracket for Ultra-Lite LK5 Pro Satsana-Style Toolhead - INCLUDES 4010 Cooling Fan Mount!

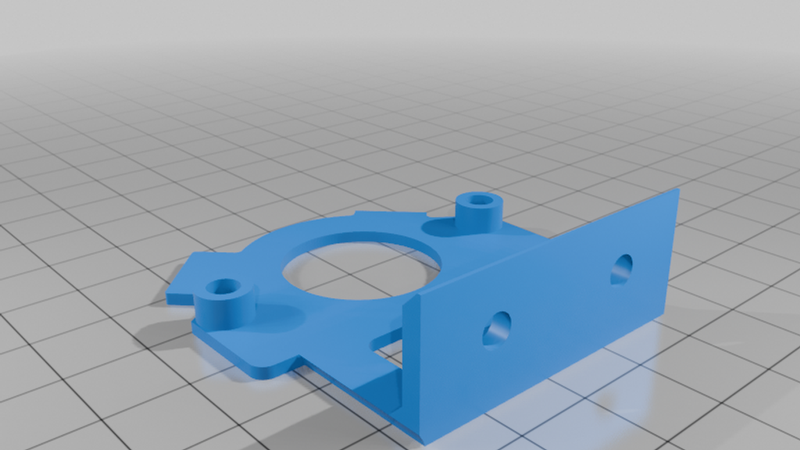

This is the optional addition to my ultra-lite toolhead mount for the Longer LK5 Pro. This bracket contains the EBB36 CAN bus board, as well as TWO JXT-xh splitter mounts. I use one for the two 5015 part cooling fans, the other runs the hotend fan and the rear-mounted 4010 fan that helps keep the EBB36 cool. Please reach out with any questions!!

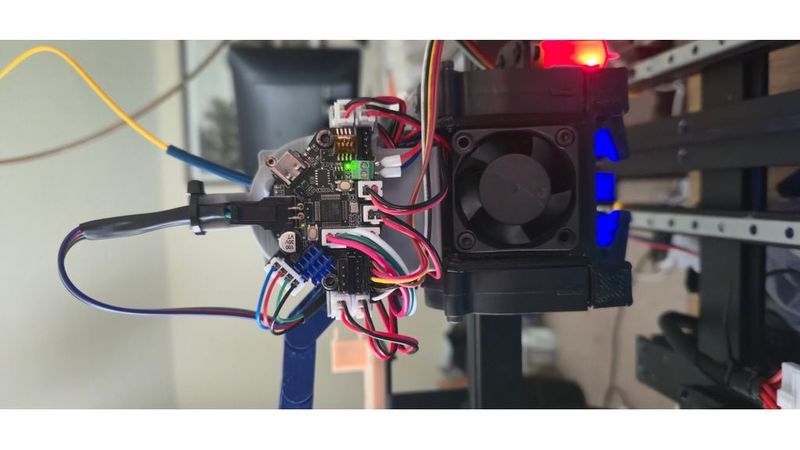

I thought it would be pretty cool to use an old 4010 fan I had laying around to help keep the CAN bus board cooler, without adding very much weight.

You will need to solder two JST-XH connectors together for each side of the bracket to allow you to minimize wiring and make the best use of this bracket.

Please consider supporting my work by using any of the links below, or by donating through the link on this page. Thank You!!

• I found this self-adhesive, cuttable led strip light and it is BRIGHT. I highly recommend cutting just one section - 1.5" - and soldering your own wires onto it, as the one set of attached wires is quite stiff and will tend to try and pull the light off the shroud. See photos for recommended placement and wire routing. [https://amzn.to/4gfsp2V](COB LED Strip Lights Daylight White 6000K,16.4ft 24V High CRI 95Ra+ Super Bright,Flexible Tape Lights)
• The hole for the small round light remains, should you want to use it.
• I added a small hole inside the shroud to mount this 24v LED: https://amzn.to/4bdA5PF - it is just bright enough to illuminate the print head so you can see a little bit of what is going on under there (I will probably continue to work on this to add another or larger/brighter light).
• I just connected the power leads to the primary (always-on) cooling fan power so that it comes on whenever the machine is powered on. To connect the two I installed JST XH 2.54mm female connectors with this kit: https://amzn.to/44pqBNP and plugged them both into this inexpensive y-connector: https://amzn.to/4waYygA

Everything fits nicely in the drag chain assembly.

• The TZ-E2-2.0 hotend is performing amazingly; I have doubled my print speed compared to the red Mk8 all-metal hotend that I replaced. You can find it here: https://amzn.to/4wjKuSa ; or for less on AliExpress if you're more patient than I am!

Other items/consumables I used:

• Brass heatserts with soldering tip adapters: INCLY 440PCS Threaded Inserts Set with Soldering Tip & Adapter, M2 M2.5 M3 M4 M5 M6 Female Thread Metric Knurled Nuts Assortment Kit，Brass Hardware Nuts for Plastic and 3D Printing Component
• The soldering iron I used (I really like this one, 80w so it heats quickly and doesn't struggle with thermal mass; I use it for PCB repair as well): Soldering Iron Kit, 80W 110V LCD Digital Solder Iron Pen with Ceramic Heater, Portable Welding Tools with 5pcs Tips, Stand, Solders Wire, Sponge, Paste, for Metal,Electric Repairs, DIY
• M2-5 assorted bolts and nuts (I like the black ones, but they have size assortment packs in either black or stainless): 2196Pcs M2 M3 M4 M5 Screws Assortment Kit,Hex Socket Head Cap Screws Bolts Nuts Washer Set,12.9 Grade Alloy Steel,Black Oxide for 3D Printer,DIY Project
• Bemaka 260Pcs M5 T Slot Nuts Screws Kit, Nuts and Bolts Assortment Kit, M5x8/10/12/16/20mm Hexagon Socket Screws for 2020 Series Aluminum Extrusion Profile, Mlok Screw Nut Replacement

These were all available either same- or next-day delivery to me.
