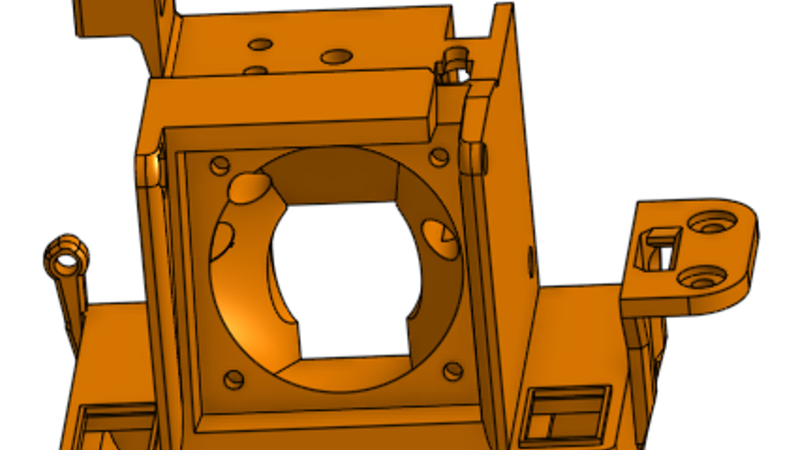

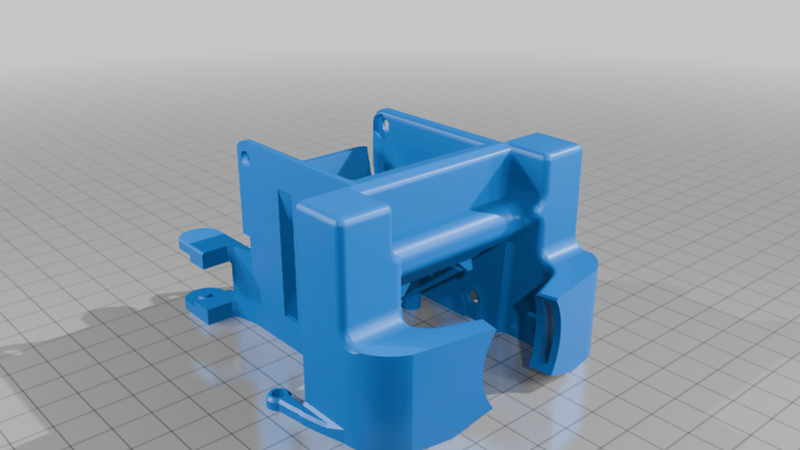

Ultra-Light Dual 5015 Satsana-Style Toolhead for Longer LK5 Pro - HGX-Lite V2.0 Clone - EBB36 Compatible

I have remixed/modified/redesigned a dual 5015 Satsana-style toolhead so many times at this point, that I believe this is essentially a new design. This toolhead shroud is designed specifically around the stock Longer LK5 Pro Dual Part-Cooling fan carriage plate. It should also work vey nicely with other Longer LK models, as well as the Ender 3 and CR-10 series carriages (possibly some minor modification required; contact me for help, if needed)

This part can be printed in under 2 hours Without Supports

This toolhead shroud accommodates the TZ E3 2.0 and 3.0 hotends naturally, but should work with any other MK8 style hotend without major modification. A 3DTouch mount is integrally included as part of this rendition of the design. 3D Touch offsets are 53.4 X and 1.0 Y.

As with my other models, I have included a drag chain mount, but this one has it repositioned to utilize the x-axis space exclusively. See linked models for the x-stepper cover that is compatible with this setup.

I am particularly happy with the addition of an optional/removable mount for the BTT EBB36 CAN bus, keeping all wiring at the toolhead, and making a small gain in overall toolhead weight. I will link the mount separately.

*Please see below for materials/parts I used for this project. I may receive small compensation from these affiliate links, but at no cost to you. This just helps support my continued development of ideas and useful tools for the 3D printing community!

Alternatively, consider donating via the link on this page. Every little bit helps!*

I do welcome suggestions for things that you may need/want. I love designing useful things from scratch!
