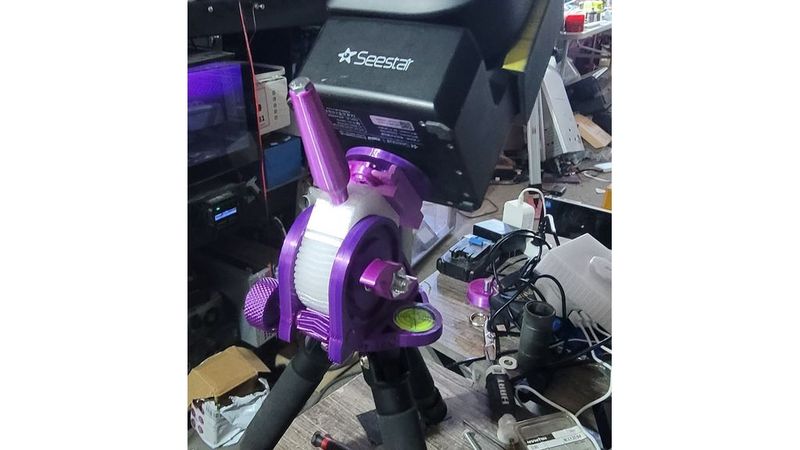

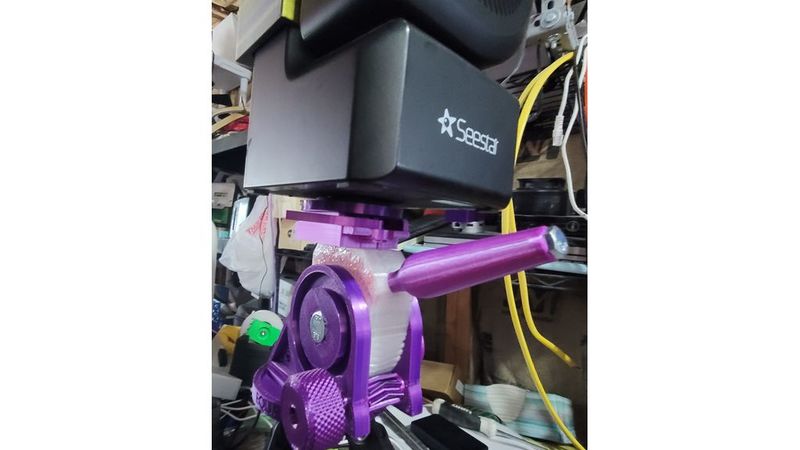

SeeStar S30 and S50 Polar Alignment Mount

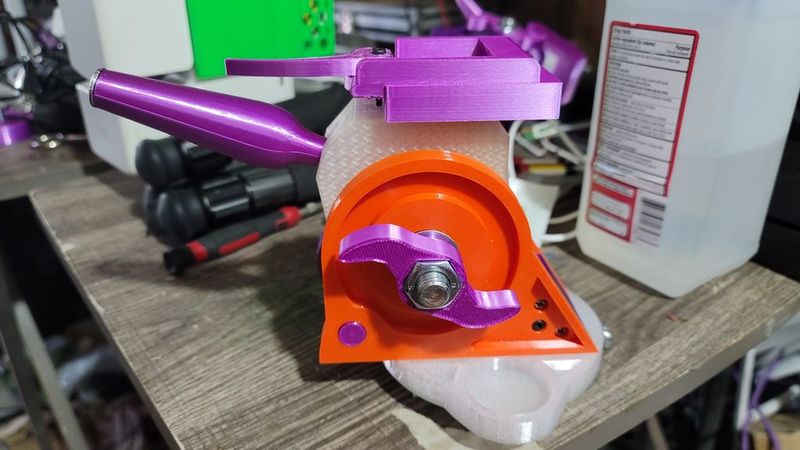

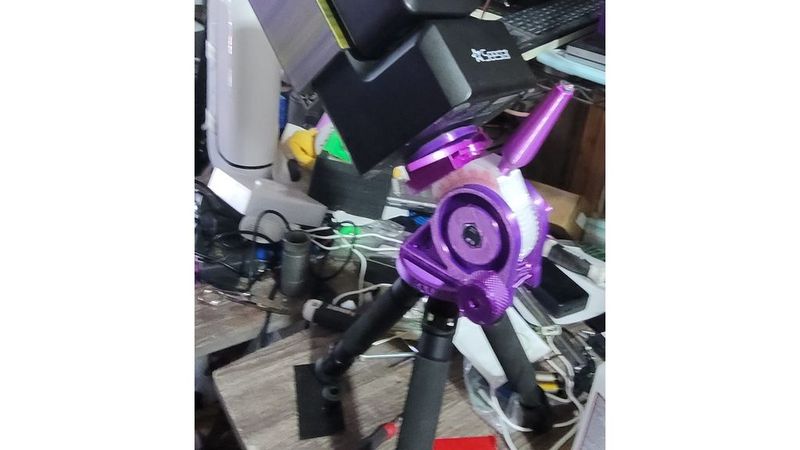

I saw the available Telescope and Camera Mount posted and none meet my conditions, so I decided to make a Mount that I can Adjust to Polar Alignment, What I came up with is the following.

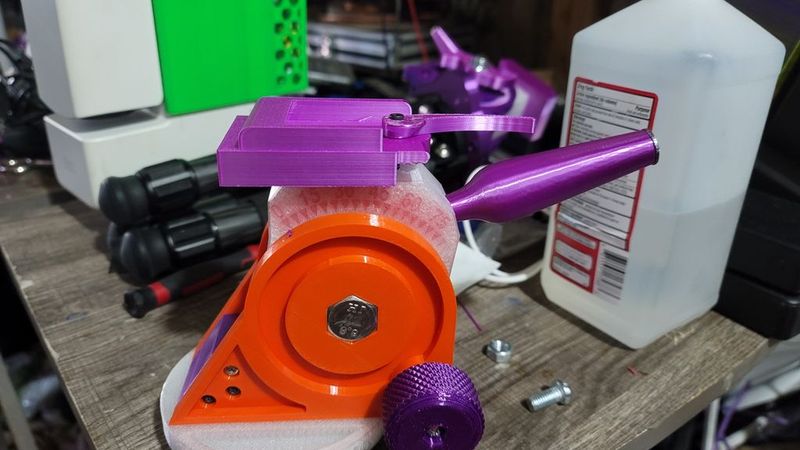

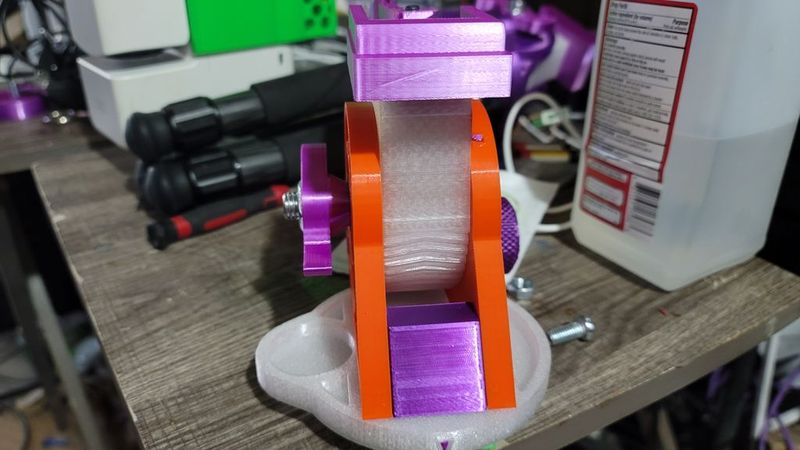

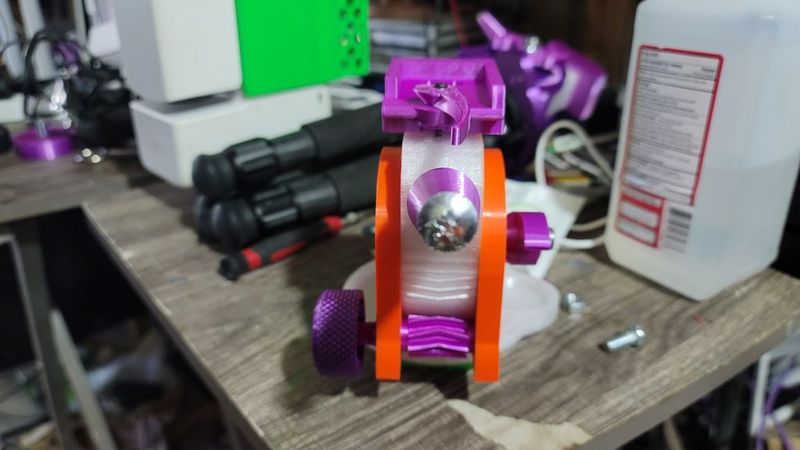

This Mount works great, made out of PETG with a Layer of Clear ultraviolet Resin as the topcoat to protect it, I just poured out about 2 ozs used a FLUX BRUSH to spread the resin and allow the SUN to dry,

The Handles are 75% infill as these require extra Strength to hold the base in place while you adjust the polar alignment.

the MAIN DRIVE gear was also done in 75% infill as the strength was needed.

everything else was made with 35% infill.

M3x10 x 25

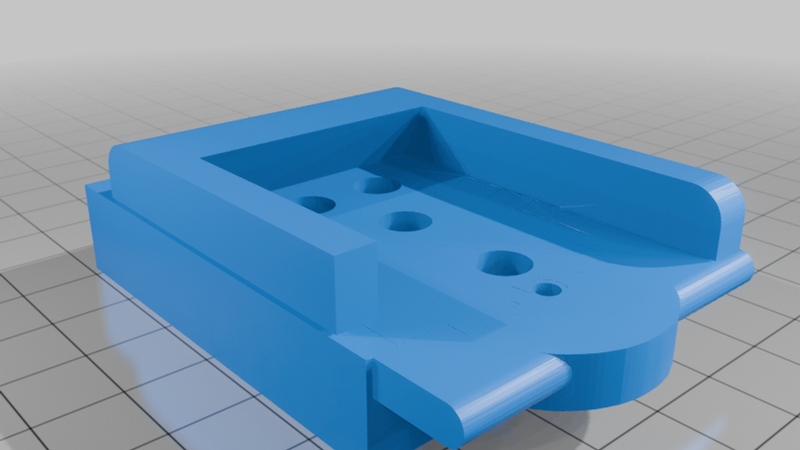

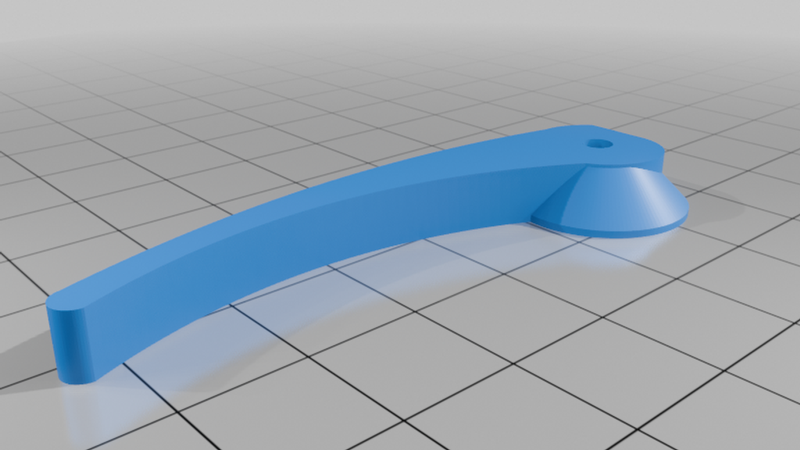

M4x10 and nut for Quick Release handle

M12x60 or 70 X2

M12 Nut x 2

3/8x.75 or 1 inch to mount SEESTARs

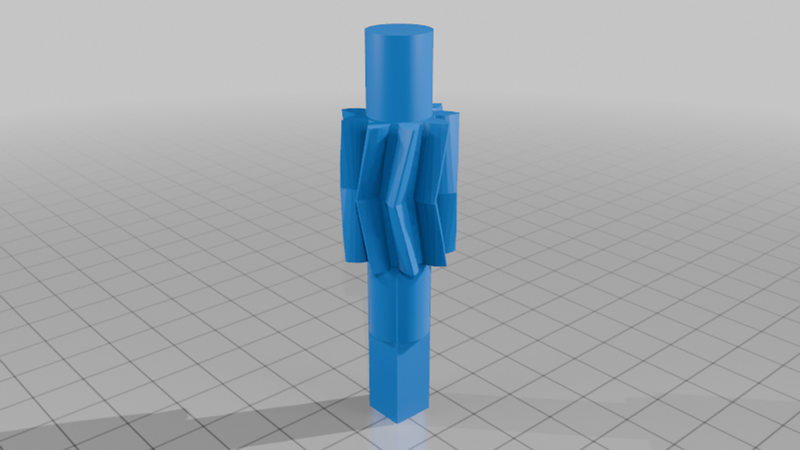

Main drive Gear needs to be printed with 30% or higher INFILL

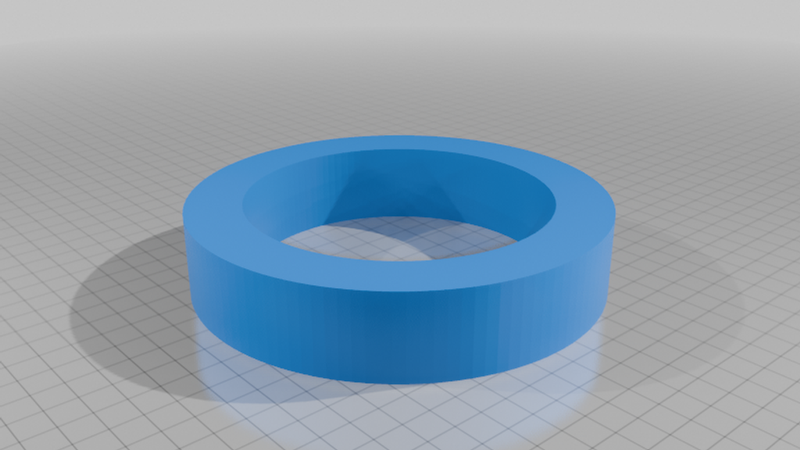

2 spacers need to be put on MAIN DRIVE GEAR

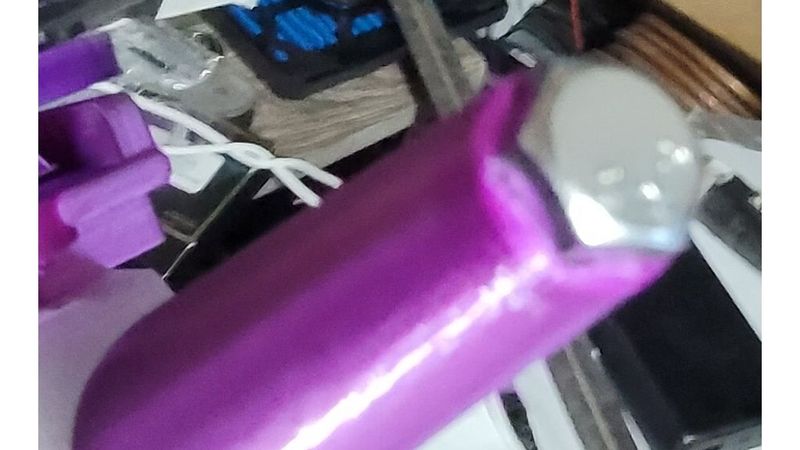

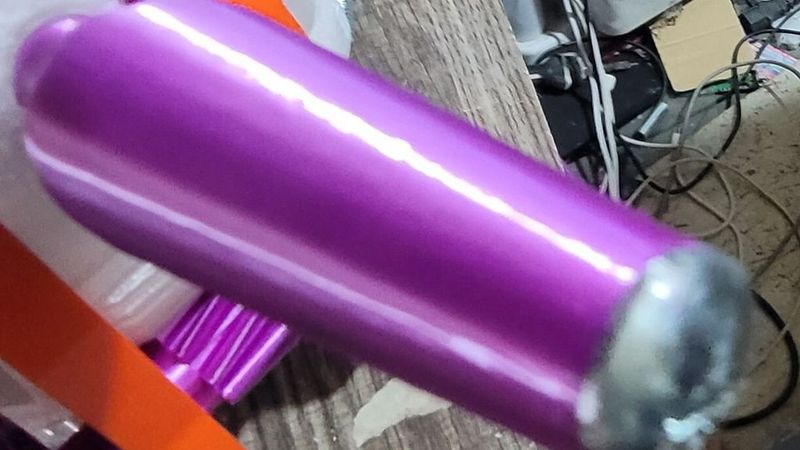

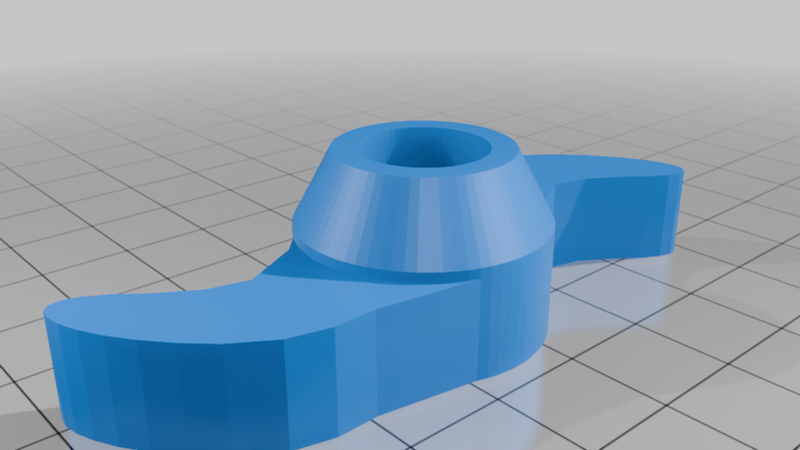

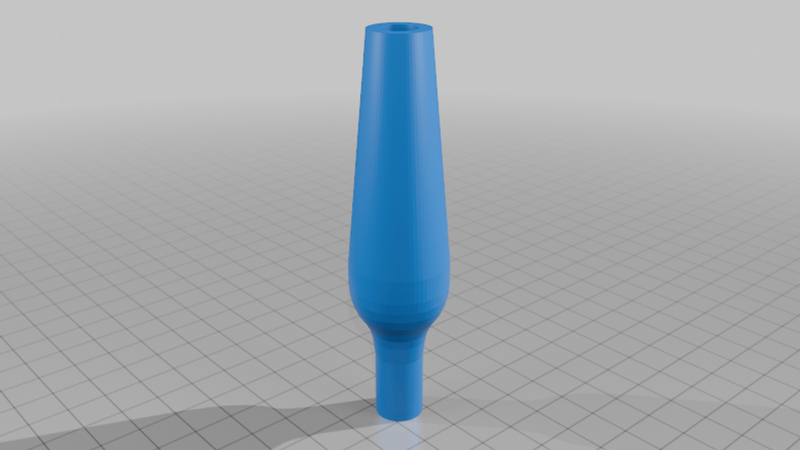

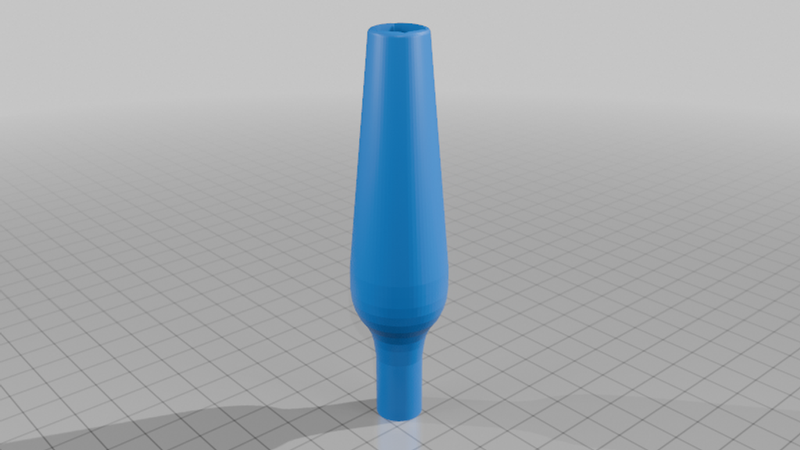

2 types of handles, both need to be 1/4x6 inch either ROUND HEAD or HEX HEAD, manually thread the handles, then thread into MAIN PIVIT Gear Head

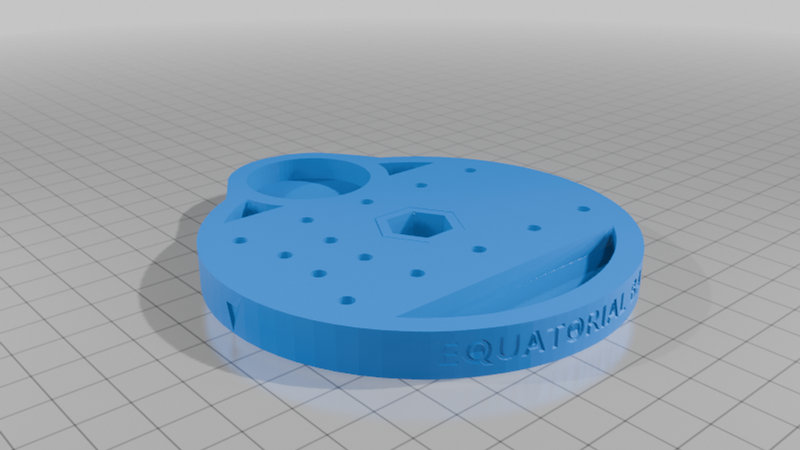

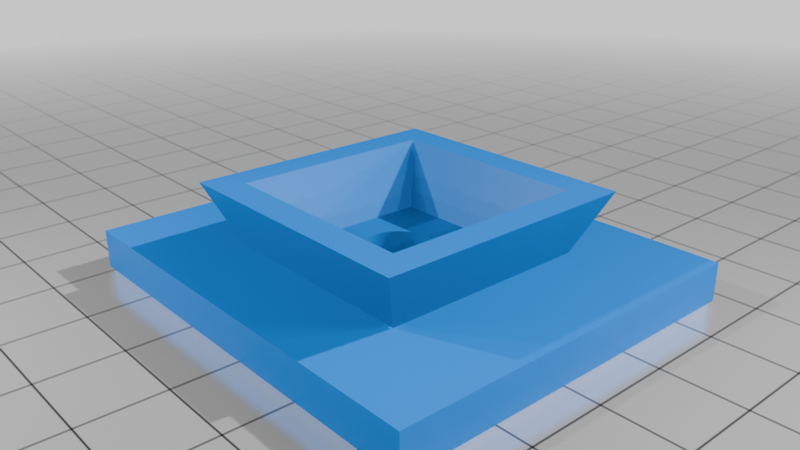

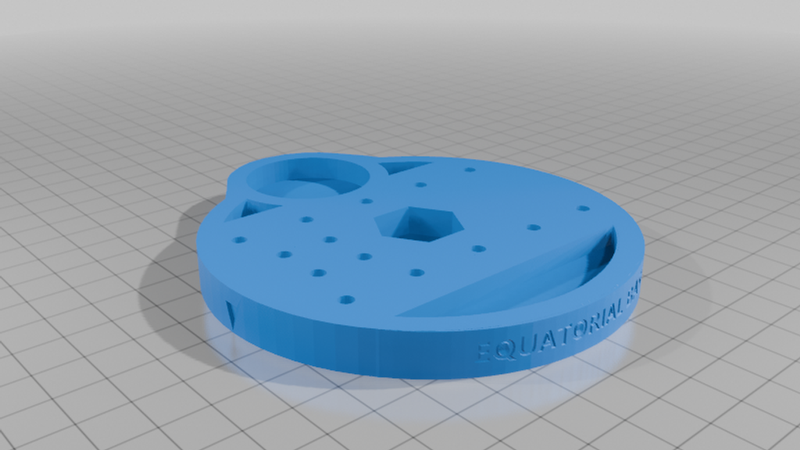

If you use the added Base to attach the complete item, then you will need at least a 1.5-to-2-inch M12 with nut

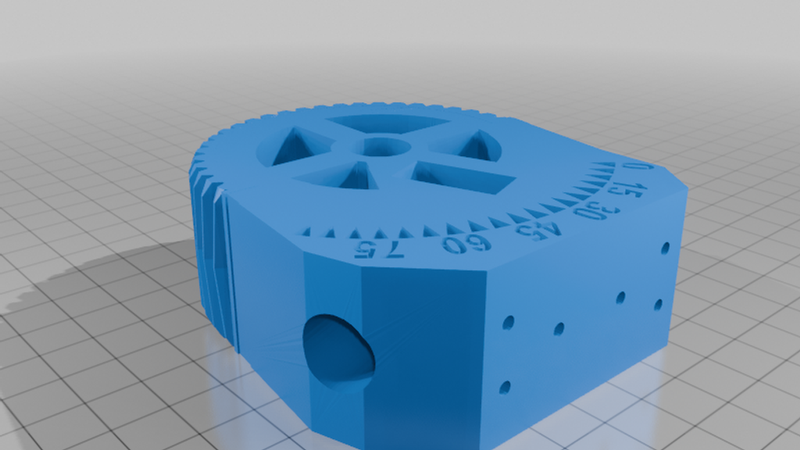

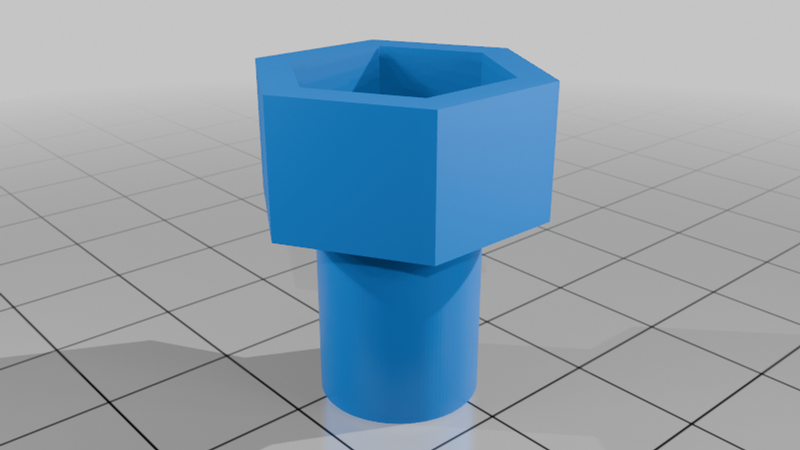

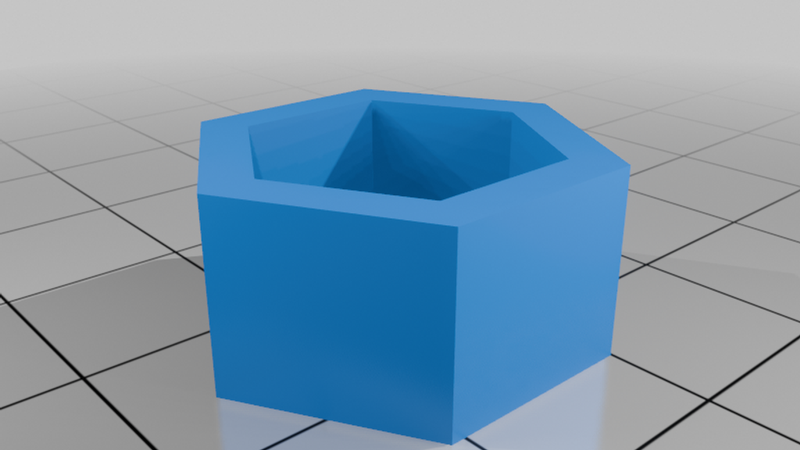

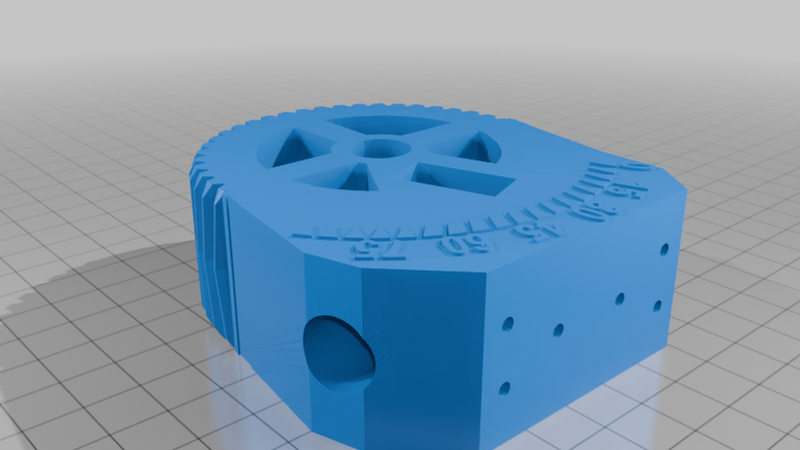

If you do not have M12 or cannot get any, then there is a ADAPTER to convert your 3/8 or M10 4-inch-long bolt thru the PIVOT of the Main Pivot Gear

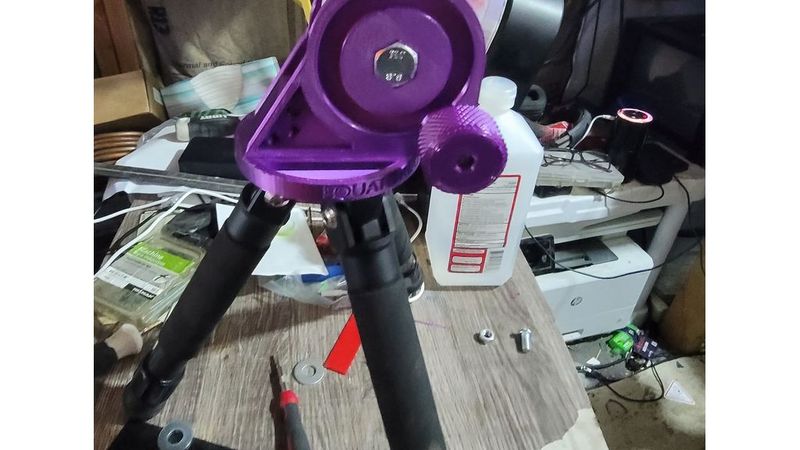

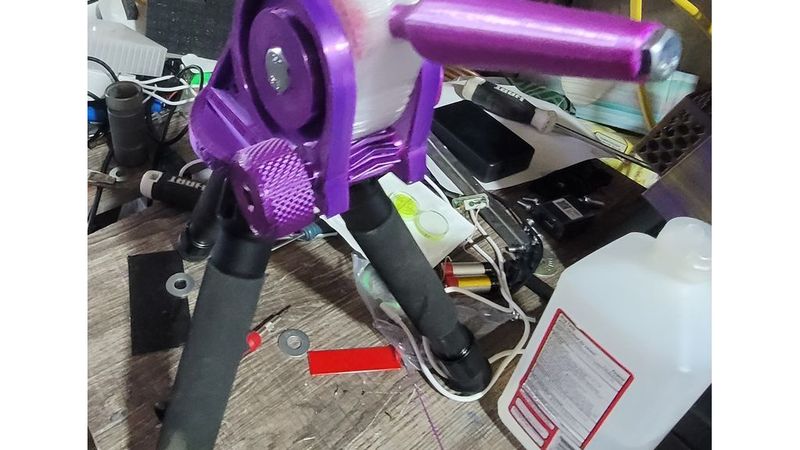

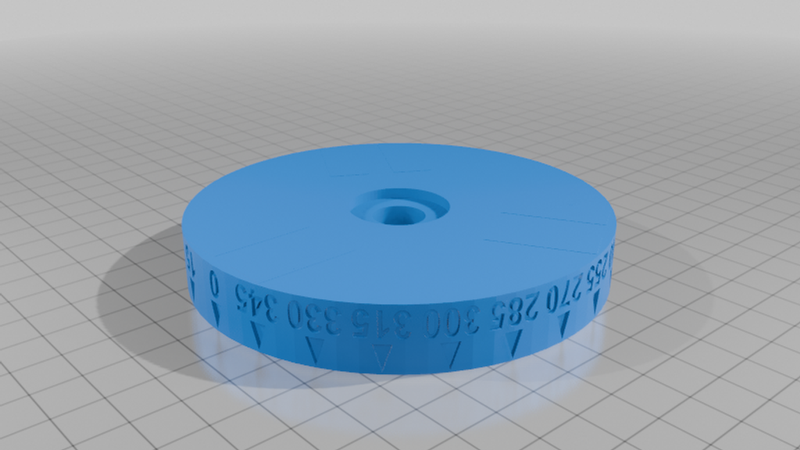

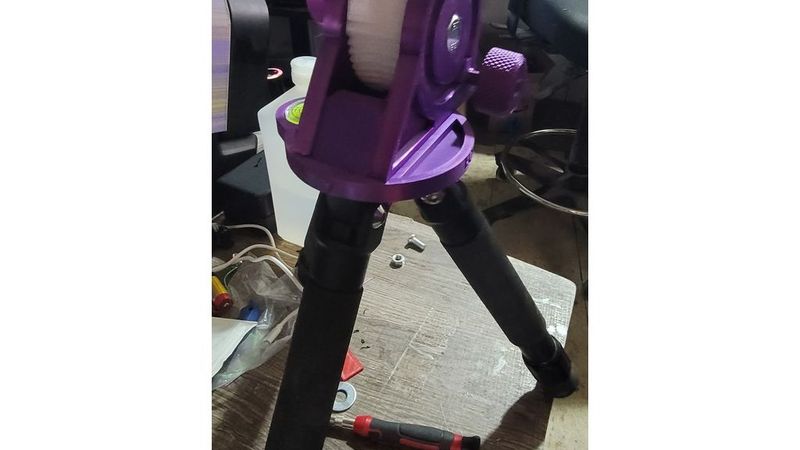

you have 2 SWIVAL BASES, one with a M10 and one for M12, I use the M10 base as i have 3/8 bolts on my Seestar tripods

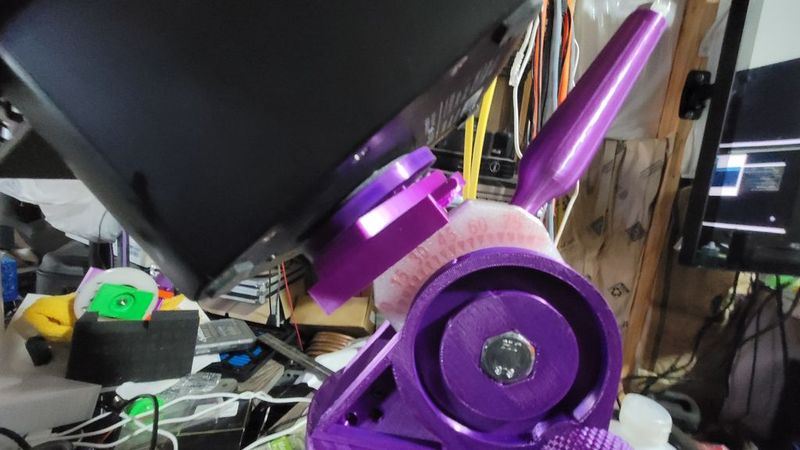

When adjusting the Angle, you must hold the HANDLE not the Seestar as holding the SEESTAR will not get the updated and correct angle based on your location

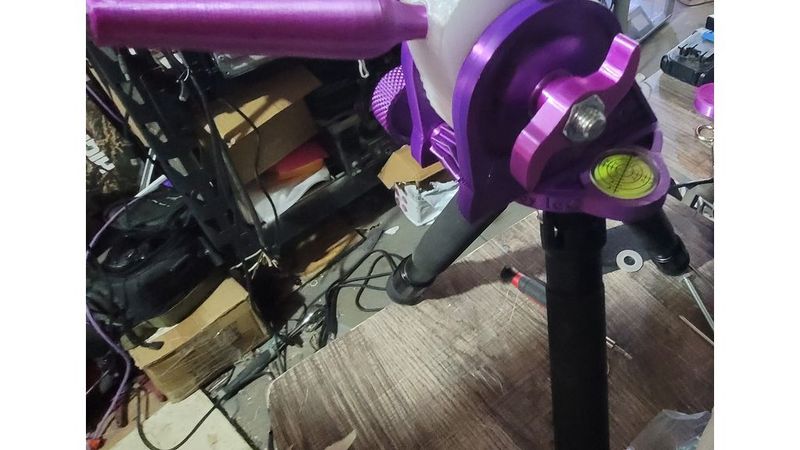

You will need a 30mm Bubble Level, I got mine off ebay for 3 for $8

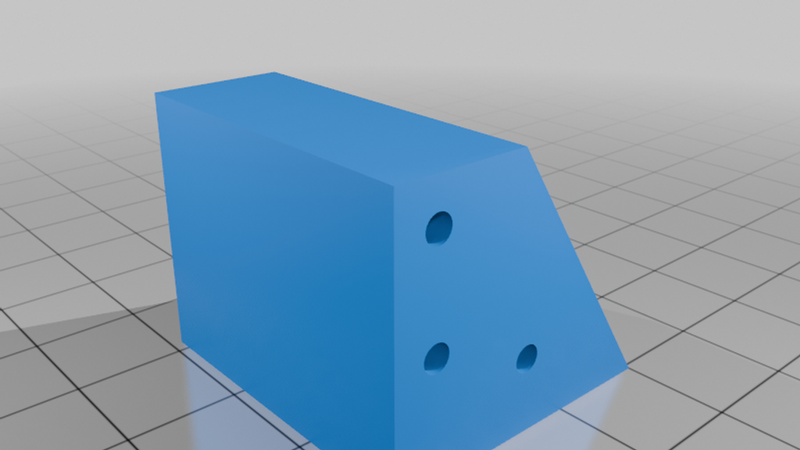

Before adding the SIDE PANELS, you must install the MAIN GEAR DRIVE with SPACES before screwing it all together.
