NexDock / Laptop Quick-Release Mount for Raspberry Pi

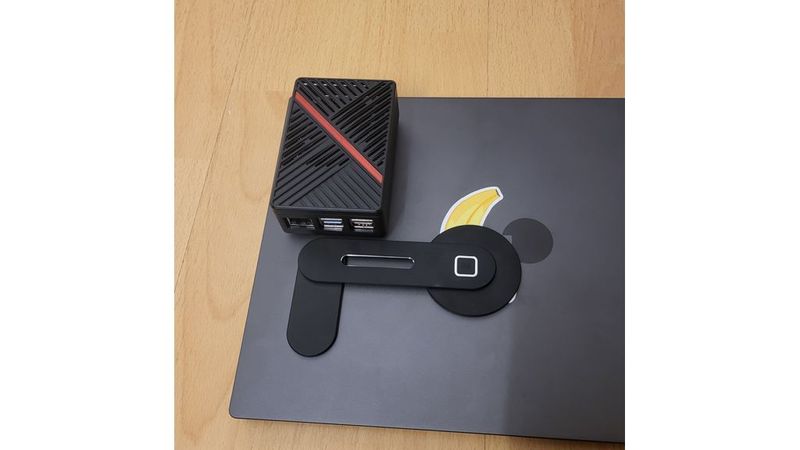

An quick-release mount for attaching a Raspberry Pi 5 with the GeeekPi/52Pi H5 case to the back of a NexDock / Laptop.

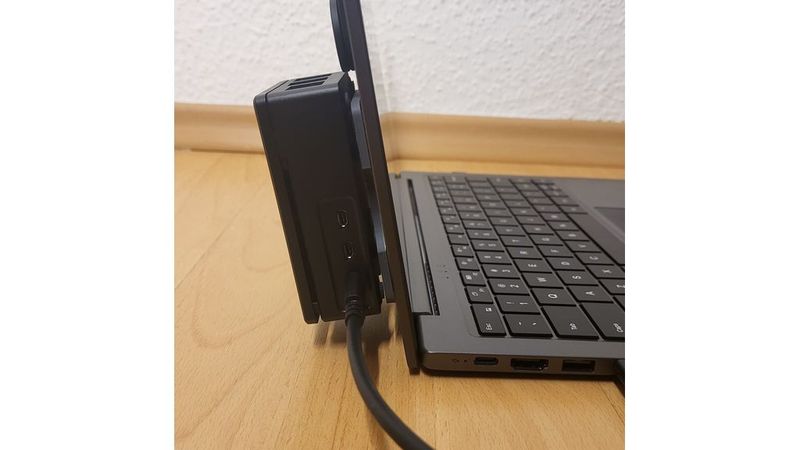

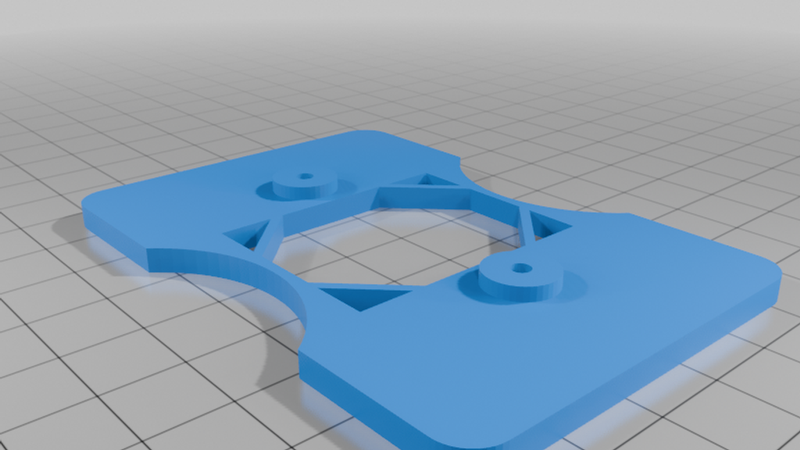

The mount uses the case’s existing keyhole slots with 44 mm spacing and two M3 screws. Slide the Raspberry Pi down to lock it in place and push it up to remove it. The USB ports face upward. For the original rubber feet is 2mm space to provide some ventilation

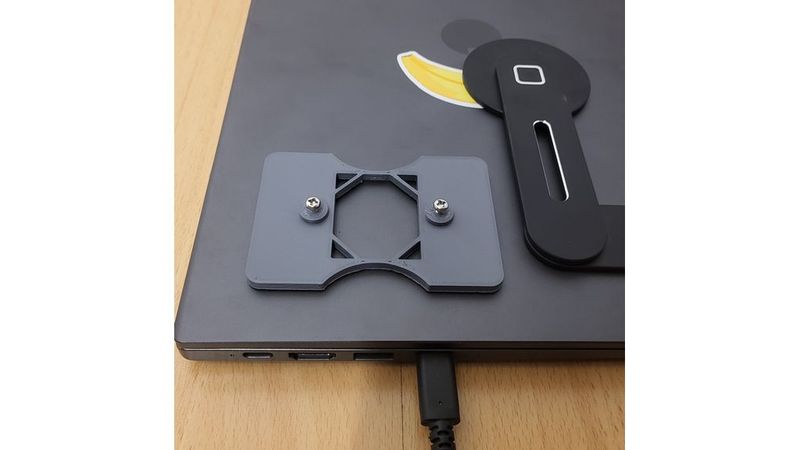

I used two screws measuring 9.5 mm in total length, with 5.5 mm diameter and 2 mm thick heads. A second version is included with larger mounting holes designed for M3 heat-set threaded inserts.

Double-sided tape or permanent adhesive is required for attachment.
