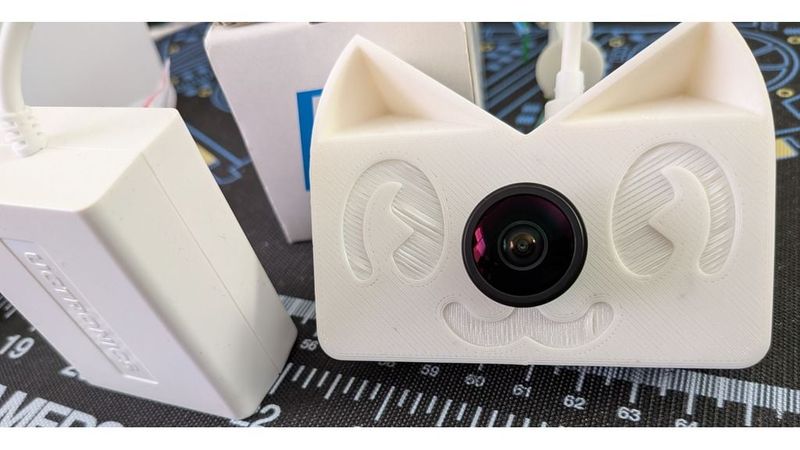

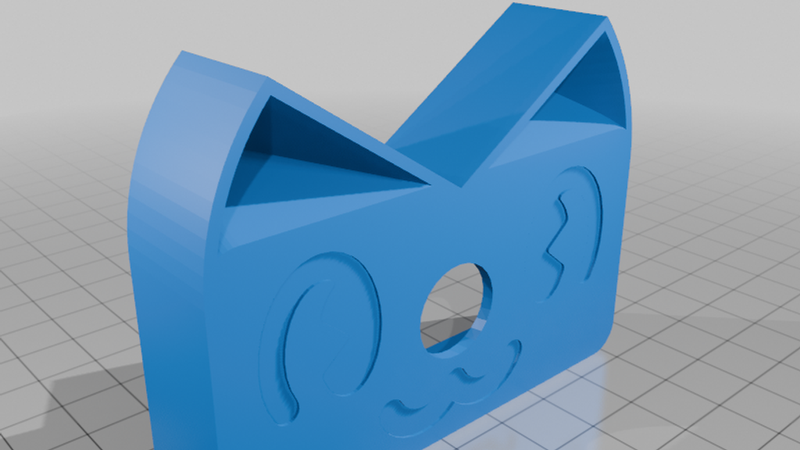

Raspberry Pi Zero case (Cat Cat) for Arducam B0647

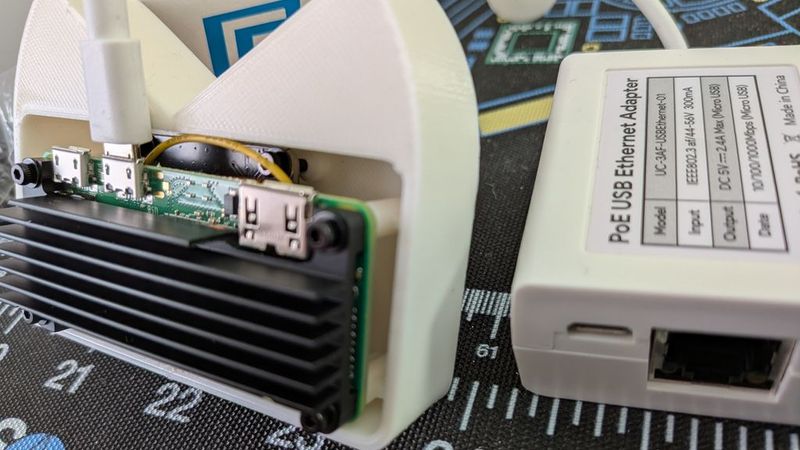

Modded for Arducam B0647. I also removed the back to cool down the raspberry pi and removed the original stand mount. I just set it on something or hang it from the PoE adapter.

Anycubic 4max Pro

ELEGOO PLA Plus 1.75mm White

No brim

No supports

20% infill

1X Arducam B0647

1X Sonew 1.8mm 180° Wide Angle Board Len (if you want to replace the stock len)

1X Raspberry Pi Zero 2W

1X UCTRONICS PoE Adapter for Raspberry Pi Zero

1X Geekworm C296 10mm Aluminumn Alloy Heatsink

1X SDCard

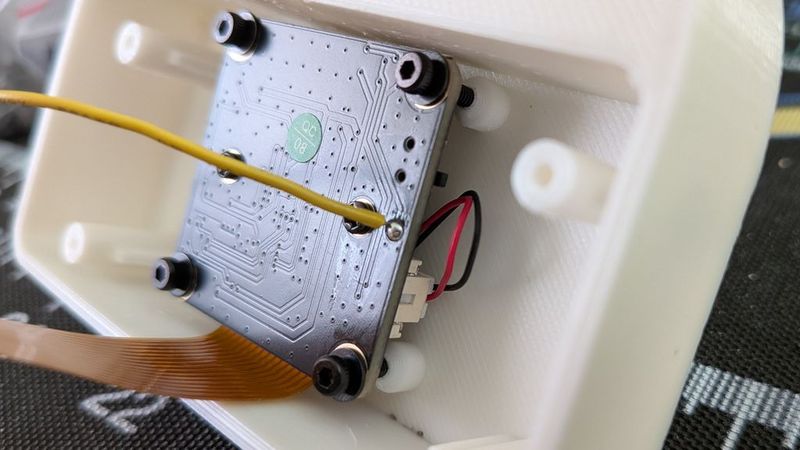

4X M2x8mm for camera

2X M2x8mm for bottom of raspberry pi

2X M2x10mm for top of raspberry pi

8X M2 washers

1X wire for gpio IR filter control
