1/10 RC Tire Transport & Storage Rack (12mm Hex)

A compact, practical, and rugged solution to keep your 1/10 scale RC tire sets organized in your pit bag or workshop.

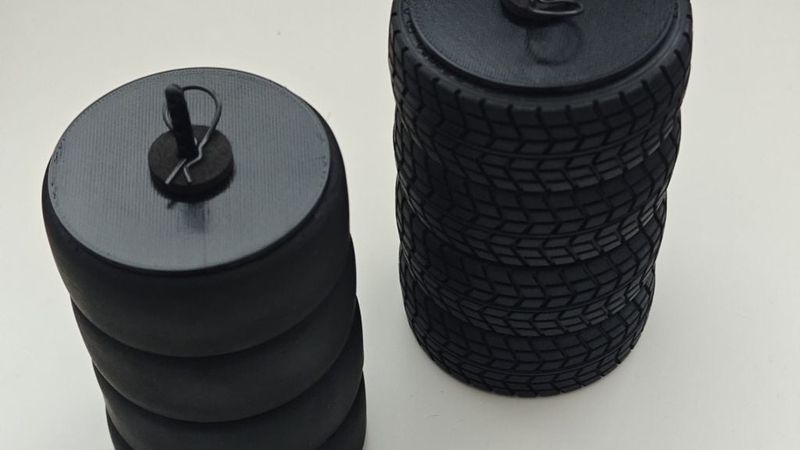

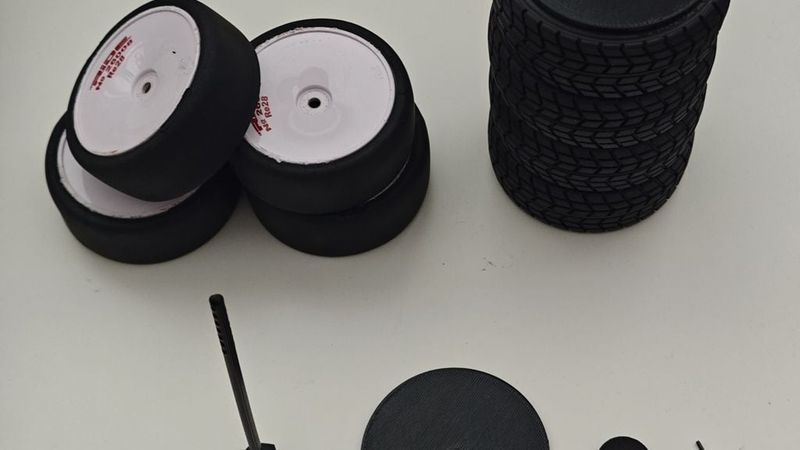

Designed specifically for 1/10 touring, drift, and rally wheels, this stackable holder locks a set of 4 wheels together securely using a standard RC body clip (R-pin).

Key Features:

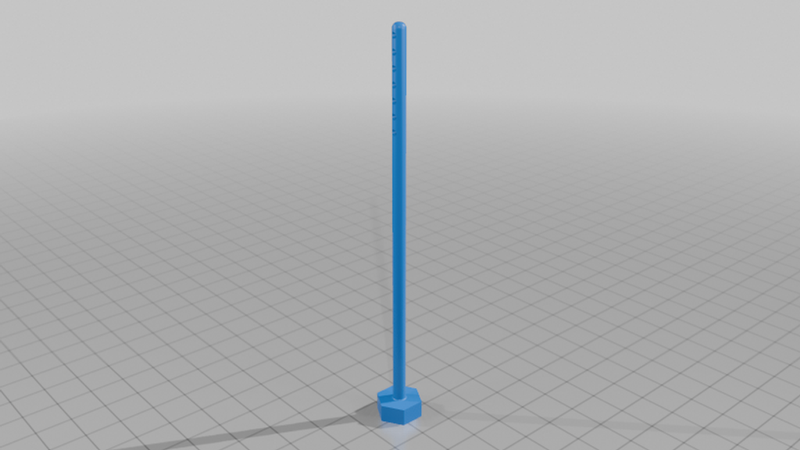

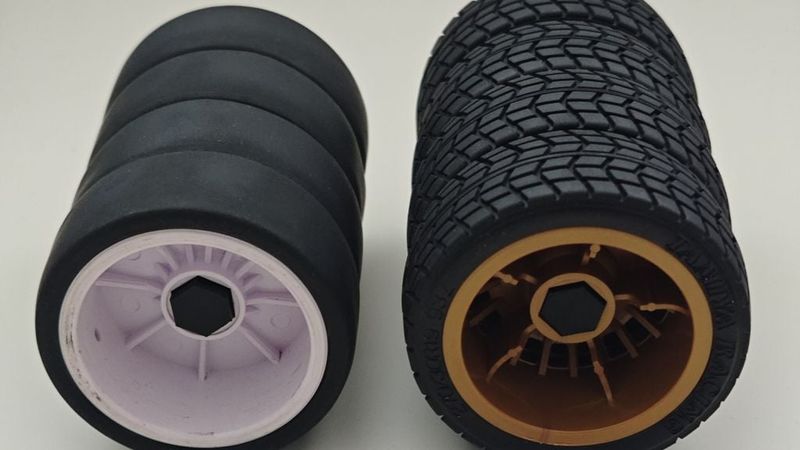

-12mm Hex Lock Base: The bottom shaft features an integrated 12mm hex mount that fits directly into the wheel hub, preventing the shaft from spinning when inserting or removing the clip.

-Multi-Hole Shaft: Multiple pin adjustment holes accommodate different wheel widths, offsets, or tire profiles (slick, treaded, rally) without over-compressing the foams.

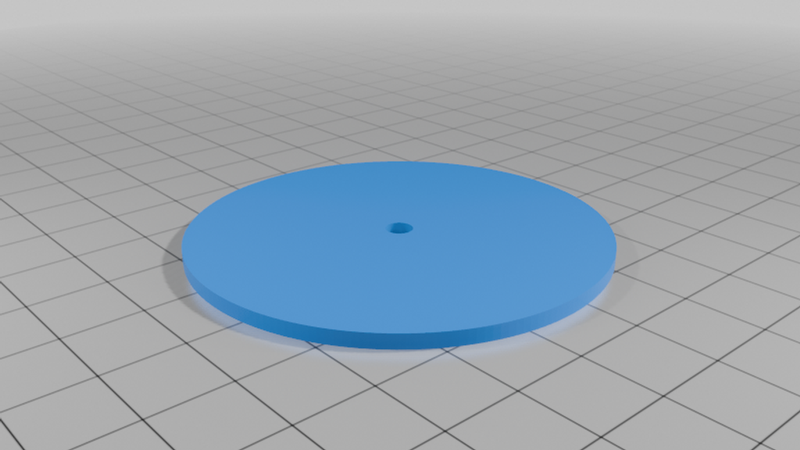

-Protective Top Plate: A wide top cover evenly distributes clamping force across the upper tire, protecting the compound and keeping dust out during transport.

Standard RC Hardware: Uses standard body clips (R-clips) you already carry in your pit box.

-Recommended Print Settings:

-Material: PETG (Recommended for superior layer adhesion, strength, and flexibility)

-Shaft Orientation: Printed horizontally with supports to align the layer lines along the length of the post, preventing snapping under tension.

-Layer Height: 0.20 mm

-Infill: 25% – 40% (Gyroid or Grid)

-Walls / Perimeters: 3 to 4 walls for maximum durability
