Sim Wheel stand Vertical support bar mount

Vertical support mount, for 25mm bar with a tight fit.

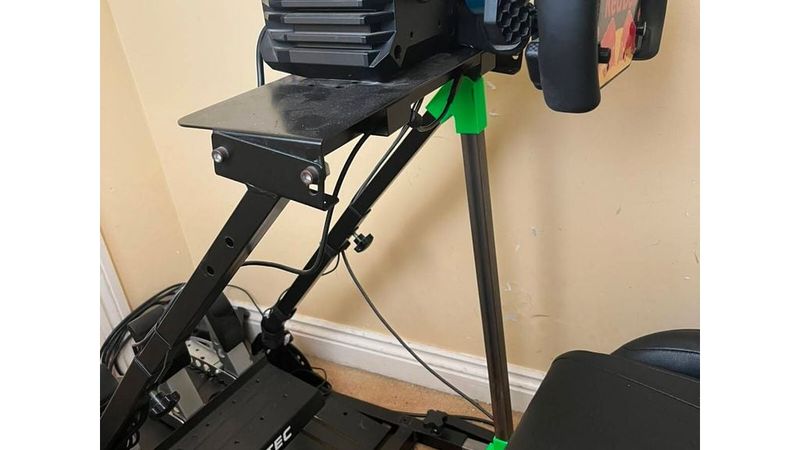

Upgraded my wheel stand by adding a seat, my problem was the wheel base would get too close and the bolts on the frame couldn't hold the height I wanted and I was getting tennis elbow. This holds the rim at a consistent height and adds much needed strength.

Only downside you could have is I only have a bar on the right as I get in from the left, the wheel is slightly maybe 1.5cm to the right of the centre but I race VR and I cant notice it physically or visually.

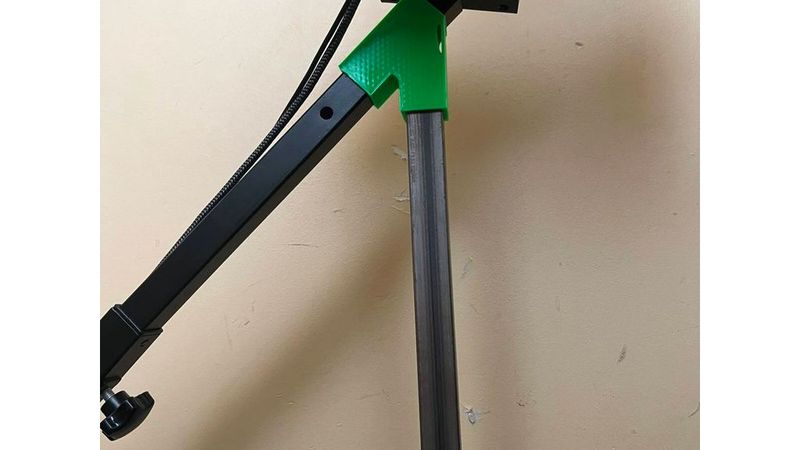

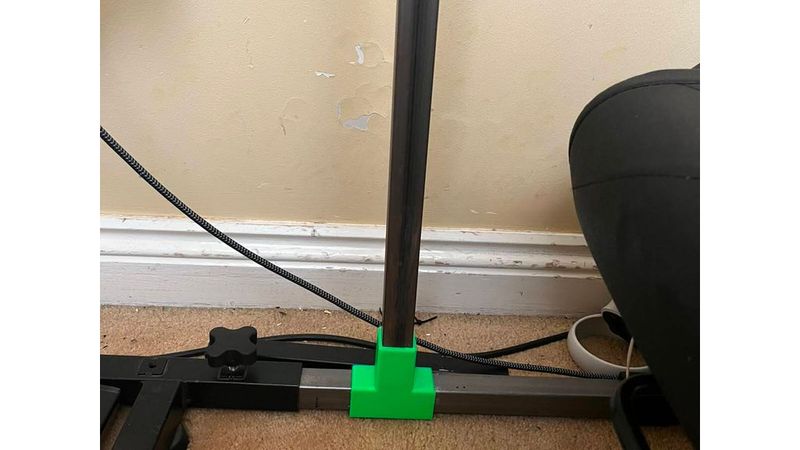

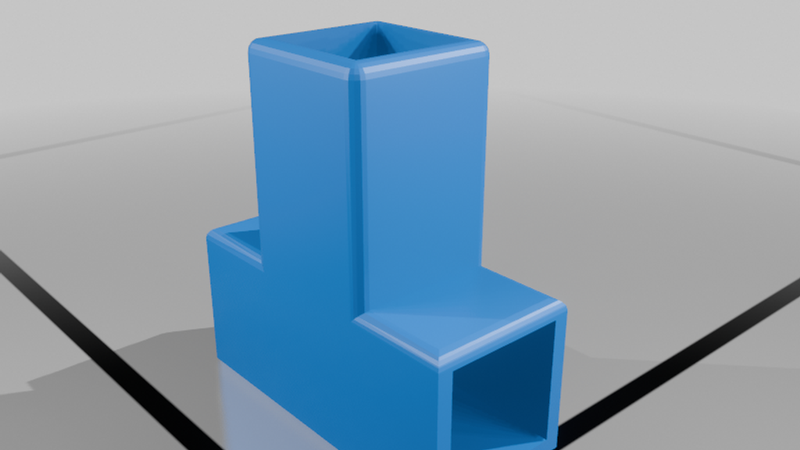

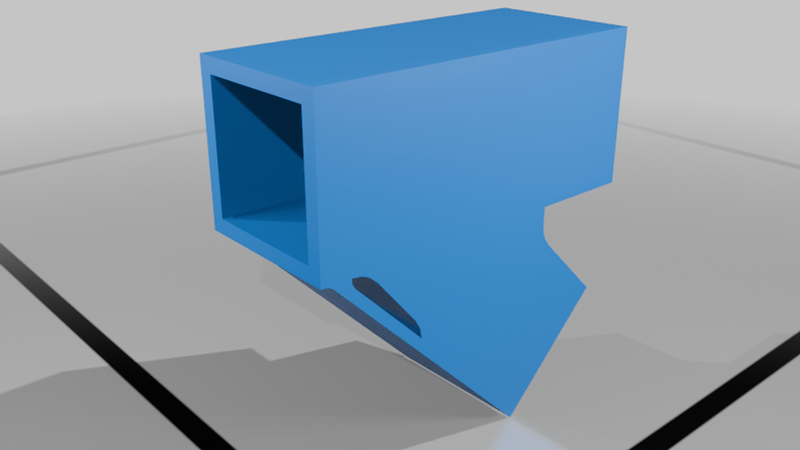

The Bottom bracket slides on the bar connecting the stand and the seat, and the angled bracket slides onto the diagonal bar. All holes are for 25mm bar, I used steel and PLA. My wheel is 8nm and the mounts have no sign of cracking over the last 2 months, I was expecting it to break so i could diagnose and then print final pieces with PETG but so far isn't necessary.
