Raspberry Pi Active Cooler Duct

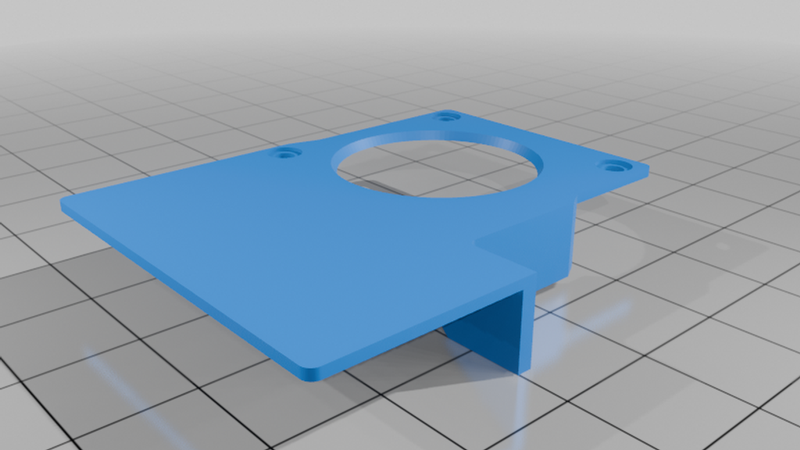

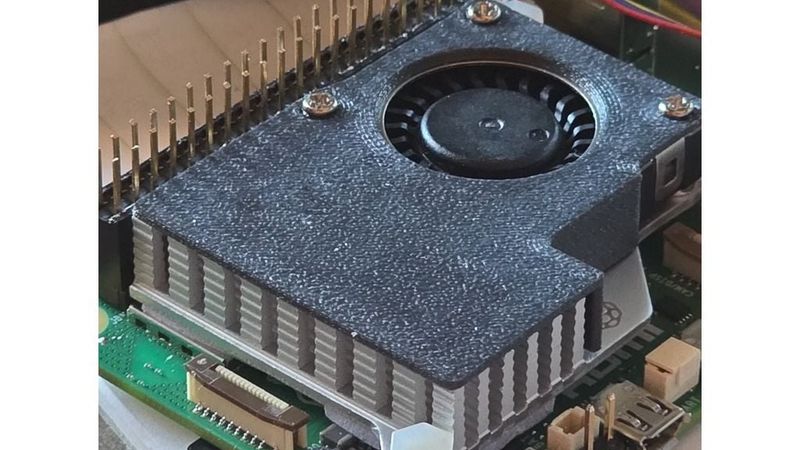

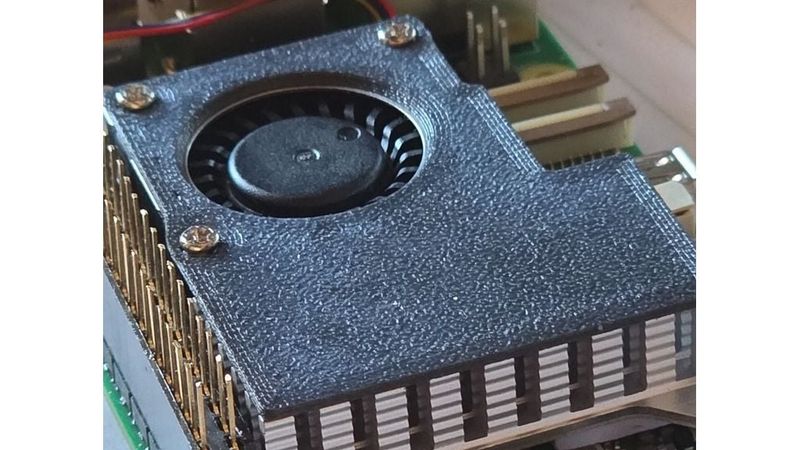

Cooling duct/cover for the Raspberry Pi Active Cooler for the RPi5.

What does it do?

This is useful for directing airflow outside of a case rather than letting the air end up recirculating inside of it, and also can serve as a barrier to prevent electrical contact between a HAT/bonnet/shield and the heatsink itself.

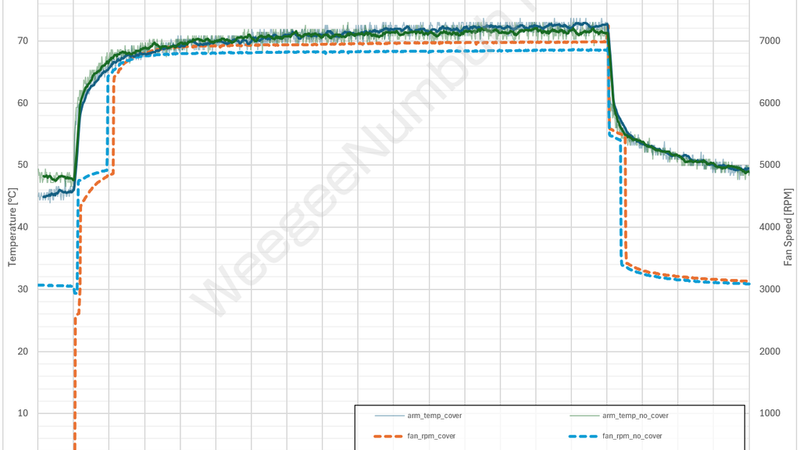

This won't do much if the pi is sitting out in the open (see the performance graph in this post), but it also doesn't hurt to use it either.

Data was generated using this Raspberry Pi 5 hardware polling script.

Note: This will only work with the official Active Cooler from Raspberry Pi.
