Gears

__Gears__

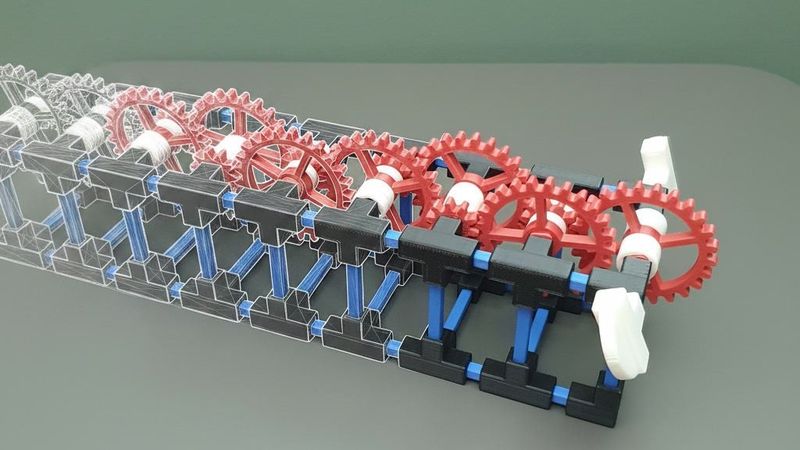

Infinitely extendable Gears model.

The model is made up from a Base part and Extensions.

Each extension adds a x2.5 ratio.

The added 3mf files have all the parts required for either the Base or the Extension model and are ready to be printed. Parts can also be printed separately, the part list is below in this description.

A push tool is included to help with assembling the parts (Gears14-PushTool.stl).

Printing tips:

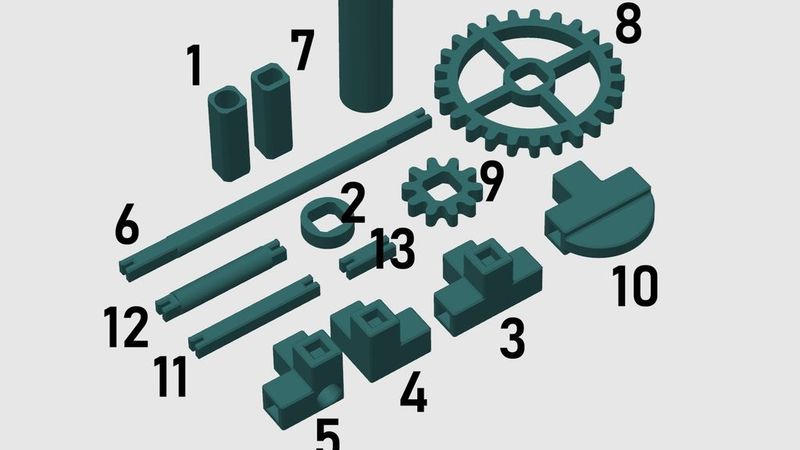

-Parts 1, 7, 12 are best printed in upright position for a more smooth rotation.

-Parts 1, 2, 6, 7, 12 are best printed with seams 'random' setting for a more smooth fit/rotation.

Print list for the Base (start part of the model):

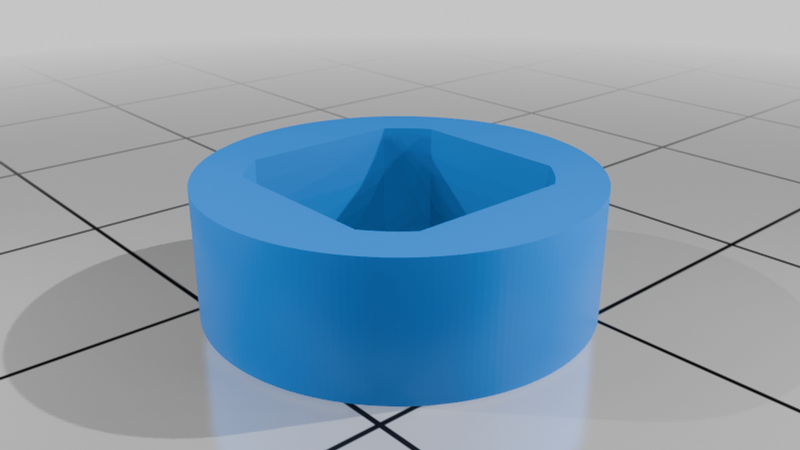

Gears2-AxleBusSpacer 4x

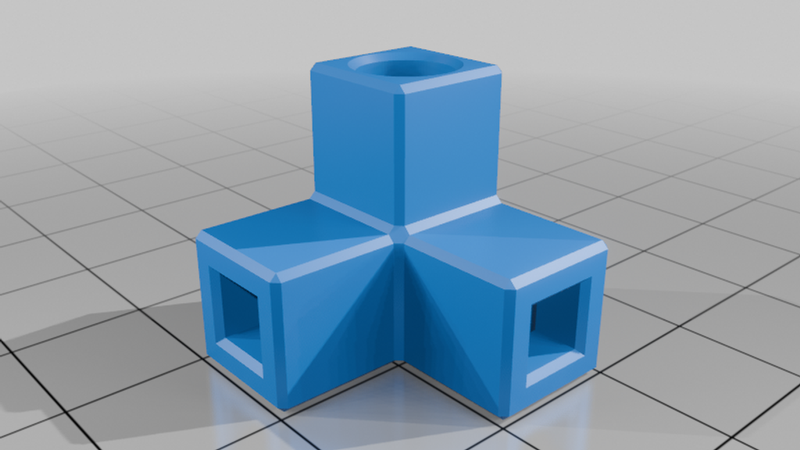

Gears4-Block-Corner 2x

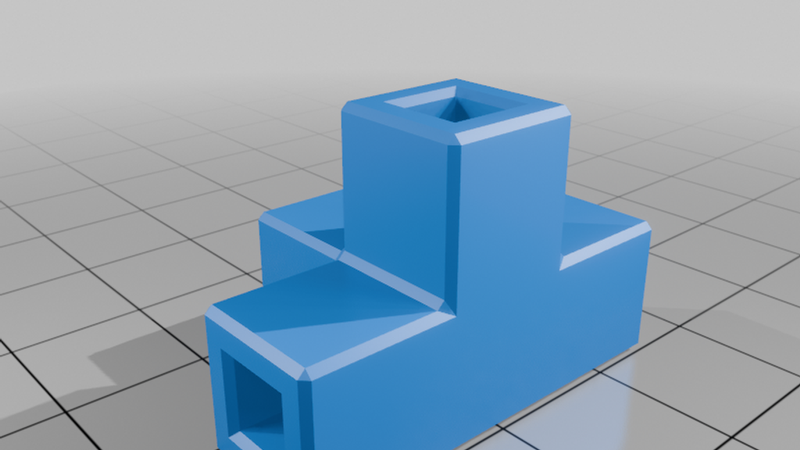

Gears5-Block-CornerAxle 2x

Gears6-DriveAxle 1x

Gears7-DriveAxleBus 1x

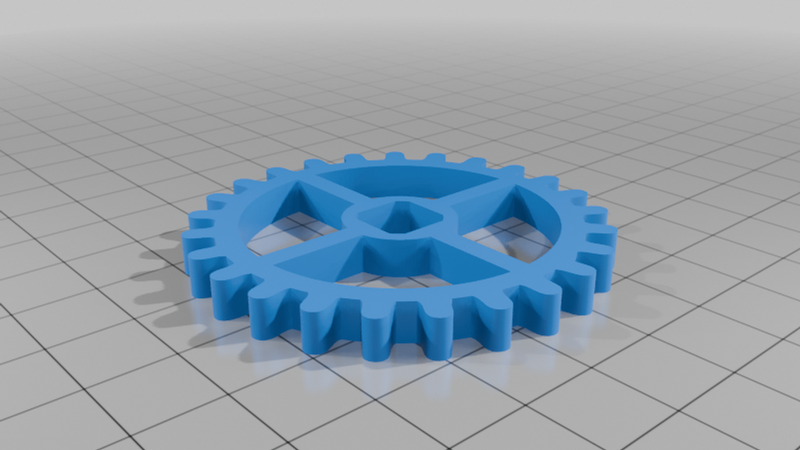

Gears8-GearBig 1x

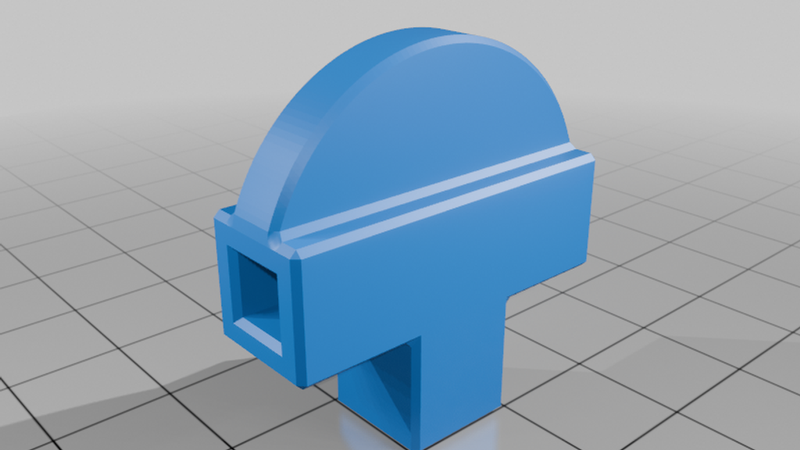

Gears10-Handle 2x

Gears11-Rod-Long 3x

Gears14-PushTool 1x

Print list for every Extension:

Gears1-AxleBus 1x

Gears2-AxleBusSpacer 3x

Gears3-Block 4x

Gears8-GearBig 1x

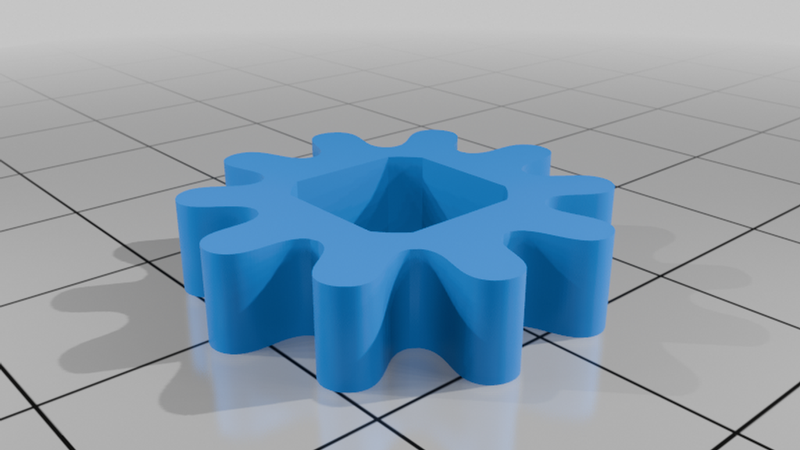

Gears9-GearSmall 1x

Gears11-Rod-Long 3x

Gears12-Rod-LongAxle 1x

Gears13-Rod-Short 4x

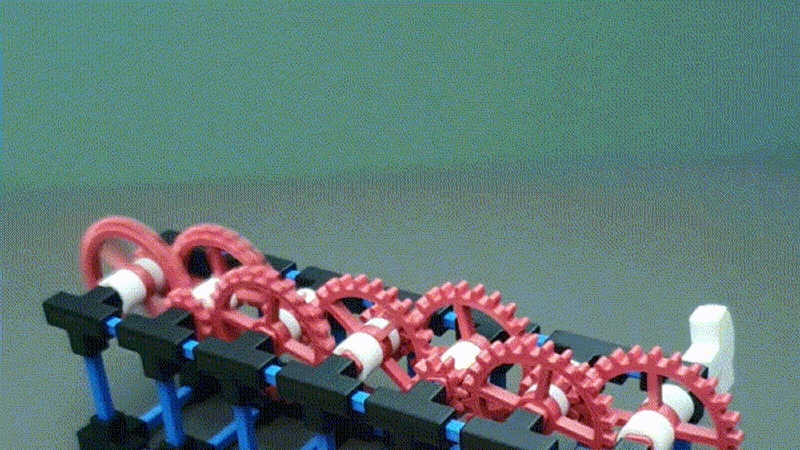

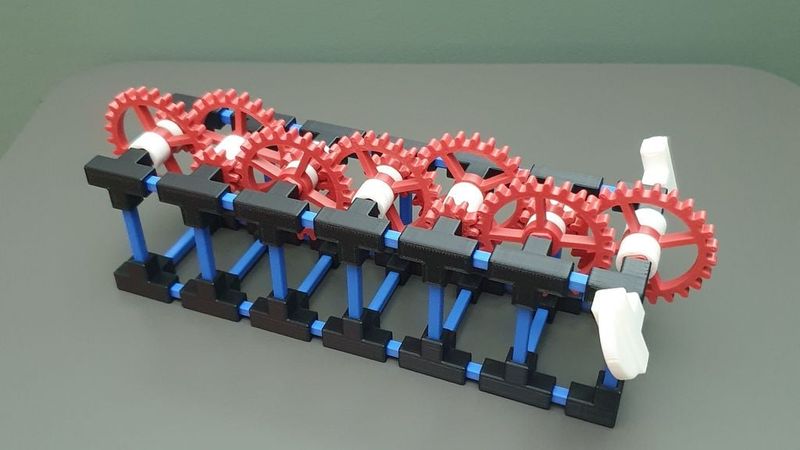

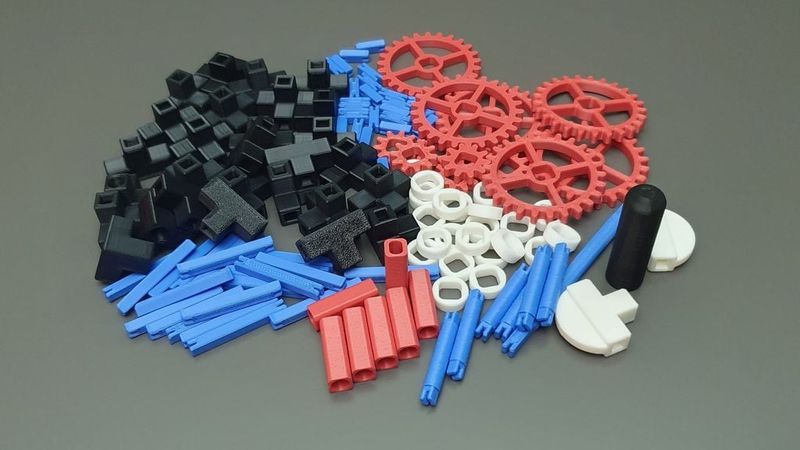

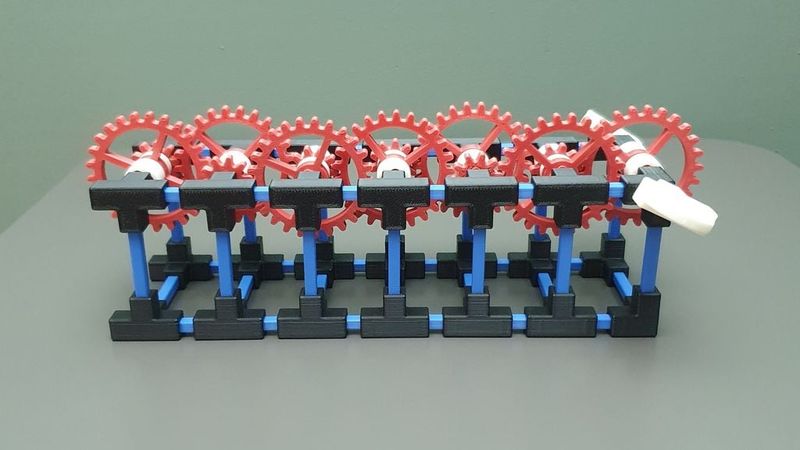

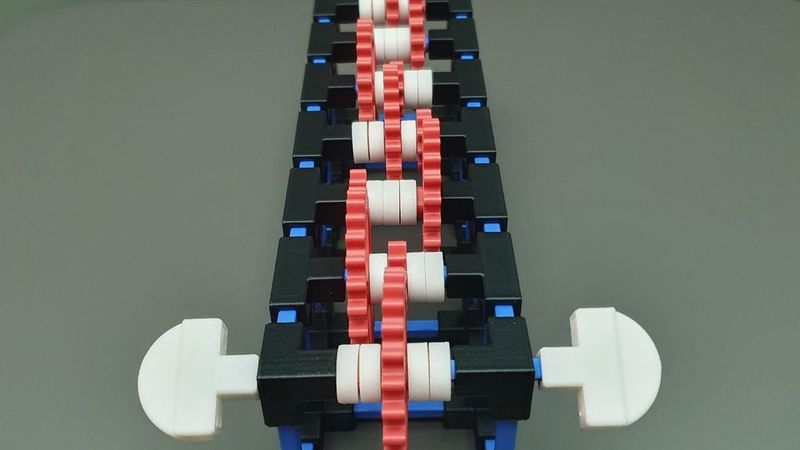

Print list for model shown in photos (124 parts):

Gears1-AxleBus 6x

Gears2-AxleBusSpacer 22x

Gears3-Block 24x

Gears4-Block-Corner 2x

Gears5-Block-CornerAxle 2x

Gears6-DriveAxle 1x

Gears7-DriveAxleBus 1x

Gears8-GearBig 7x

Gears9-GearSmall 6x

Gears10-Handle 2x

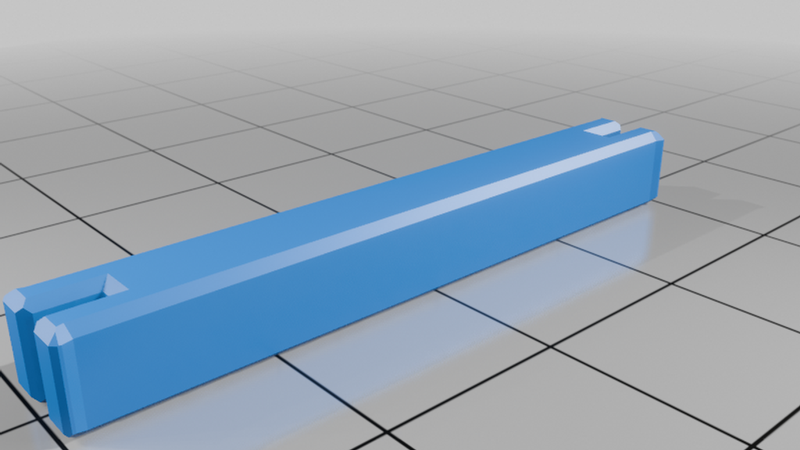

Gears11-Rod-Long 21x

Gears12-Rod-LongAxle 6x

Gears13-Rod-Short 24x

Changelog:

_08-14-2026 - Included missing push tool

08-13-2026 - Initial Release_
