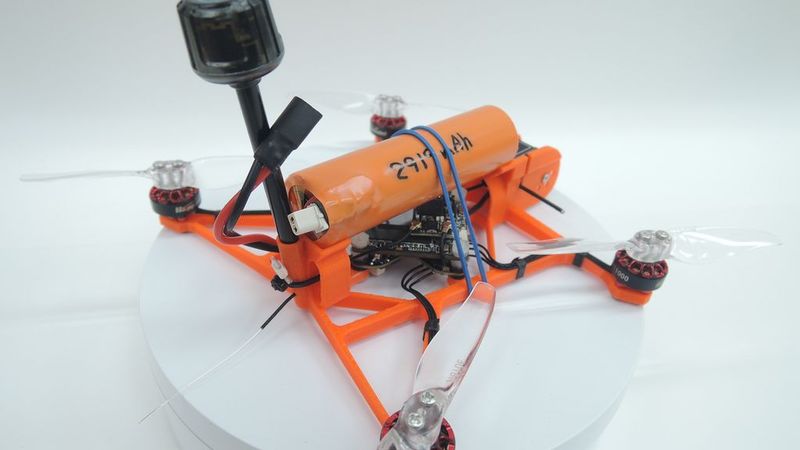

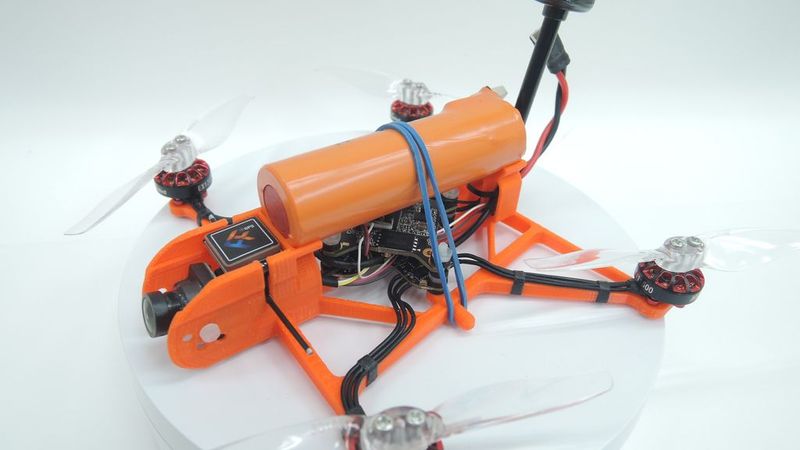

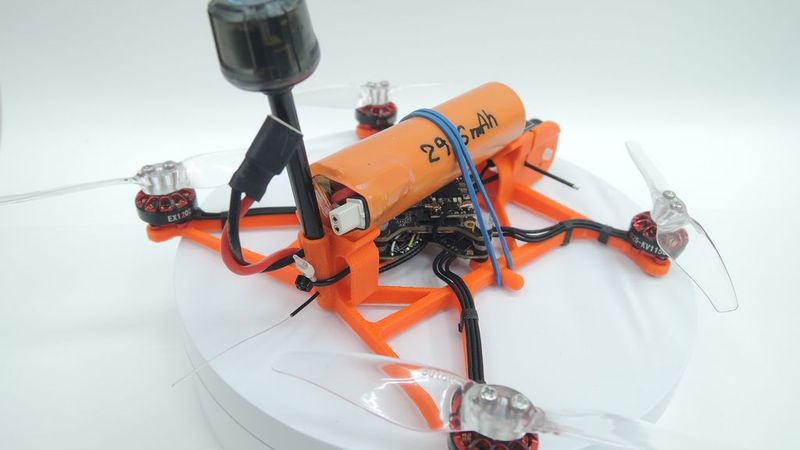

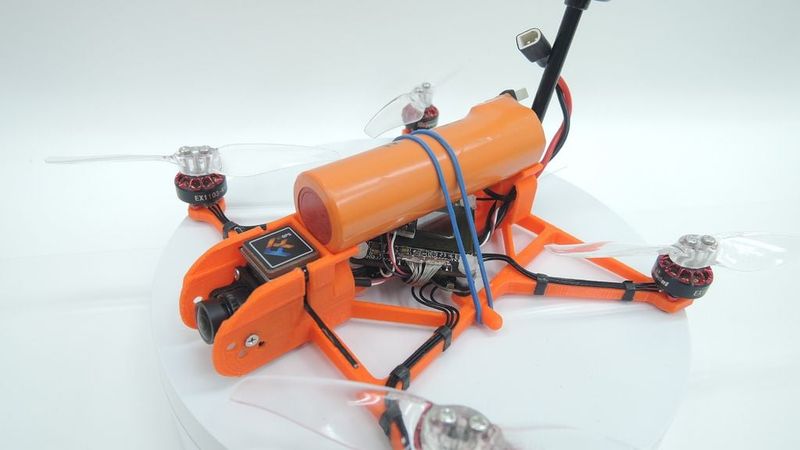

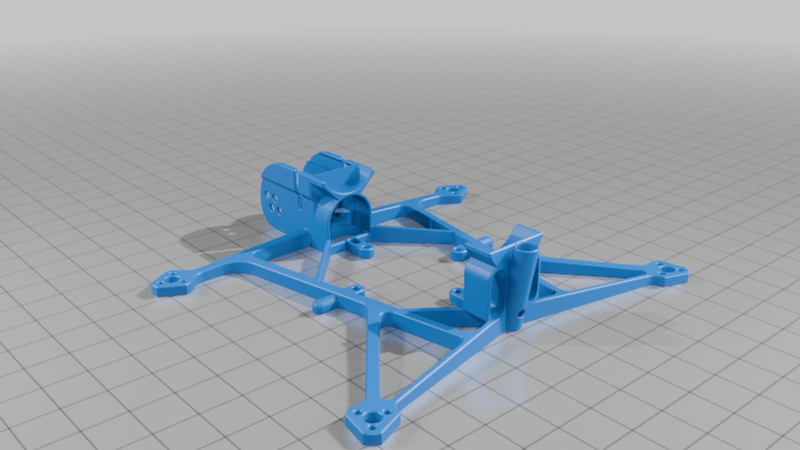

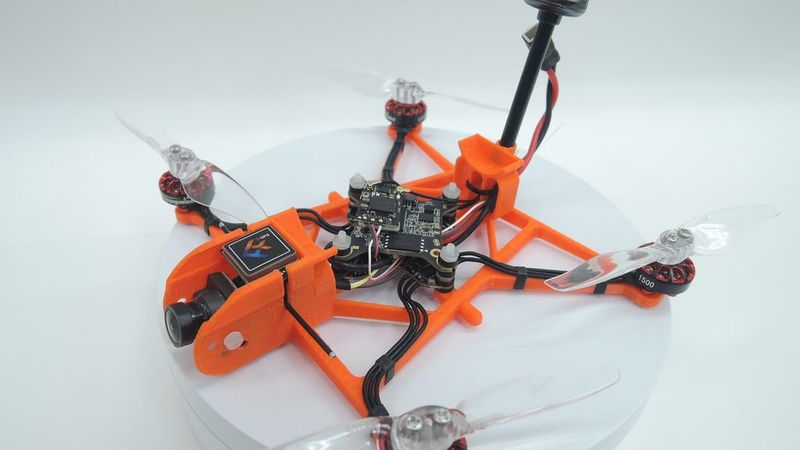

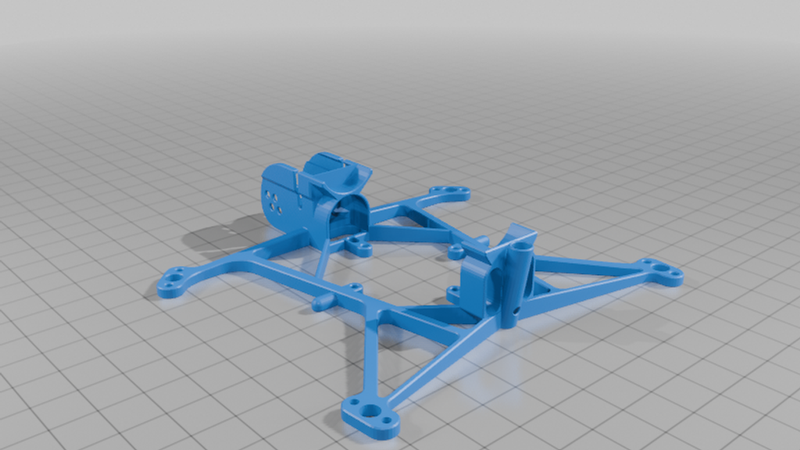

18650 FPV Drone Frame

In Japan, drone flight weight must be kept at 100g or less,

so we developed a lightweight drone utilizing 18650 batteries.

This enables long-range and extended-duration flights.

Motors: HappyModel EX1103S 1103 11000KV 3Holes

Motors: HappyModel EX1202.5 1202.5 11500KV 4Holes

Propellers: 3018 (3-inch propeller)

Camera: 14mm wide

Motor mounting screws: 4mm(3 holes), 5mm(4 holes)

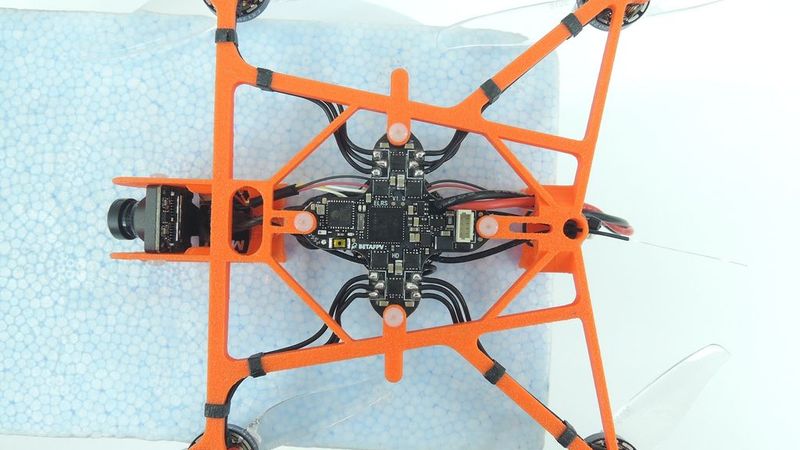

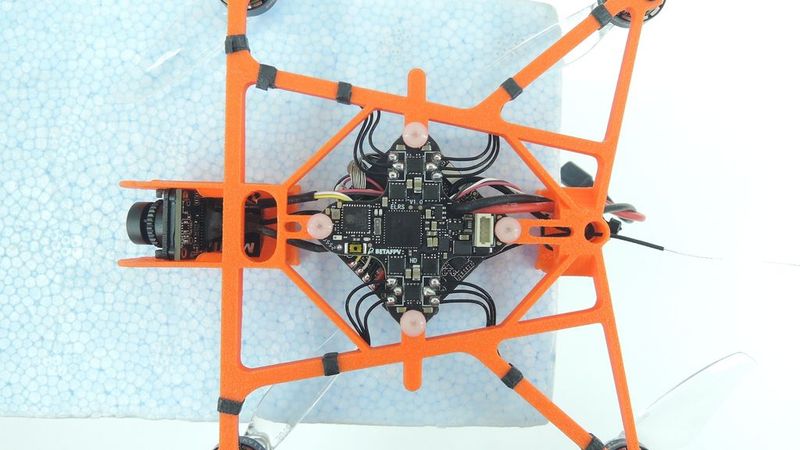

Flight controller holes: 25.5x25.5mm

GPS: FlyFishRC M10 MINI GPS

Even if the drone crashes and the frame is damaged,

you can replace the unit without soldering.
