Rear DashCam Mount for NextBase Camera on Kia EV6

Needed a rear DashCam mount (for a Nextbase dedicated rear camera) for a family members Kia EV6. I looked up several that didn't really work for me and took some inspiration from https://www.thingiverse.com/thing:6714946 but decided to do a completely new design in OpenScad so that I could easily change the angle and clip sizes.

I guessed at 10 degree base tilt and 45 degrees camera cable exit tilt (stops camera movement) and was almost correct. This one works better at 10 degrees base tilt and 50 degrees cable exit on a Kia EV6 tailgate.

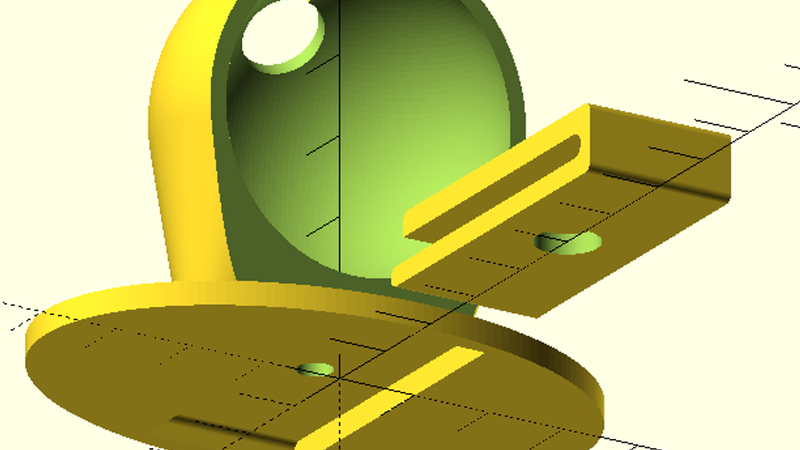

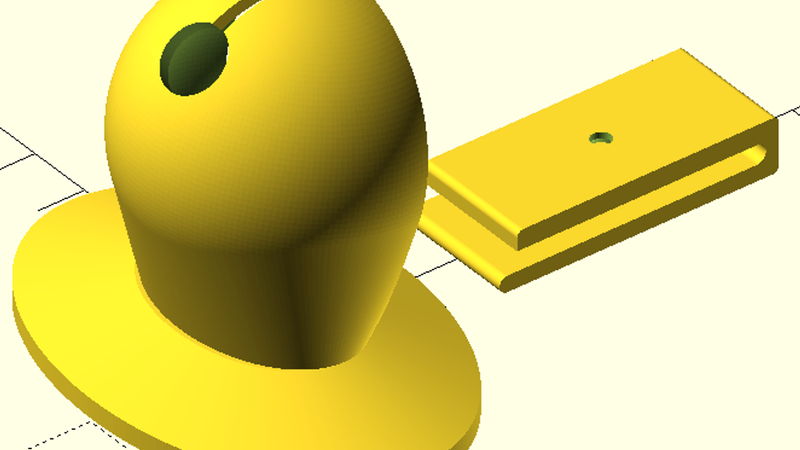

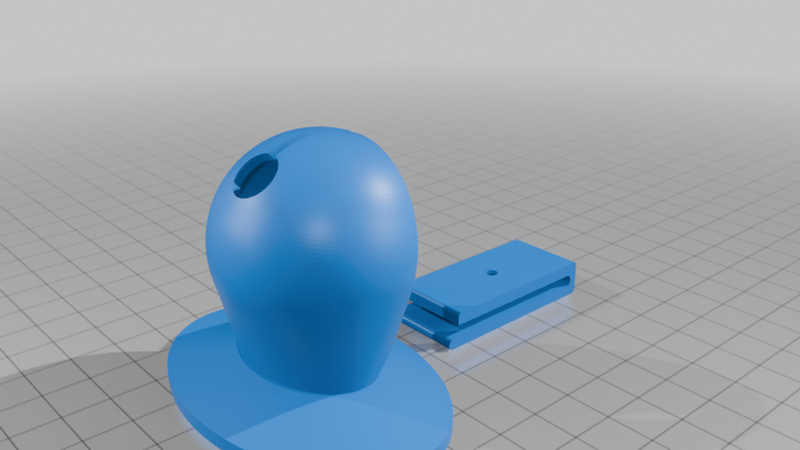

For ease of printing and for being able to change the clip to various sizes and shapes in the future I made the clip separate. It is intended that you put an M3 Heat insert onto the base of the main unit and then fasten the clip onto that with a countersunk M3 x 6mm screw.

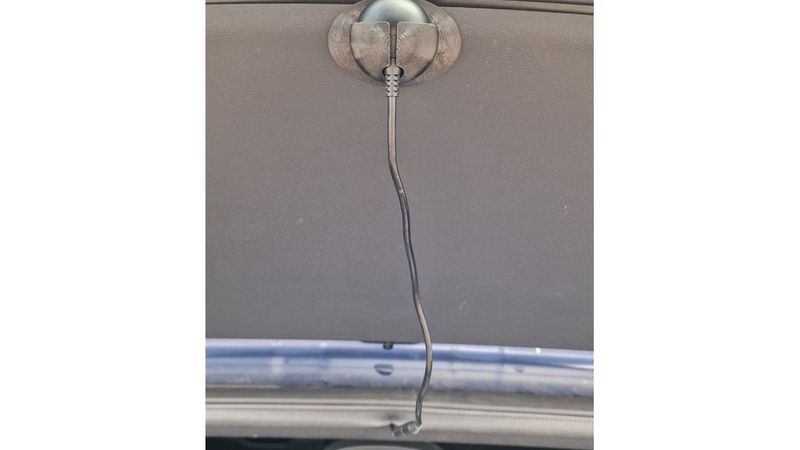

The pictures of the installation are the rough cut, I will print another with a better quality when i get the chance, time was pressing and i needed to get the car installation finished. I will also have to find a way of minimising the amount of cable hanging in the rear view mirror so I can see another design coming.
