Sony HT-MT500 | Monitor arm mount

Brand: Sony

Model: HT-MT500

Description

This is a mount to hang the soundbar on the metal rod of a monitor arm. My setup in particular has a 3cm (diameter) metal rod which is the base of the monitor arm. The soundbar hangs on there directly. However, it should offer a pretty tight fit given that it is supported from the top as well as the front,bottom and back and has a horizontal base of 13.5 cm to prevent horizontal tilt. From my own print I was able to slide it in on an angle and when I push down it clicks into place firmly.

The assembly requires M5 heated inserts, bolts and nuts. For ease of setup I did manage to make some slots for m5 nuts. However, to keep the design modular so everyone is able to adjust it to their own setup, I did not directly attach the bracket to the clamb and this needs to be installed with 3 heated inserts.

Since the soundbar does have some weight, I would not recommend printing it in PLA. PETG-CF would be my personal pick and recommendation for this project.

Print settings

Nozzle size: 0.6

Layer height: 0.3

Infill: 40%

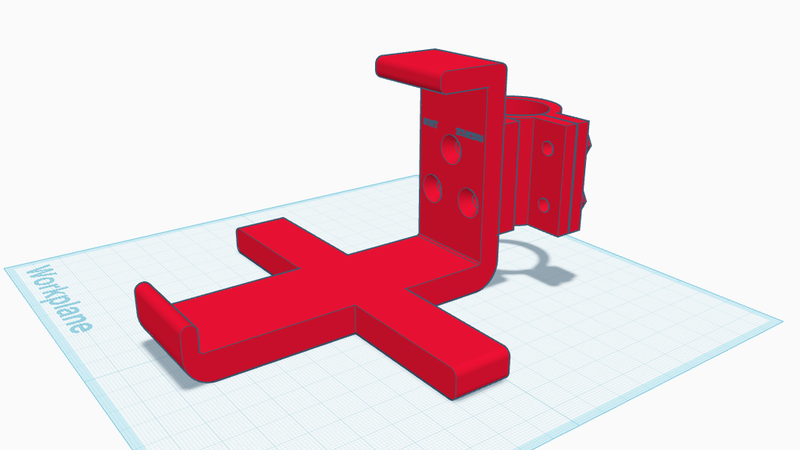

This design has been created in Tinkercad
