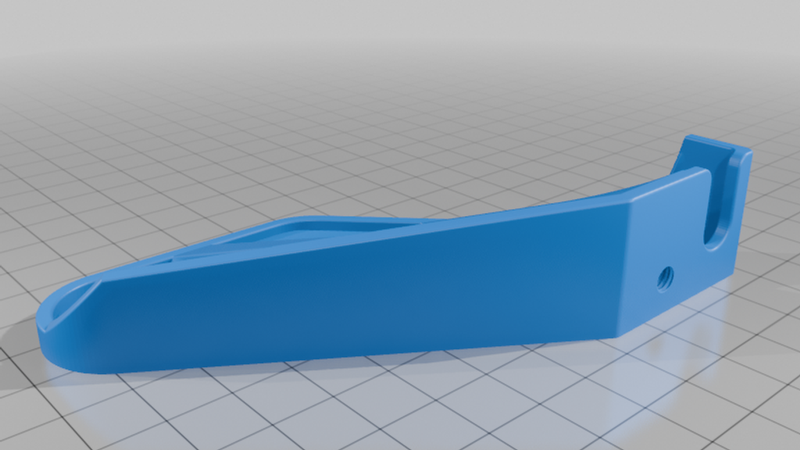

Mustang Foxbody 1986? - 1993 5.0 2.3 Throttle Bracket

yaboyhalle
2 Files
3mf, stl Formats

Description

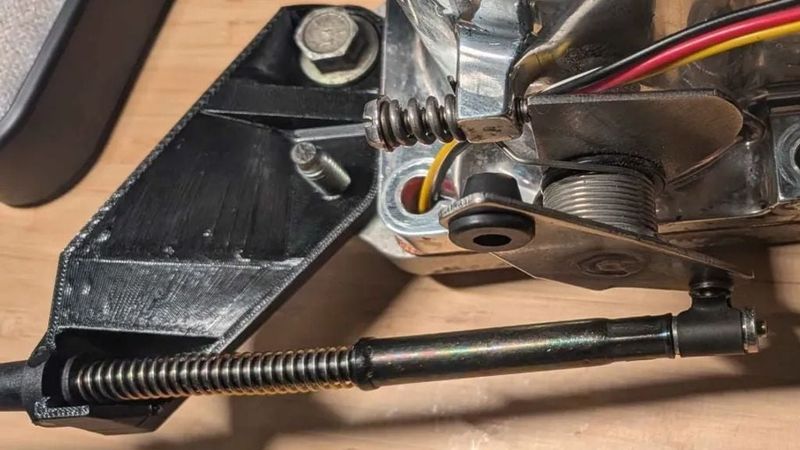

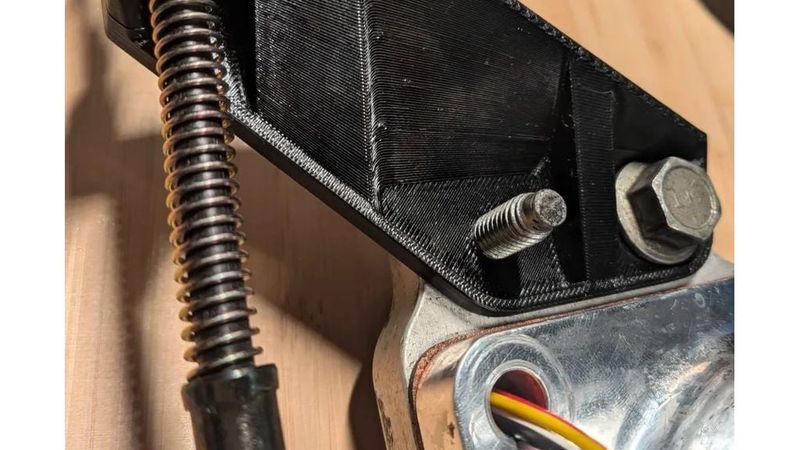

I wanted to use a minimal bracket with a shorter throttle cable for my side intake SVO with a 5.0 throttle, without extras like the AOD cable or any carb leftovers. It may not be compatible with the 1995 throttle, v6 throttles, or the actual 2.3 throttles, but i do this free, for me. Uses the stock 2 mount bolts, and an M5 by ~25mm bolt.

Use a high temp filament with enough stiffness.

Use at your own risk, probably not an emissions device.

Downloads

Throttle_Bracket.3mf
569.4 KB
Throttle_Bracket.stl
1.7 MB
