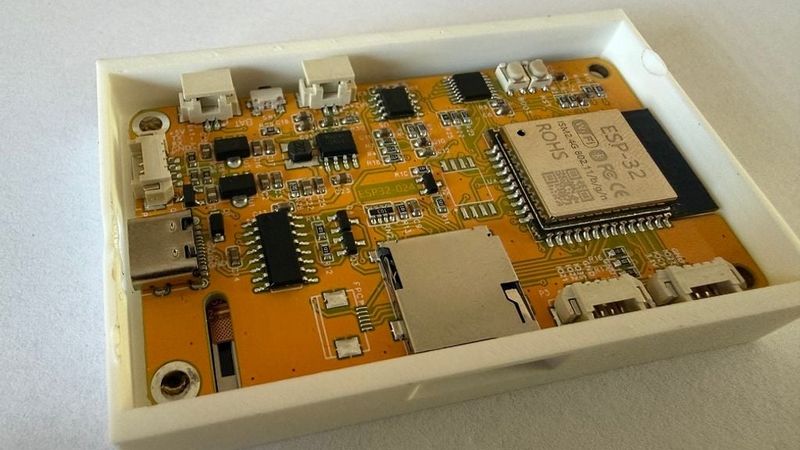

Case for 2.4" CYD ESP

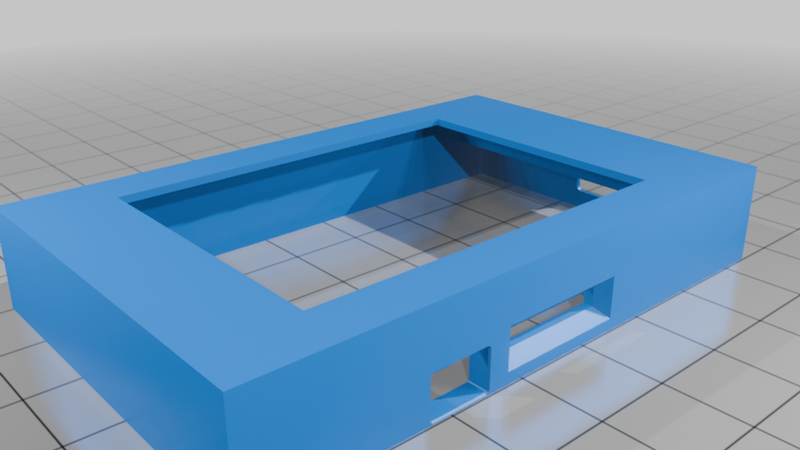

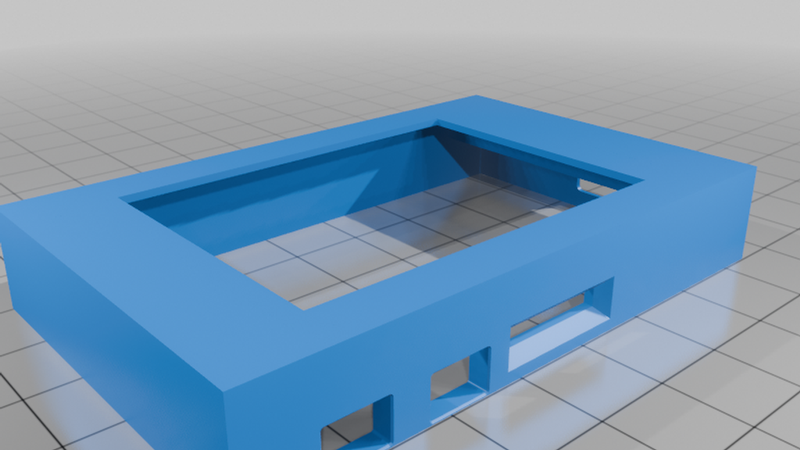

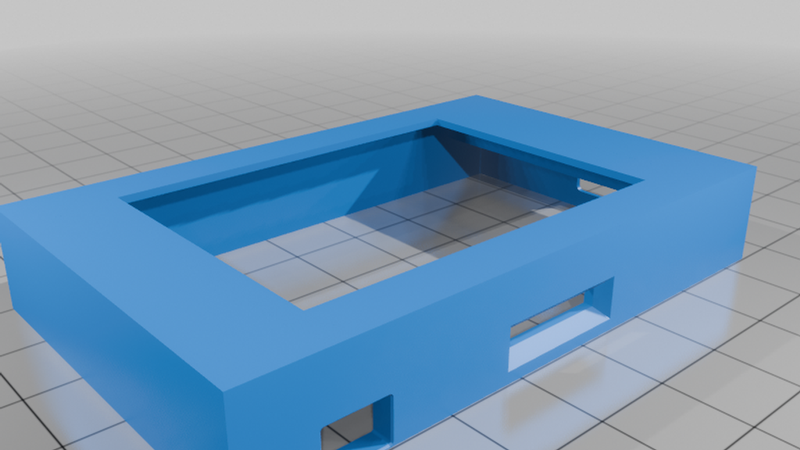

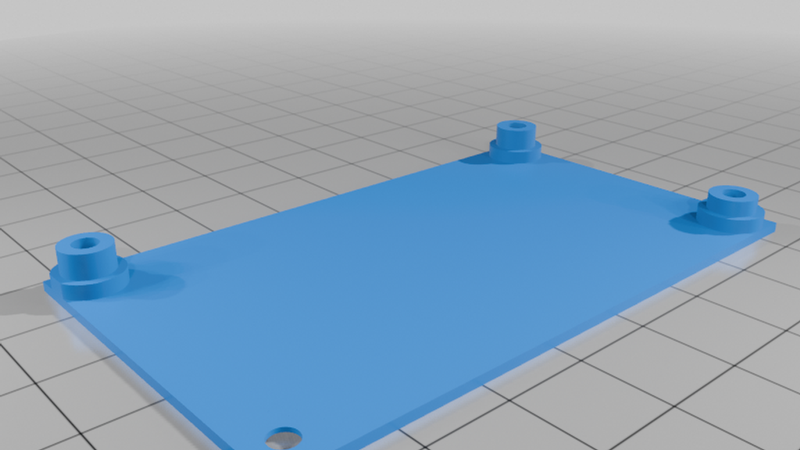

The 2.4" Cheap Yellow Display ESP (ESP32-2432S024) is slightly different in size and utilization. If you have the 2.4" version instead of the 2.8" version, you can use this enclosure. I made 4 versions, depending if you're using the C1 and/or C2 port.

For the 2.4" these are the GPIO's the hardware uses :

=============== TOUCH ===============

TOUCH_CLK_PIN 14

TOUCH_CS_PIN 33

TOUCH_DIN_PIN 13 // MOSI

TOUCH_DO_PIN 12 // MISO

TOUCH_IRQ_PIN 36

=============== DISPLAY ===============

TFT_BL 27

TFT_MISO 12

TFT_MOSI 13

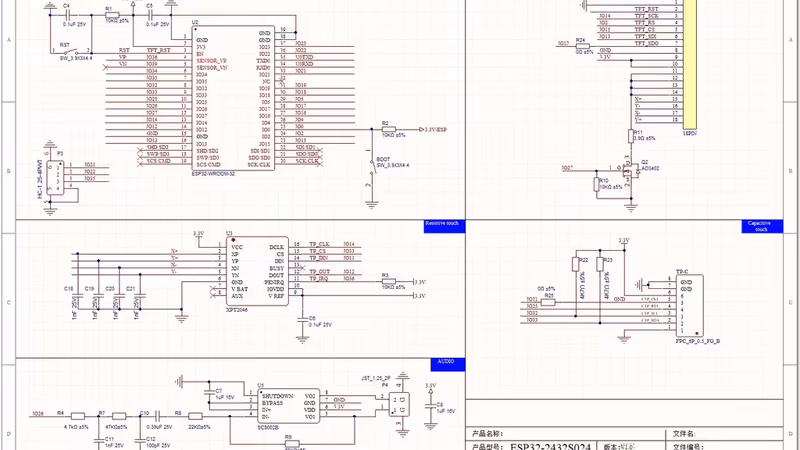

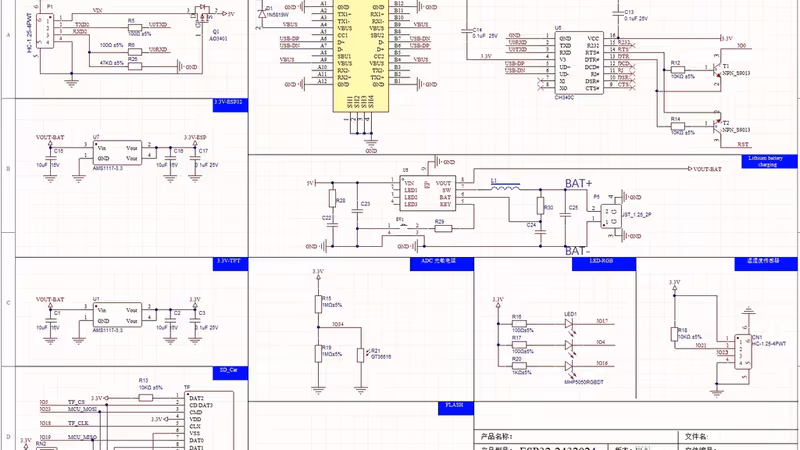

I included the schematics for this hardware.
