Adjustable camera/ webcam mount for Creality Ender 3 S1 Pro

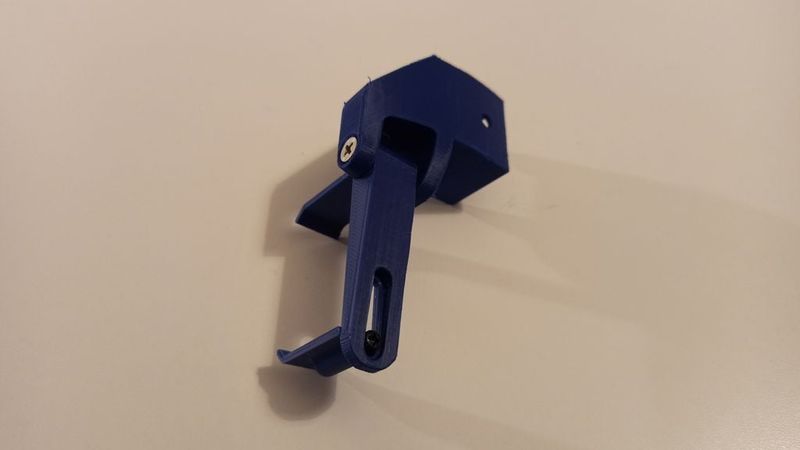

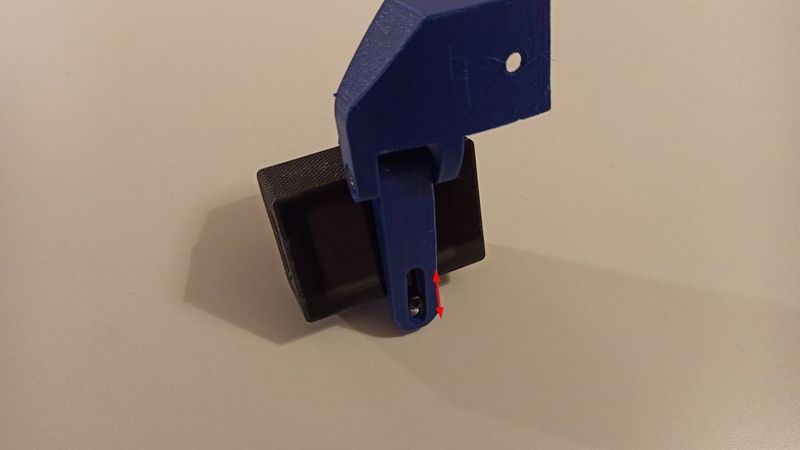

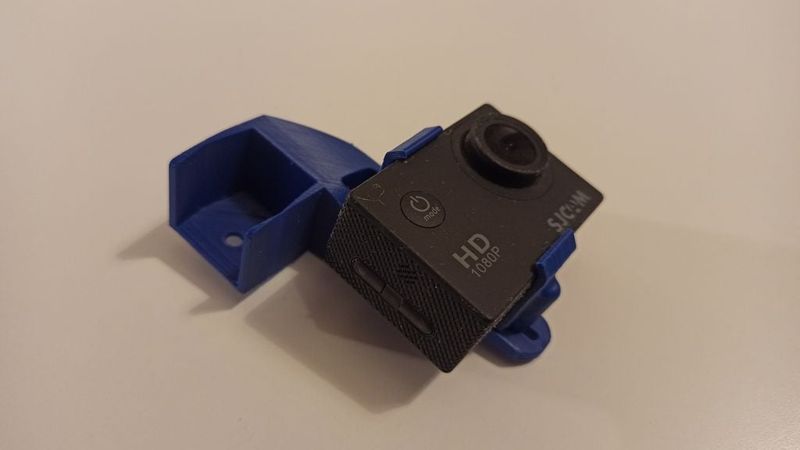

This is an adjustable camera mount for the Creality ender 3 S1 pro, for connecting with Octoprint or any other webcam application. It should also be compatible with the ender 3 S1, as both printers share the same X axis carriage design, but has not been verified though. Both the camera position and viewing angle can be adjusted. It can accommodate a web cam with a width between 30mm and 47mm.

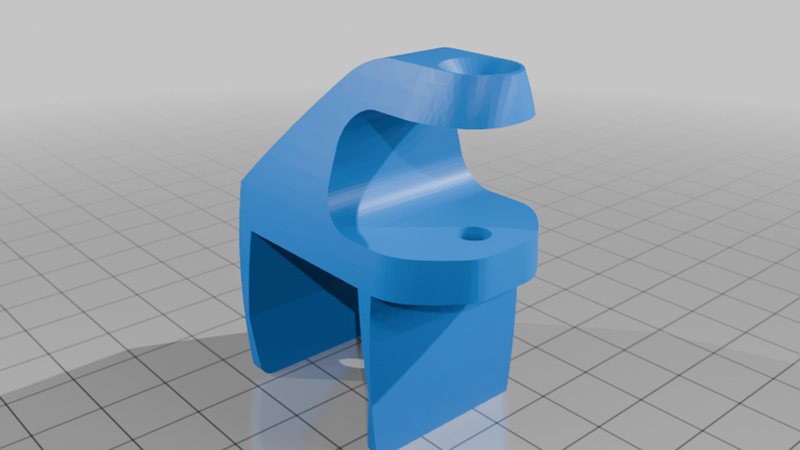

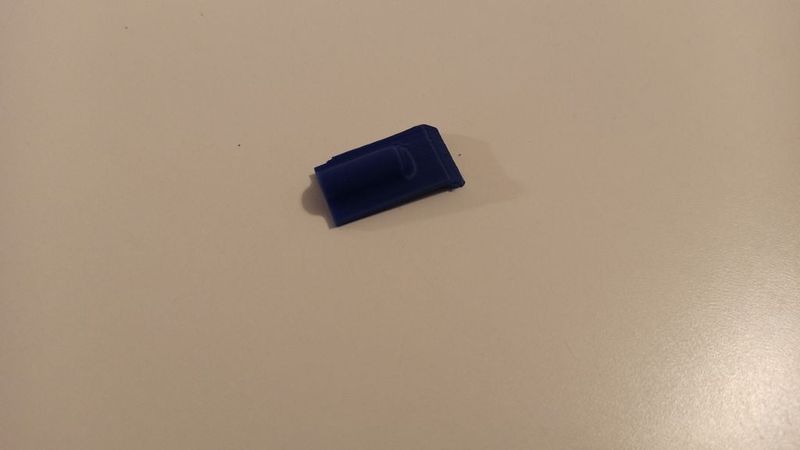

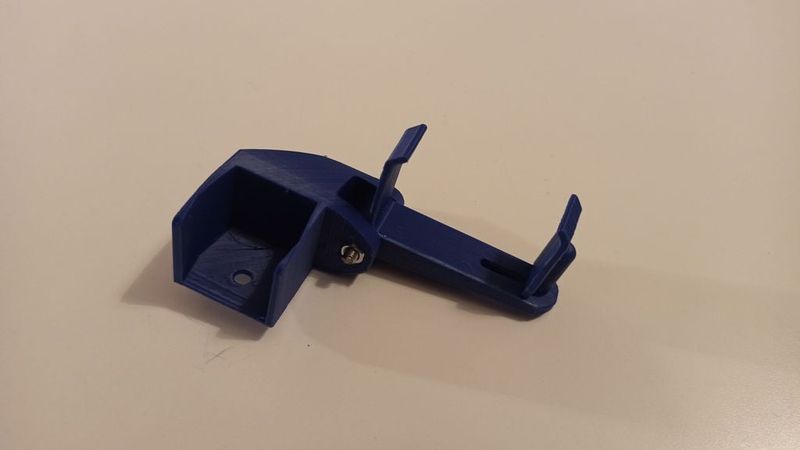

It consists of three 3D printed parts easy and intuitive to assemble with minimum hardware.

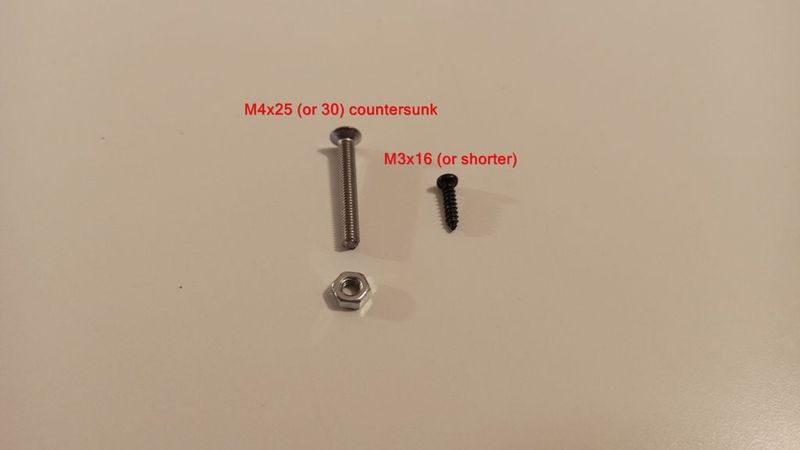

Hardware needed:

• one M4x25 or longer countersunk screw

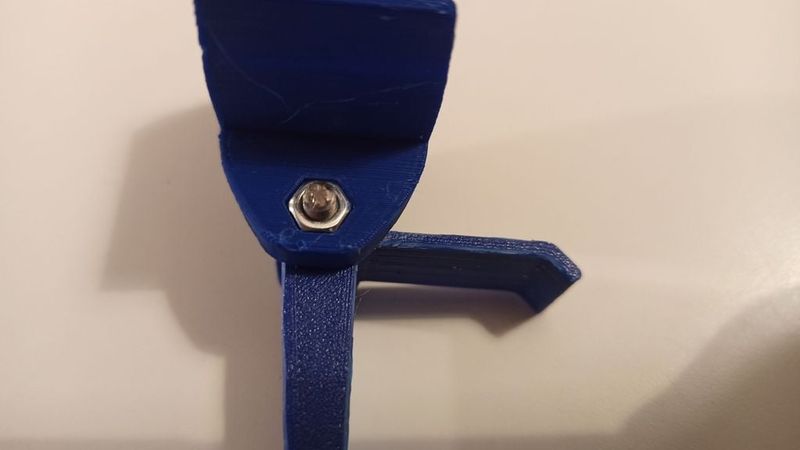

• one M4 nut
• one M3x16 or shorter screw (normal or self tapping)

To install it:

1) Completely remove the X axis belt tensioner knob from the right side of the X axis carriage.

2) Remove the plastic end cover.

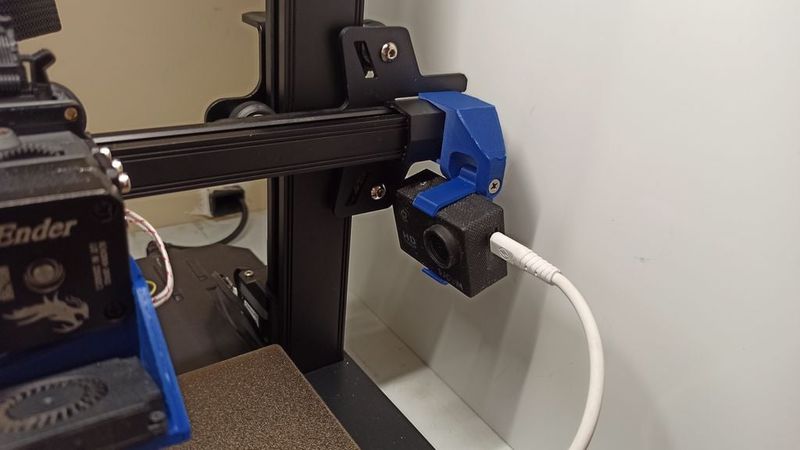

3) Position the camera mount.

4) Reinstall the belt tensioner knob to secure the mount (and apply tension on the belt), without the plastic end cover.

Printing instructions:

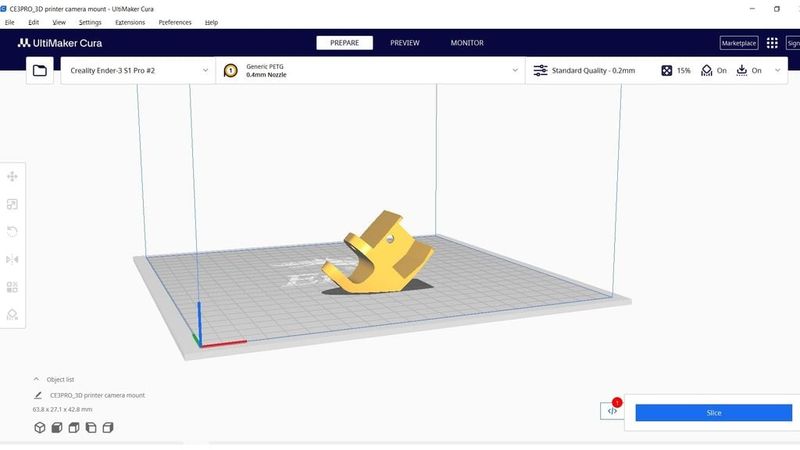

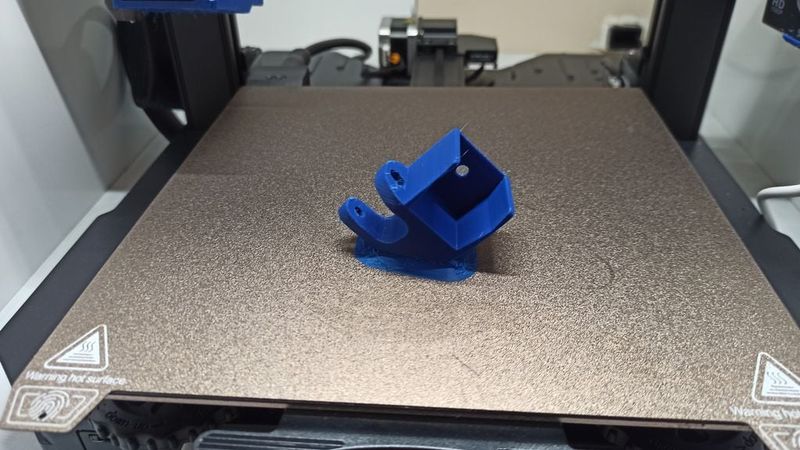

PT1: Print in an orientation as shown in the screenshot. Ideally enable support above 60°.

PT2 & 3: No special settings required.
