MLA-30+ Loop Antenna Tripod Mount Support

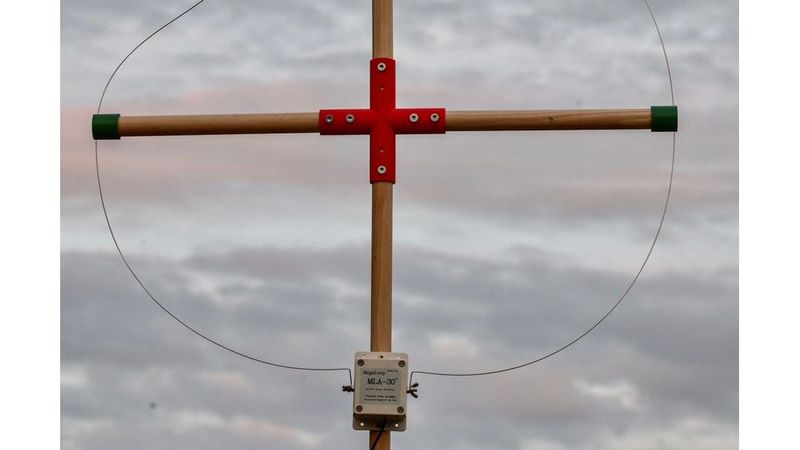

This loop antenna support is designed for mounting an MLA-30 or MLA-30+ active loop antenna on a standard camera tripod. The support can also be adapted for many other loop antennas up to approximately 1 meter in diameter, provided the dimensions are adjusted if necessary. This support works great, and I used an RTL-SDR V4 to receive WEFAX images. Assembly is very simple, use the images as reference, and have fun!

3D printed parts:

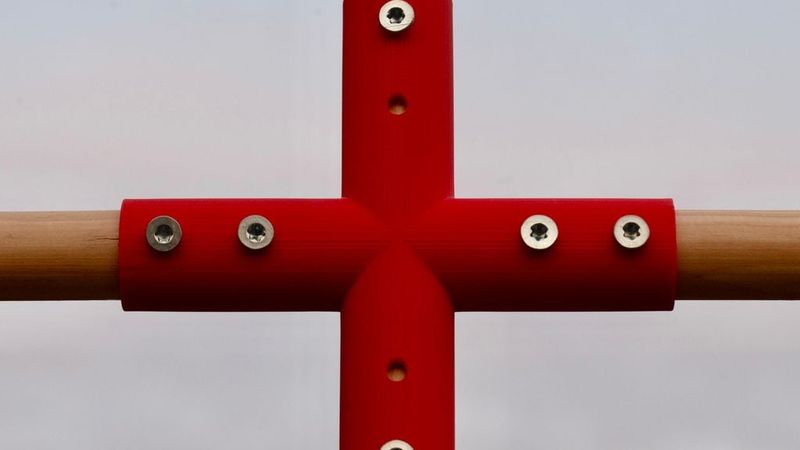

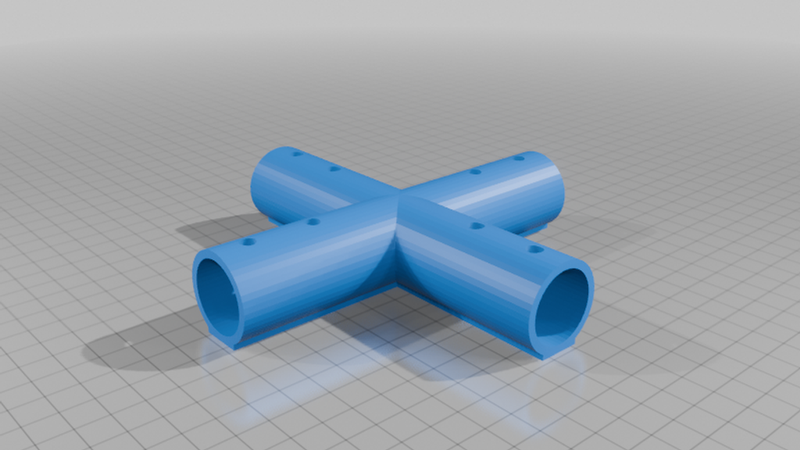

X Connector

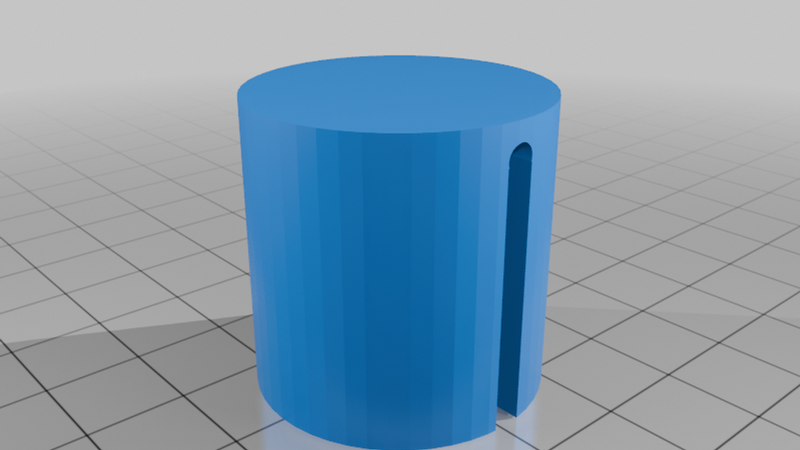

3x End Caps

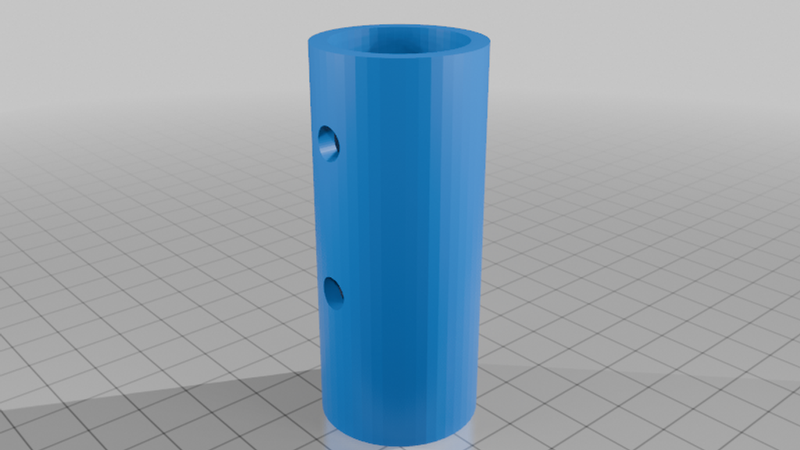

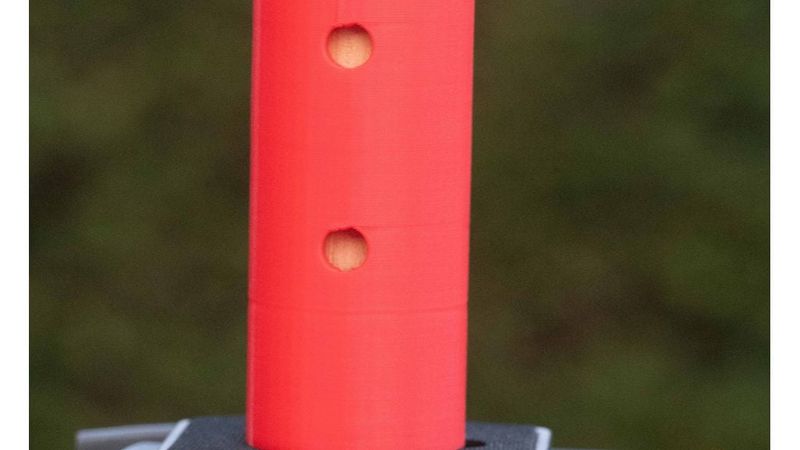

Tripod Mount

Non 3D printed parts:

1/4"-20 threaded heat insert

Small wood screws, approximately 20 mm long with a maximum diameter of 6 mm

Wooden broom handle, 140 cm long, 23.5 mm diameter

Soldering iron (for heat inserts)

Recommended Print Settings:

Printer: Bambu Lab P1S

Infill: 35% Gyroid

Wall (perimeters): 3

Filament: Generic PLA
