Heavy-Duty Swivel Joint / Mounting Pin Replacement for Boom Arms & Lamps

Heavy-Duty Swivel Joint / Mounting Pin Replacement for Boom Arms & Lamps

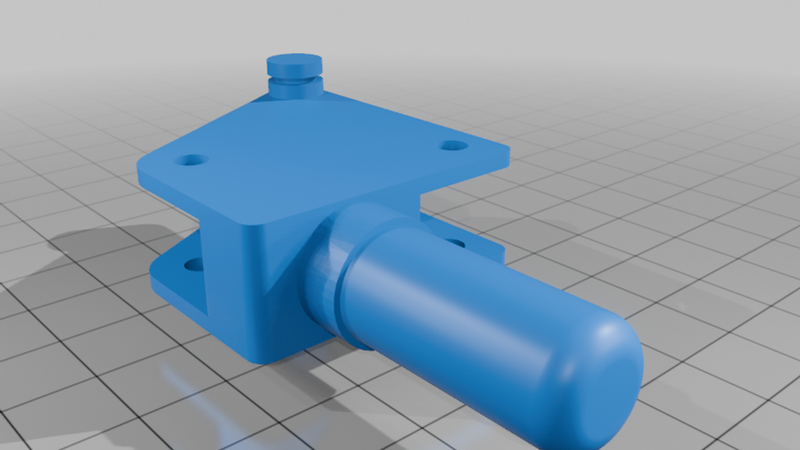

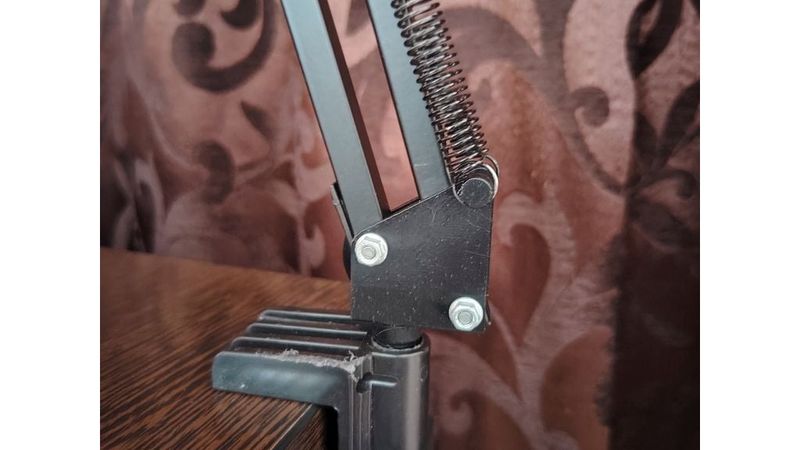

A rugged, structurally reinforced replacement swivel joint and mounting pin mechanism engineered for standard suspension arms. This universal part is designed to replace the fragile factory-made zinc alloy (pot metal) or plastic pivot brackets that connect the arm's parallel springs/tubes to the desk clamp. The original stock joints easily crack or bend under the continuous leverage and tension of the internal springs.

It is a perfect drop-in repair solution for both microphone boom scissor arms (Fifine, Thronmax, etc.) and classic drafting/architectural adjustable desk lamps. Fits for Fifine (T669, AmpliGame A8/A9, K688), Thronmax, Razer Seiren, Logitech Compass and standard Ikea desk lamps.

🔑 Key Features & Universal Application:

• 🎙️ Microphone Boom Arms: Fits standard budget and mid-range microphone pantographs (like Fifine) that use a 12mm / 12.5mm lower mounting pin layout.

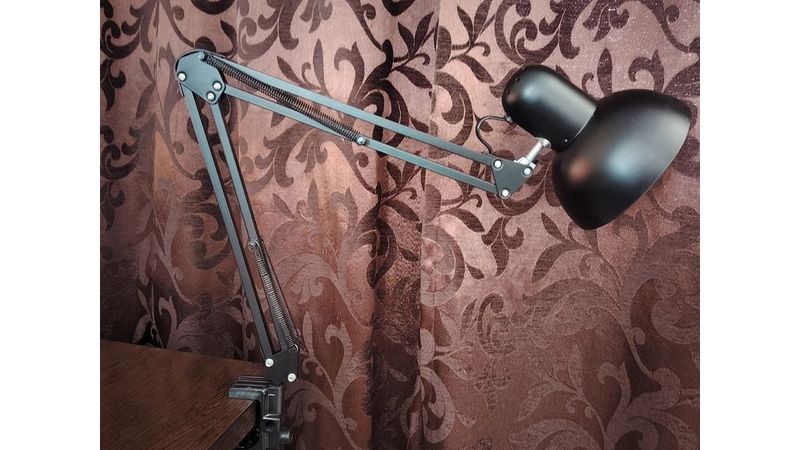

• 💡 Desk & Drafting Lamps: Perfect for adjustable cantilever desk lamps, restoring smooth 360-degree rotation without wobbling.
• Dual-Bolt Reinforcement: Features precision-molded recessed holes for the main structural bolts to distribute clamping friction evenly.
• Anti-Shear Design: Engineered with an optimized internal grain path when printed correctly, preventing the lower pin from shearing off under heavy loads.

🔧 Hardware Required for Assembly:

• 2x Original bolts and nuts (salvaged from your broken stock arm pivot mechanism).

🛠️ Software & Source Files Included:

• `.STL` (Ready for slicing and printing)

🖨️ Print Recommendations:

• Material: PETG, ABS, or ASA.

⚠️ Crucial Note: Strictly avoid using standard PLA. The constant tension from the arm's springs will cause PLA to warp, creep, and snap along the layer lines. PETG or ABS offers the mandatory impact resistance and toughness for mechanical pivot points.

• Infill: 50% - 80% for high structural integrity. Use strong structural patterns like Gyroid, Cubic, or 3D Honeycomb.
• Walls / Perimeters: 5 to 6 perimeters. Thick walls are critical to prevent the bolts from compressing or splitting the plastic frame.
• Top/Bottom Layers: 5 solid layers.
• Orientation: Print lying flat on its side. This ensures that the continuous layers run along the length of the lower pin, providing maximum shear resistance against bending forces.

🔥 UPGRADE TO MAX RIGIDITY: Ultra-Strong PRO Version with Steel Core Reinforcement!

Need absolute reliability, a premium look, and resistance to extreme loads? A standard all-plastic pin can shear off if a heavy microphone or lamp setup is pulled too hard. For creators who refuse to compromise, I have engineered a deeply upgraded and reinforced PRO Version.

What makes the PRO Version a must-have:

• 🔩 Steel Bolt Reinforcement: Features a hidden internal channel designed for a standard metal bolt (M6х35) to run straight through the axis. The plastic will never snap on shear forces again — the steel core absorbs all the leverage stress!
• 🦾 Handles Extreme Weights: Easily supports heavy studio microphone setups (with heavy shock mounts and pop filters), oversized cantilever boom arms, and industrial drafting/architectural lamps. Structural strength is boosted by 5x!
• ✨ Sleek, Premium Aesthetics: The outer geometry has been completely redesigned. The joint looks clean, professional, and blends seamlessly with your premium desk setup without looking like a cheap DIY replacement.
• 📐 Full CAD Source Package: Includes original high-fidelity .STEP and parametric .M3D (KOMPAS-3D) source files, making it effortless to customize dimensions or pin clearances for your specific gear.

Forget about fragile pot-metal (zinc alloy) and standard plastic failure points forever. Click the link below to download the ultimate engineering solution on Cults3D:

👉https://cults3d.com/ru/3d-model/dom/heavy-duty-swivel-joint-mounting-pin-replacement-for-boom-arms-lamps-pro
