Anti-vibration FPV Cam tilt mechanism

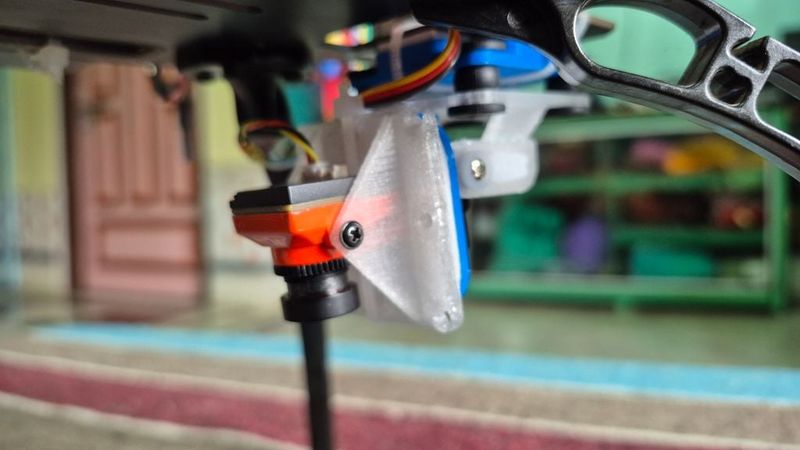

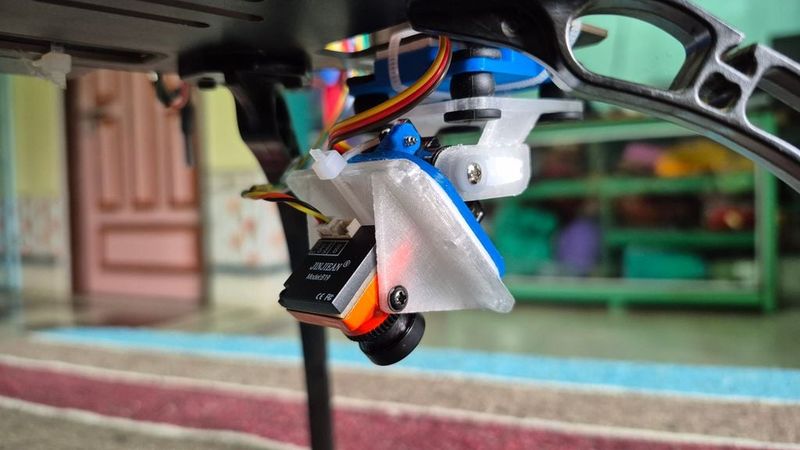

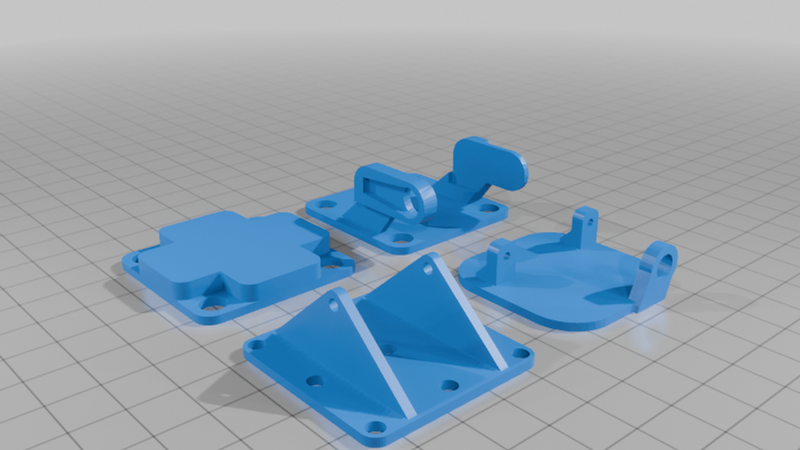

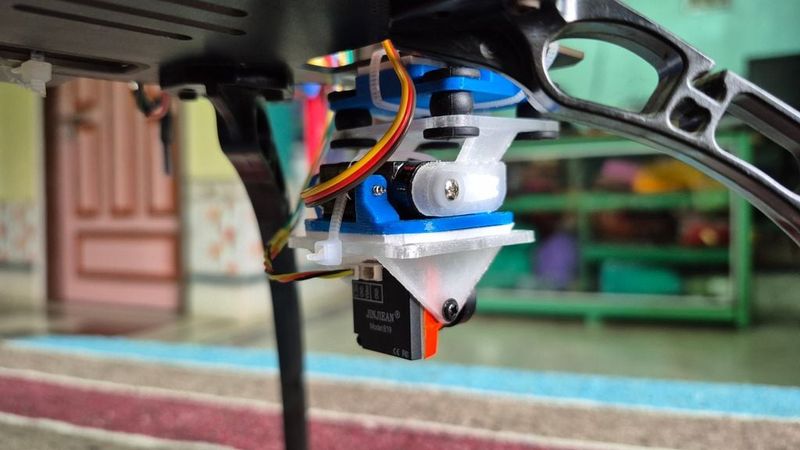

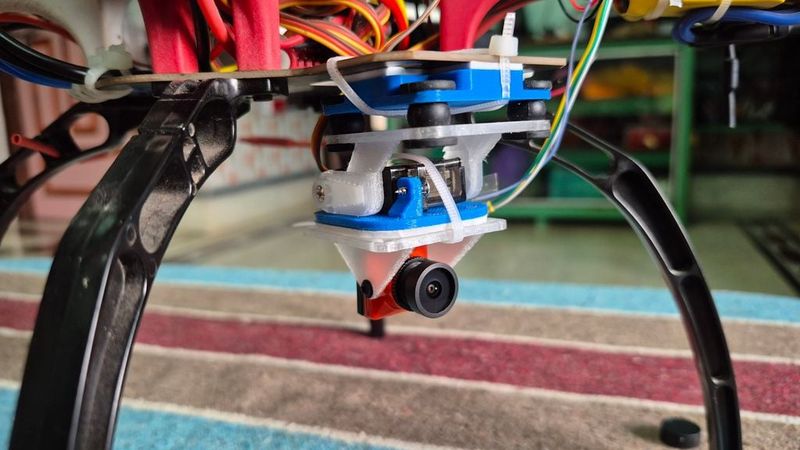

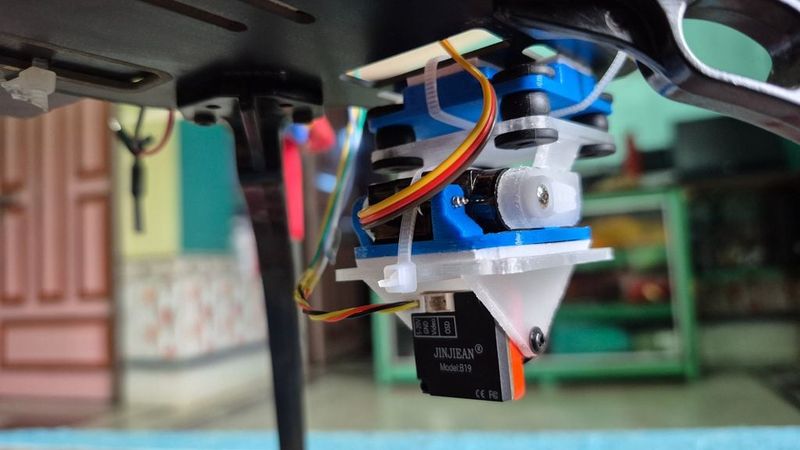

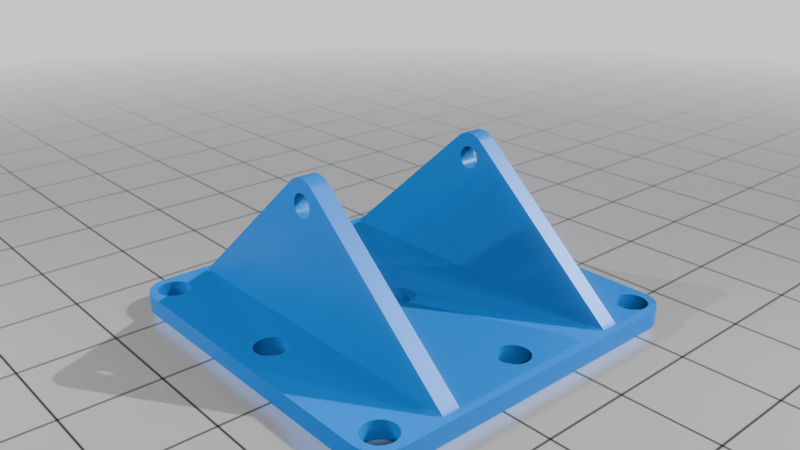

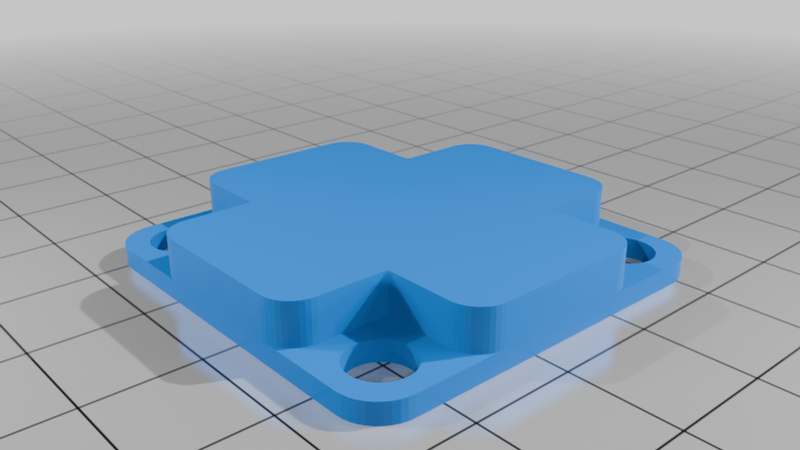

This is a compact anti-vibration FPV camera tilt mechanism that I designed for my F450 quadcopter. The mount is lightweight, simple to print, and easy to assemble.

One of the best features of this design is that it requires no screws for assembly. The printed parts are designed to fit together, making installation quick and hassle-free.

Features

Lightweight and compact design

No screws required for assembly

Built-in anti-vibration mechanism for smoother FPV footage

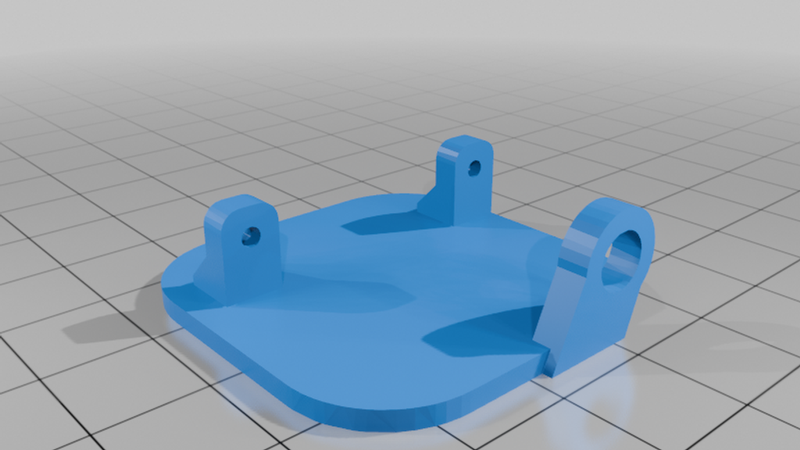

Servo-controlled camera tilt

Easy to print and assemble

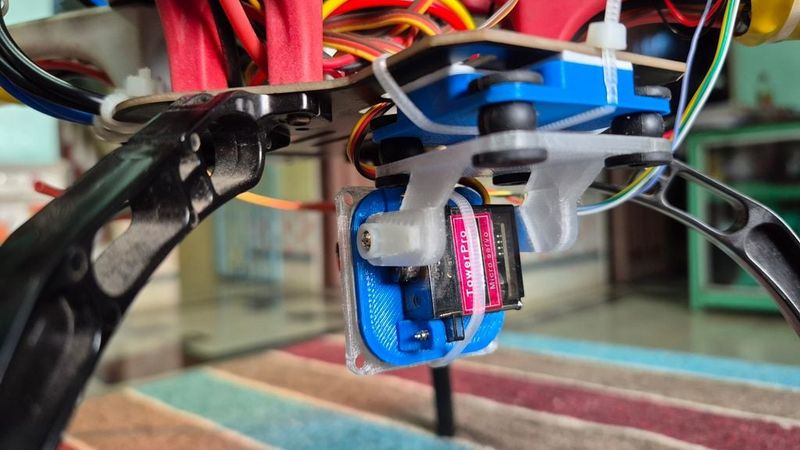

Compatible Servos

The design supports standard 9 g micro servos, including:

SG90

MG90S (recommended)

I personally recommend the MG90S because its metal gears provide better durability, improved stability, and more precise camera control.

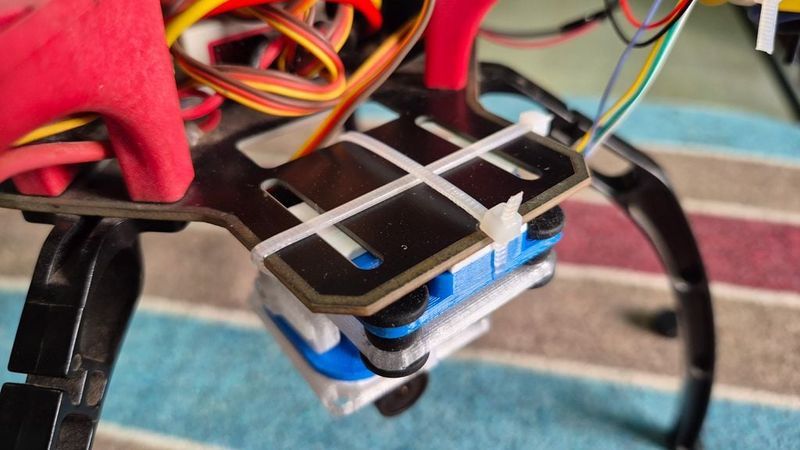

Vibration Dampers

This mechanism uses standard RC rubber vibration dampers (anti-vibration balls) to isolate the camera from motor and frame vibrations. These dampers are commonly used for mounting flight controllers and gimbals, making them inexpensive and easy to find at almost any RC hobby store or online marketplace.

Assembly & Demonstration

If you'd like to see the assembly process, how the anti-vibration system works, and the complete demonstration, check out the full video on my YouTube channel.

If you print this model, I'd love to see your build! Feel free to post a Make, share your feedback, or suggest improvements. Happy flying! 🚁
