GeoShake T1 — Enclosure for a DIY / open source seismometer
Description
This is the production enclosure for the GeoShake T1, a home seismic
monitoring station that detects P-waves and streams ground motion to an
open seismic network.

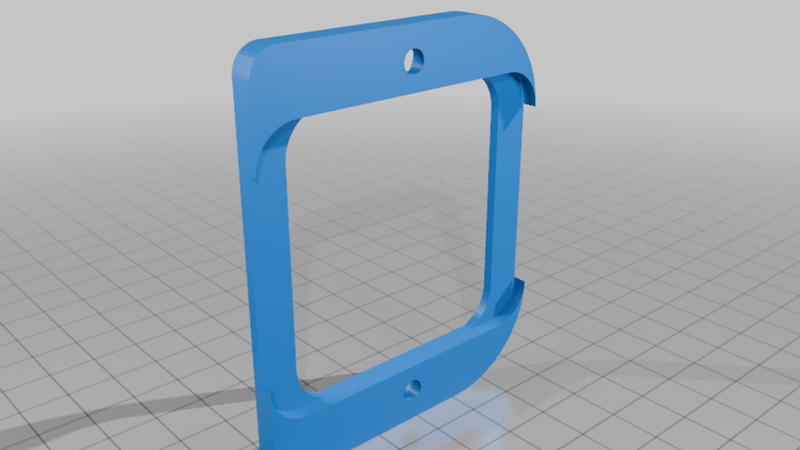

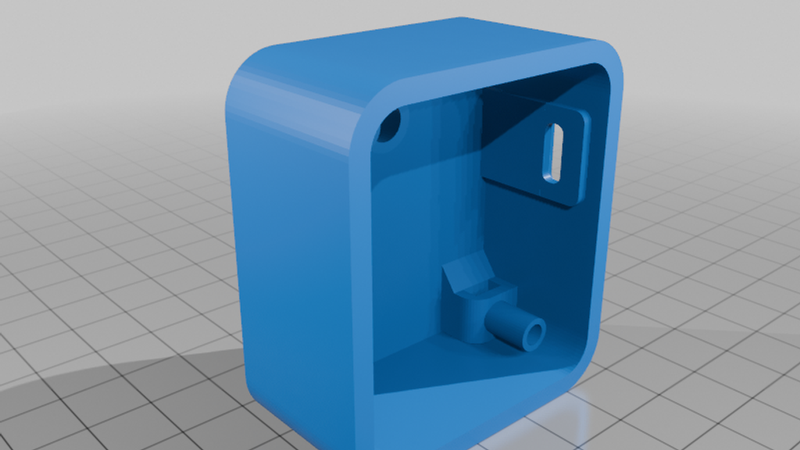

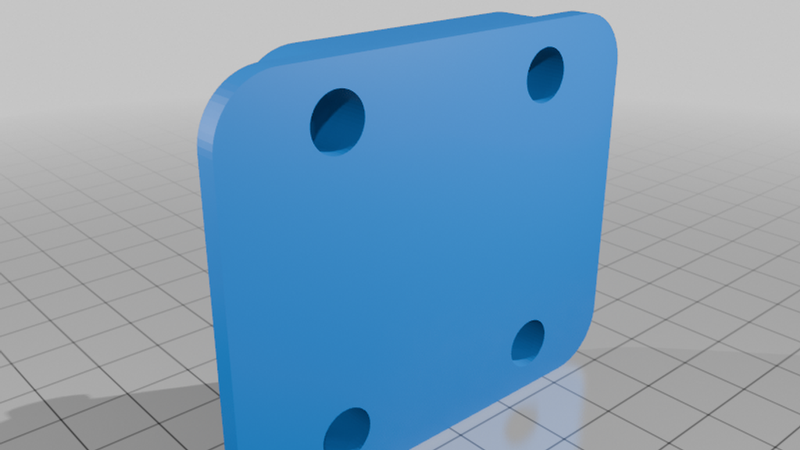

Three parts: top shell, base, and a wall bracket.
PRINT SETTINGS
- Material: PETG (indoor) or ASA (outdoor / UV exposure)
- Infill: 25%
- Supports: not required — all three parts print support-free
- Layer height: 0.2 mm, 3 walls works well
HARDWARE
- 2x M3 heat-set insert
- 2x M3 nut
- 2x M3 x 15 mm screw
- 2x M3 x 25 mm screw
- M4 screws for wall mounting (not included)
MOUNTING MATTERS
Use the wall bracket rather than free-standing placement. A station resting
loosely on a shelf records the furniture, not the ground.
WHAT'S INSIDE
The firmware is open source (GPL-3.0) and so is the signal-processing
reference it's locked to — you can audit exactly how the earthquake
detection works: https://github.com/GeoShake/geoshake
The editable Fusion 360 source is in the repo too, not just the meshes.
Assembly Guide: https://github.com/GeoShake/geoshake/tree/main/hardware/enclosure/docs
The PCB design is proprietary, so this is an enclosure release, not a full
open-hardware device. Ready-made units: https://geoshake.org
