Telescope Phone Mount

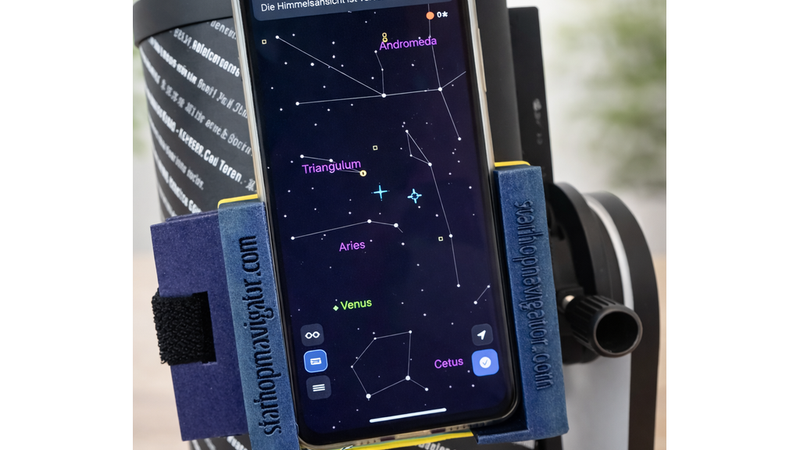

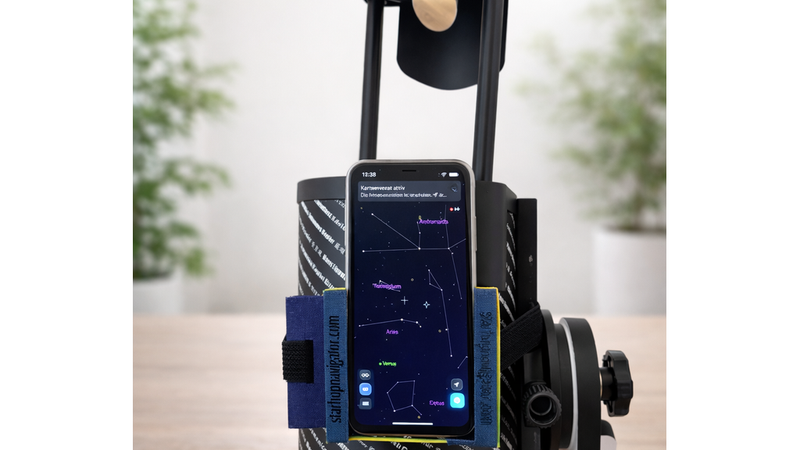

A simple phone mount for telescopes designed for Push-To astronomy apps.

Print Settings

Layer height: 0.20 mm

Nozzle: 0.4 mm

Material: PLA

Infill: 15% Grid

Walls: 2

Top layers: 5

Bottom layers: 3

Supports: Enabled

Assembly

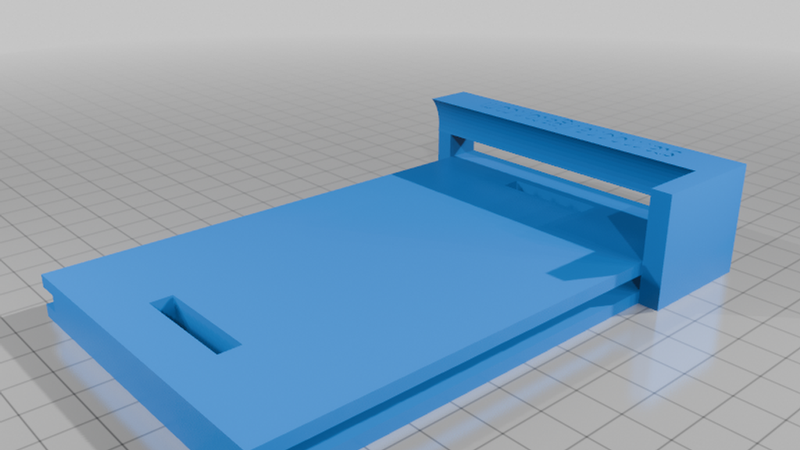

Print both parts.

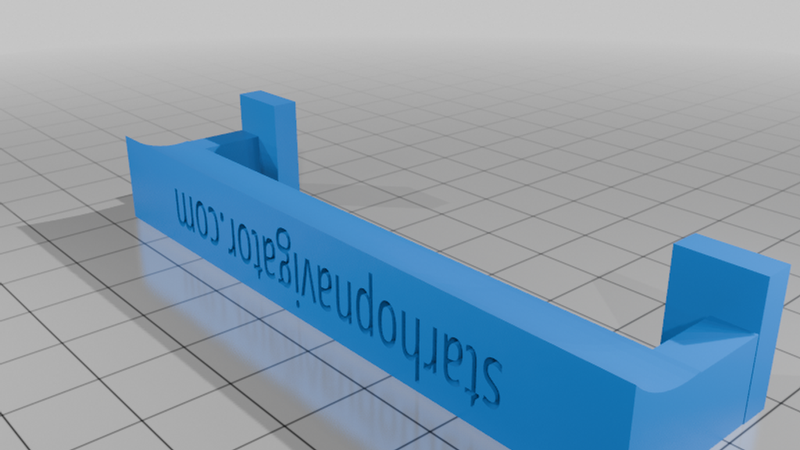

Slide the clamp bar onto the guide rail. The fit is intentionally tight and will loosen slightly after a few uses.

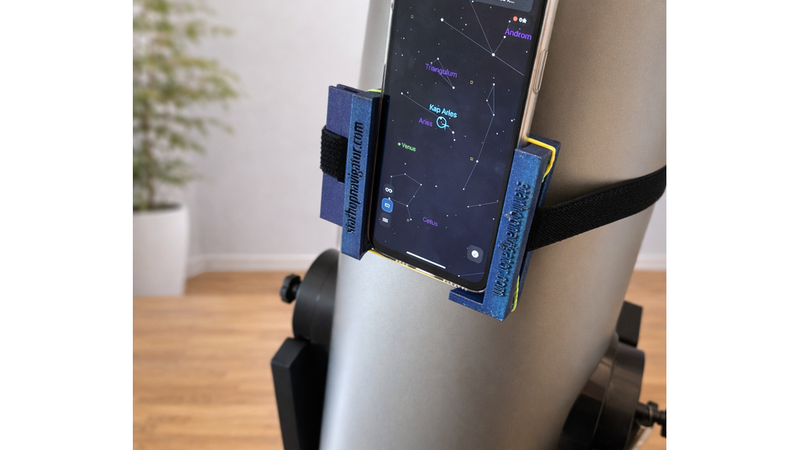

Insert the phone and secure it with elastic bands.

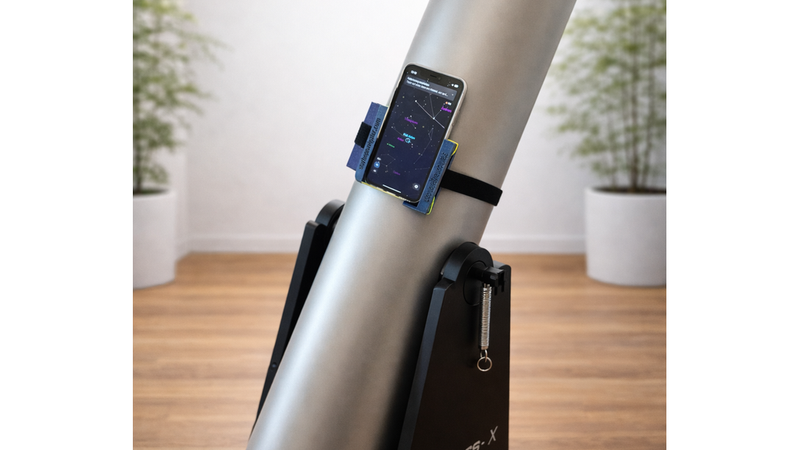

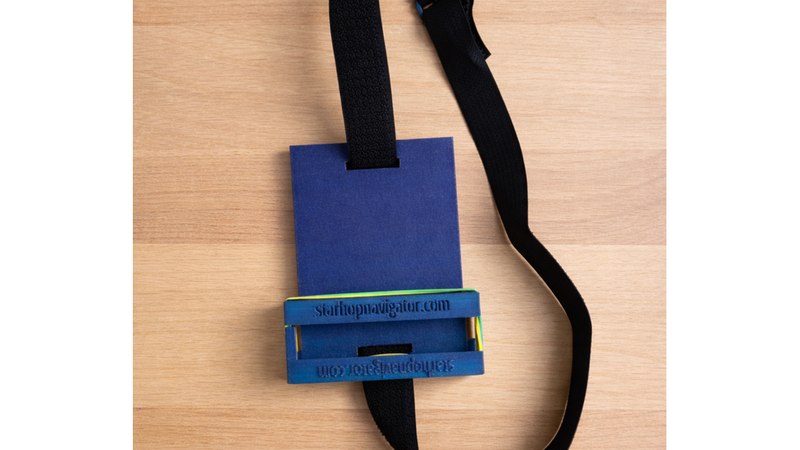

Thread a hook-and-loop strap through the slots and attach the mount to the telescope.
