Raspberry Pi mount on Ender 5 Printer

RF x Averse

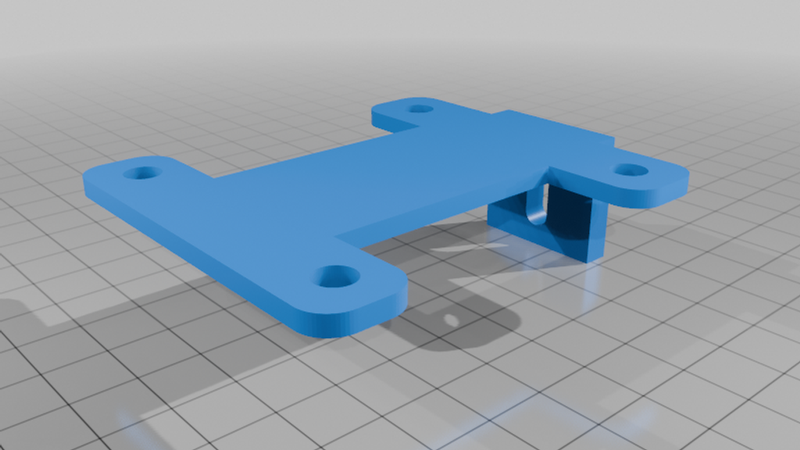

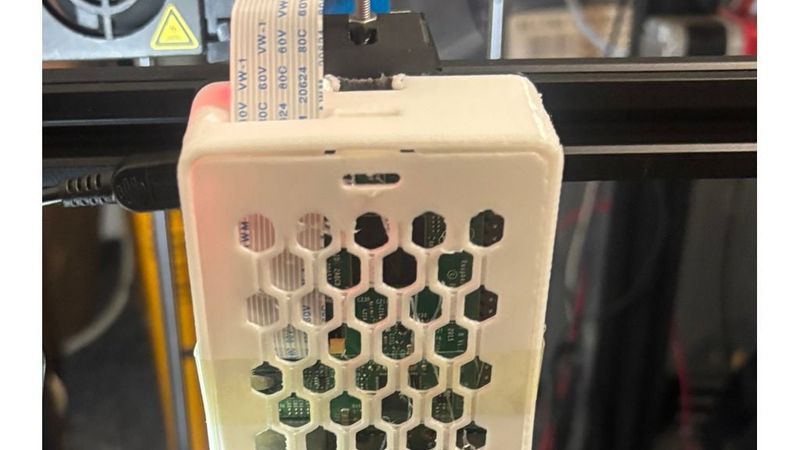

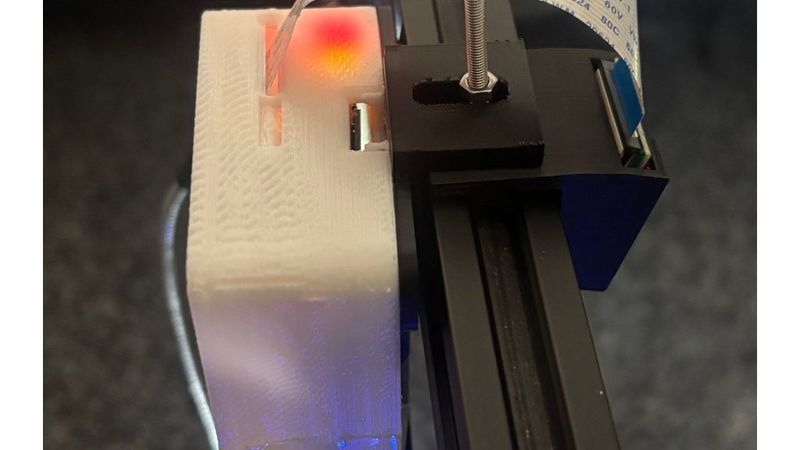

This is a modification for RaspPi 3 case (https://www.printables.com/model/24942-raspberry-pi-34-b-case) to mount the case directly onto the frame of the printer. It also connects the Clip-On Raspberry Pi Camera Mount (https://www.printables.com/model/275920-grungys-clip-on-raspberry-pi-camera-mount-ender-35) model using the same bolt. This was utilised to run Octoprint on the printer and to clean up the setup.

Hardware needed:

M3 bolt to connect the holder onto the frame

M2 bolt x 4 to hold the Pi case, Raspberry Pi and the mount together.

Optional: glue or tape to mount the Pi case and the mount together if you decide not to use the M2 bolts.

Printing instructions:

Mount printed flat on the bed with the foot pointing up; use 20% infill with the foot having 90% infill for rigidity. Brim/support is not necessary. This can be adjusted in Prusa Slicer software.
