Wall-Mounted Cable Standoff Bracket with Zip-Tie Mounts

Wall-Mounted Cable Standoff Bracket (Zip-Tie Compatible)

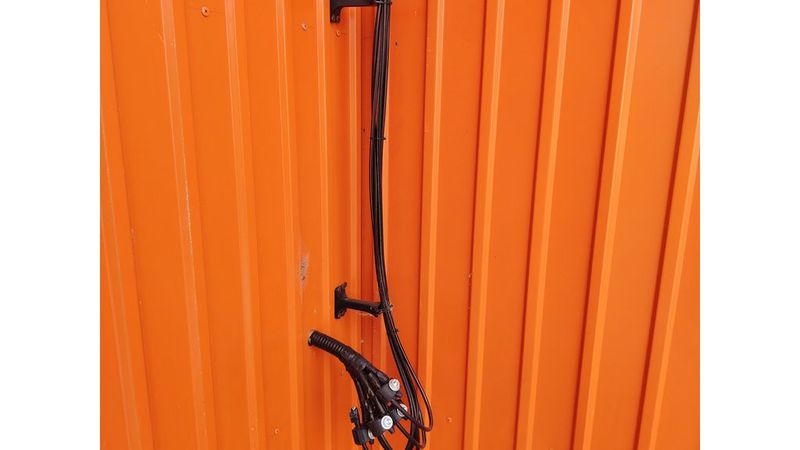

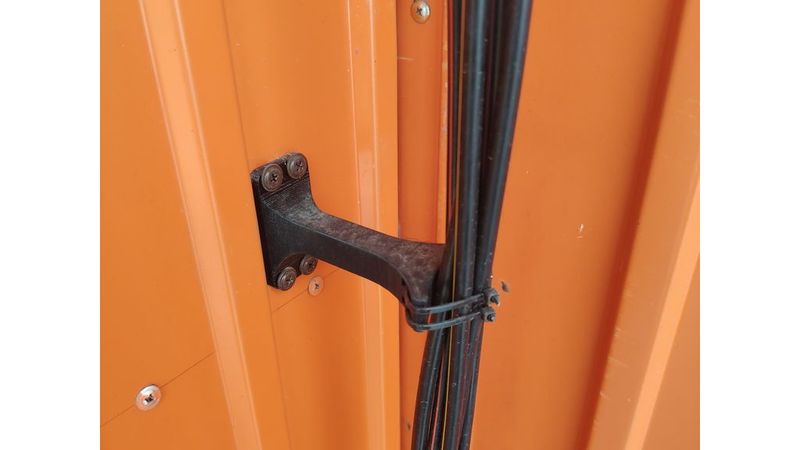

A sturdy wall-mounted standoff bracket designed for clean and organized cable management. It keeps wire bundles suspended away from the wall or panel surface, making it ideal for routing cables along walls, metal panels, or equipment enclosures.

Features:

• Off-the-wall distance: Keeps cables raised for easy routing, protection, or neat aesthetics.
• Zip-Tie Slots: Features two channels for standard cable ties (zip ties) to securely lock wire bundles in place.
• Strong Wall Mount: Base with 4 mounting holes for solid screw installation.
• Universal Use: Perfect for outdoor wiring, garage/workshop cable management, CNC machines, or server setups.

Print Recommendations:

• Material: PETG or ABS (recommended for outdoor/tough environments) or PLA for basic indoor use.
• Infill: 20% - 30% (Grid or Gyroid for added strength).
• Walls/Perimeters: 3 to 4 walls for better rigidity.
• Supports: Not required

Soft:

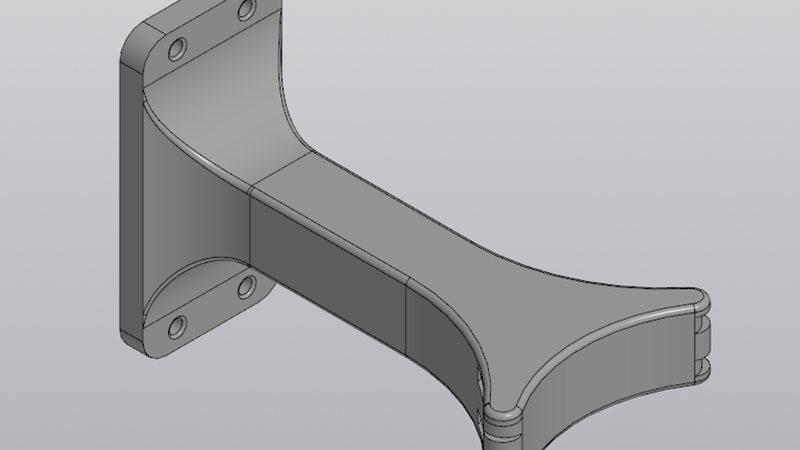

• Original CAD source files created in KOMPAS-3D (.m3d) and STEP214 are included for easy editing and customization.
