Waveshare ESP32-S3 1.46" Round LCDDesktop Radar & Flight Tracker Case

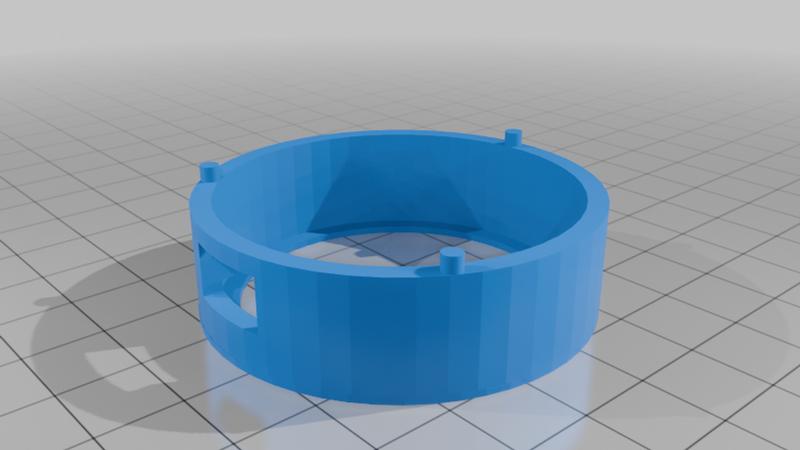

A custom-designed 3D printable desktop enclosure for the Waveshare ESP32-S3-Touch-LCD-1.46 (1.43-inch 412x412 Round AMOLED display).

This case is specifically tailored to house the ESP32-S3 microcontroller and display module for running the Real-Time ADS-B Airspace Radar & Flight Tracking Monitor.

Project Features

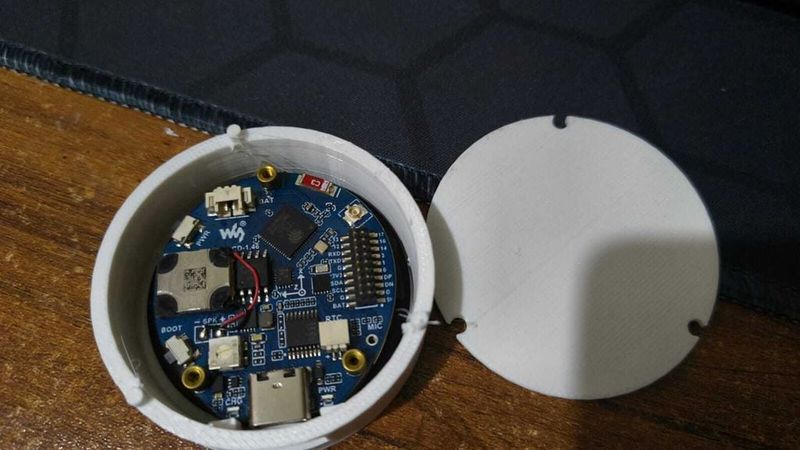

* Fits the Waveshare ESP32-S3-Touch-LCD-1.46 board perfectly with precise screen cutout.

* Built-in USB-C cable access port for continuous desktop power.

* Passive thermal ventilation slots for cool long-term operation.

* Sleek circular bezel frame highlighting the round AMOLED screen.

Software & Source Code (GitHub)

This enclosure is designed for the open-source ESP32-S3 ADS-B Airspace Radar Monitor project.

* GitHub Repository: https://github.com/BasicPanther/esp32-adsb-airspace-radar

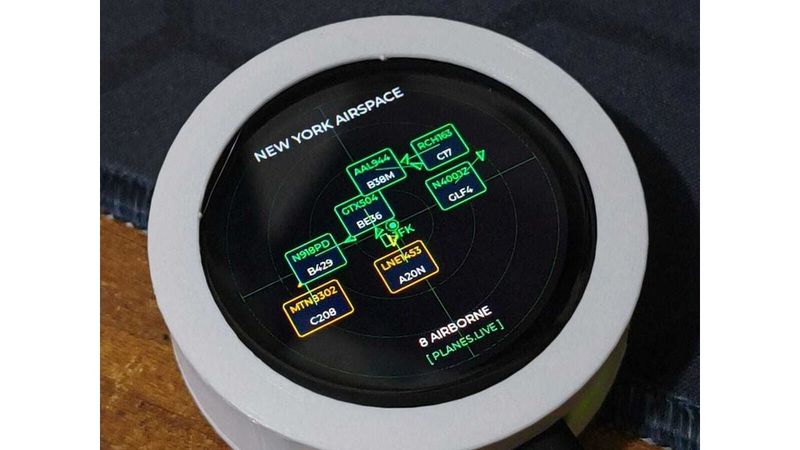

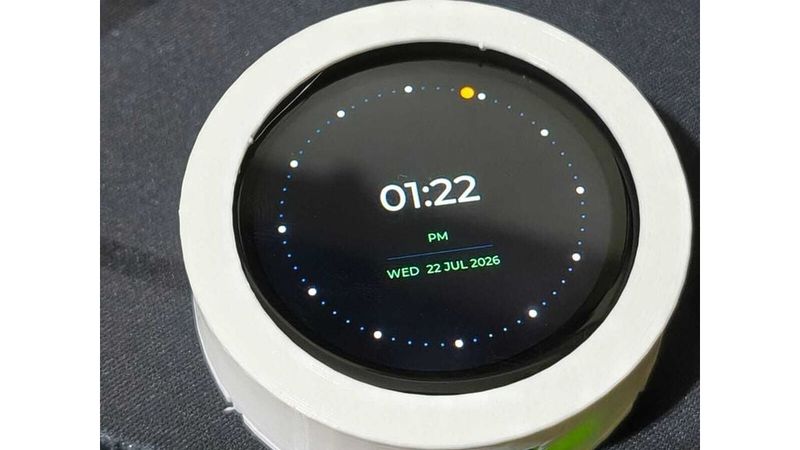

* Features: Live aircraft radar scope, commercial flight telemetry, departure/arrival cards, digital clock, interactive web setup map, and zero-code Wi-Fi provisioning.

Hardware Link

* Waveshare ESP32-S3 1.46" Touch LCD Store: https://www.waveshare.com/esp32-s3-touch-lcd-1.46.htm

Recommended Print Settings

* Layer Height: 0.16mm - 0.20mm

* Infill: 15% - 20% (Gyroid / Grid)

* Supports: None / Minimal (depending on orientation)

* Material: PLA / PETG / ABS

* Walls/Perimeters: 3
